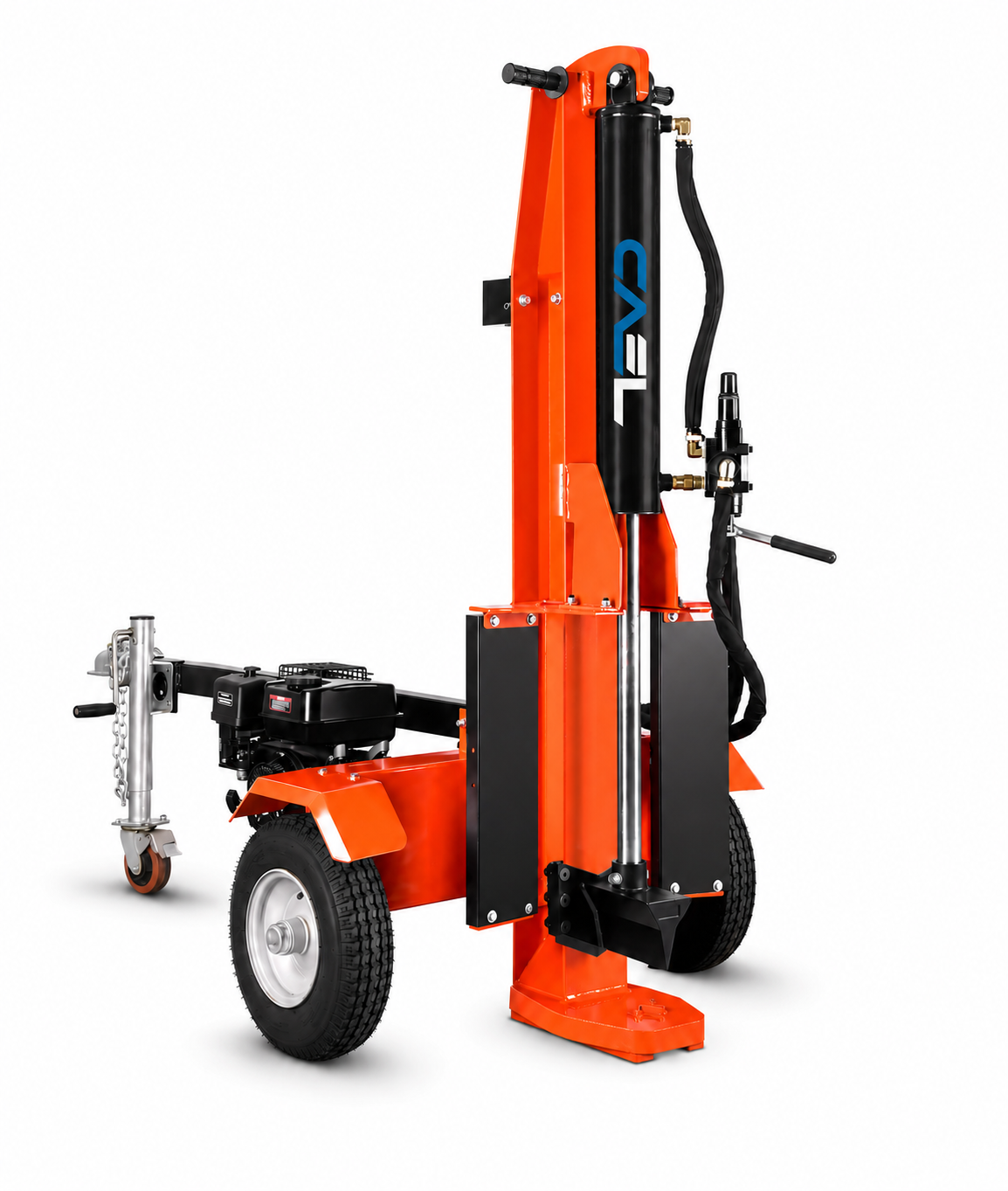

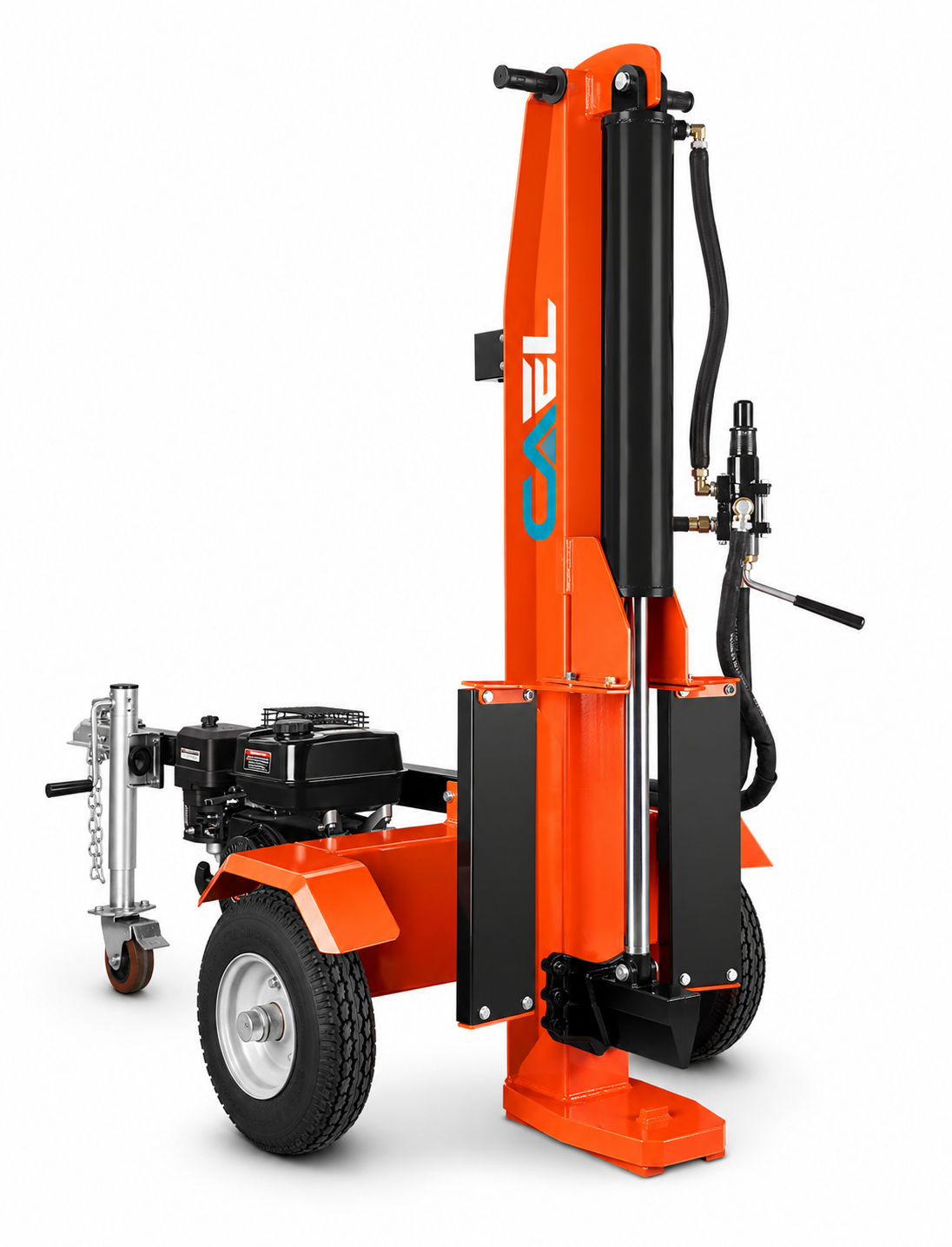

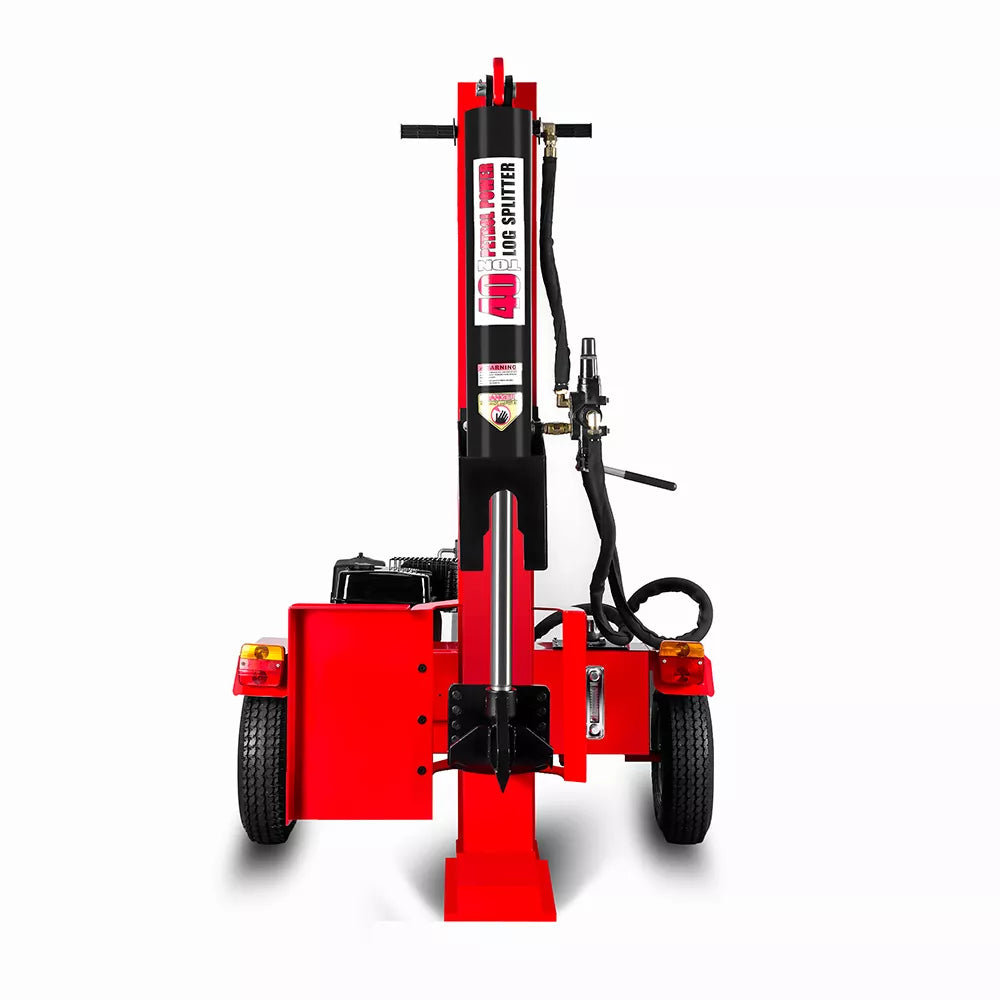

The CAEL-GL-40T is a heavy-duty towable hydraulic log splitter designed for commercial firewood production, forestry operations, farms, and large property owners. With a powerful 40-ton splitting force, it can handle large-diameter hardwood logs with ease.
Key Specifications
|
Specification |
Details |
|
Model |
CAEL-GL-40T |
|
Type |
Hydraulic Log Splitter |
|
Splitting Force |
40 Tons |
|
Engine |
15 HP, 420cc 4-Stroke Gasoline Engine(RATO or B&S Engine) |
|
Hydraulic System |
Yes |
|
Hydraulic Pump |
16 Gallon Two-Stage Pump |
|
Hydraulic Valve |
100L, 21MPa Auto-Return Valve |
|
Cylinder |
5 in Hydraulic Cylinder |
|
Cycle Time |
24 Seconds |
|
Maximum Log Diameter |
Up to 600 mm (23.6 in) |
|
Splitting Length / Travel |
610 mm (24 in) |
|
Beam Size |
150 × 175 mm |
|
Tires |
16×6.5-8 or 16×4.8-8 |
|
Weight |
Approx. 310–330 kg (683–728 lbs) |
|

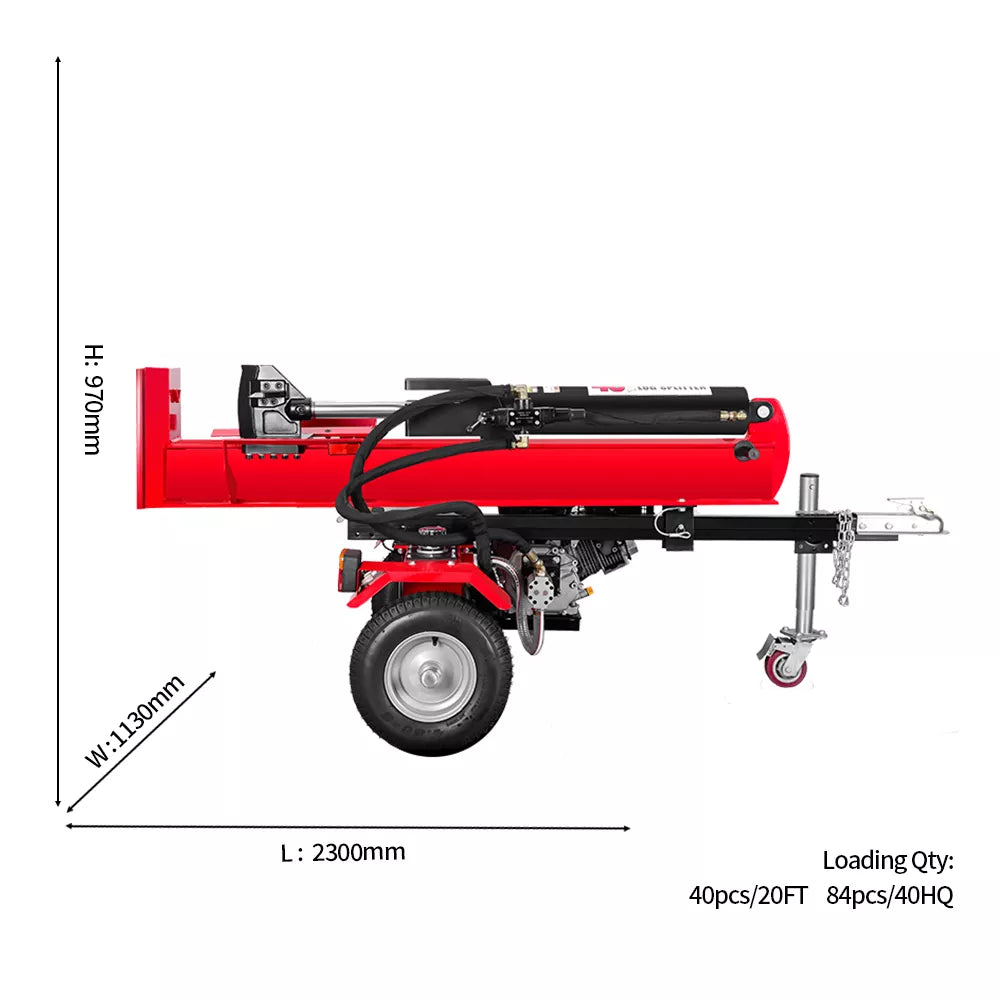

Machine Dimensions |
2300 × 1130 × 970 mm (90.6 × 44.5 × 38.2 in) |
|
Towable |
Yes |
Main Features
Heavy-Duty 40-Ton Splitting Force
-
Designed for large hardwood logs and commercial firewood processing.
-
Suitable for oak, maple, elm, and other dense woods.
-
Handles oversized rounds with minimal effort.
Powerful Hydraulic System
-
16-gallon two-stage hydraulic pump delivers high productivity.
-
Auto-return control valve speeds up operation and reduces operator fatigue.
-
Reliable hydraulic performance under heavy loads.
Commercial-Grade Construction
-
Reinforced 150 × 175 mm steel beam.
-
Heavy-duty frame built for long service life.
-
Designed for continuous use in demanding environments.
Towable Design
-
Equipped with transport tires.
-
Easy to move around farms, woodlots, and job sites.
-
Suitable for ATV, tractor, or vehicle towing.
Capacity & Performance
|
Performance Item |
|
|
Splitting Force |
40 Tons |
|
Log Length Capacity |
24 in (610 mm) |
|
Log Diameter Capacity |
Up to 23.6 in (600 mm) |
|
Cycle Time |
24 Seconds |
|
Commercial Use |
Yes |
|
Farm Use |
Yes |
|
Firewood Production |
Yes |
Recommended Applications
-
Commercial firewood operations
-
Forestry contractors
-
Farms and ranches
-
Acreage owners
-
Wood processing businesses
-
Large-scale residential firewood production
