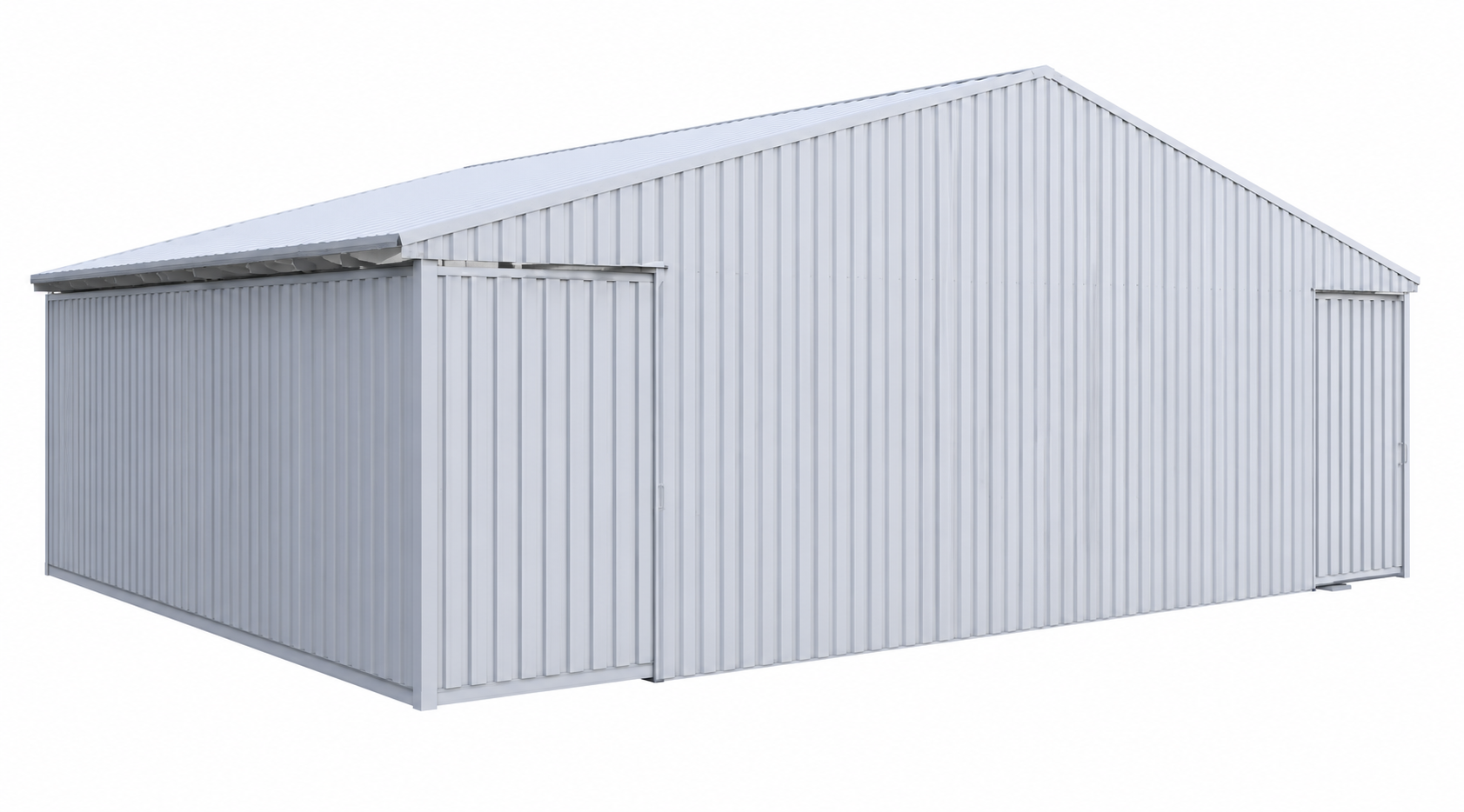

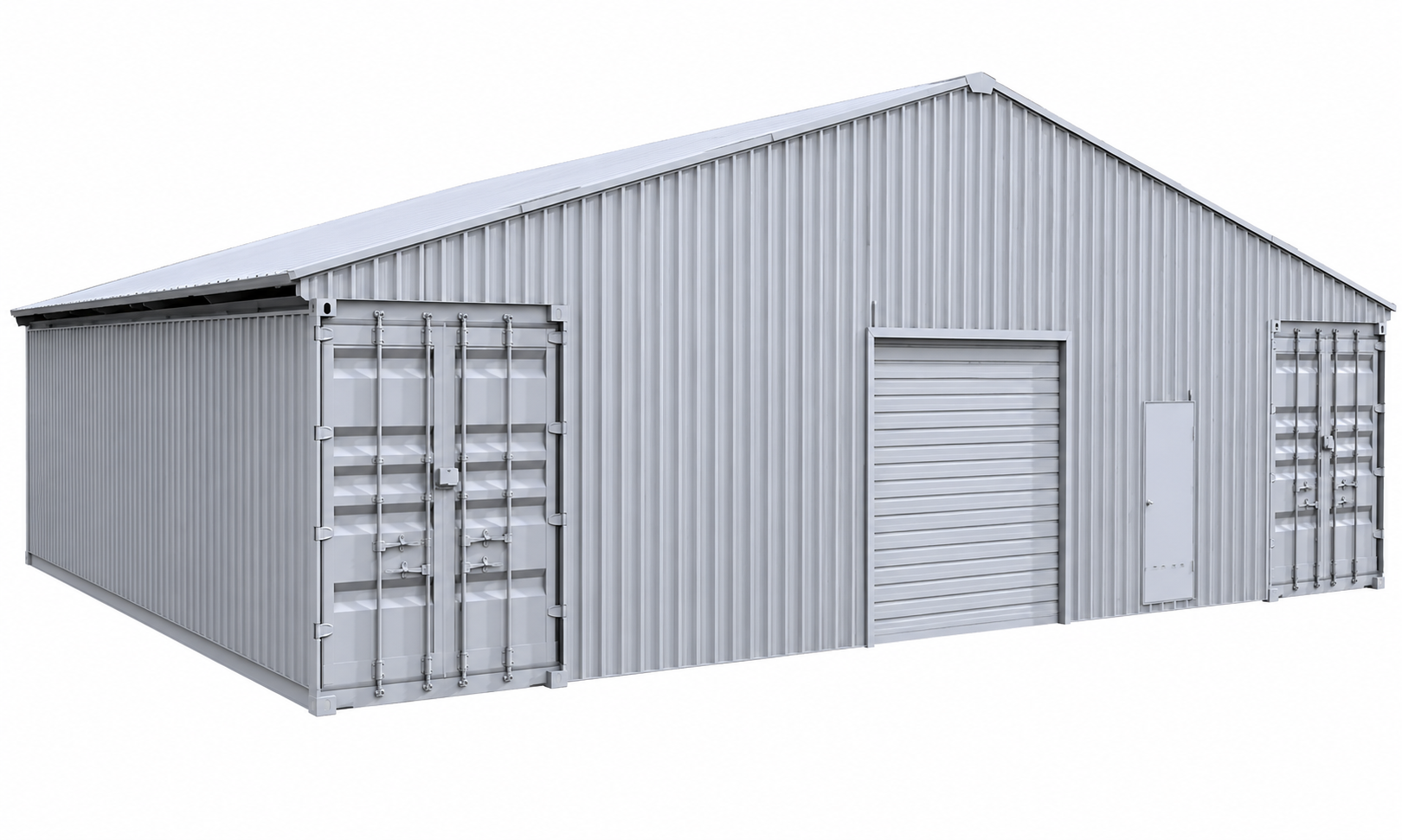

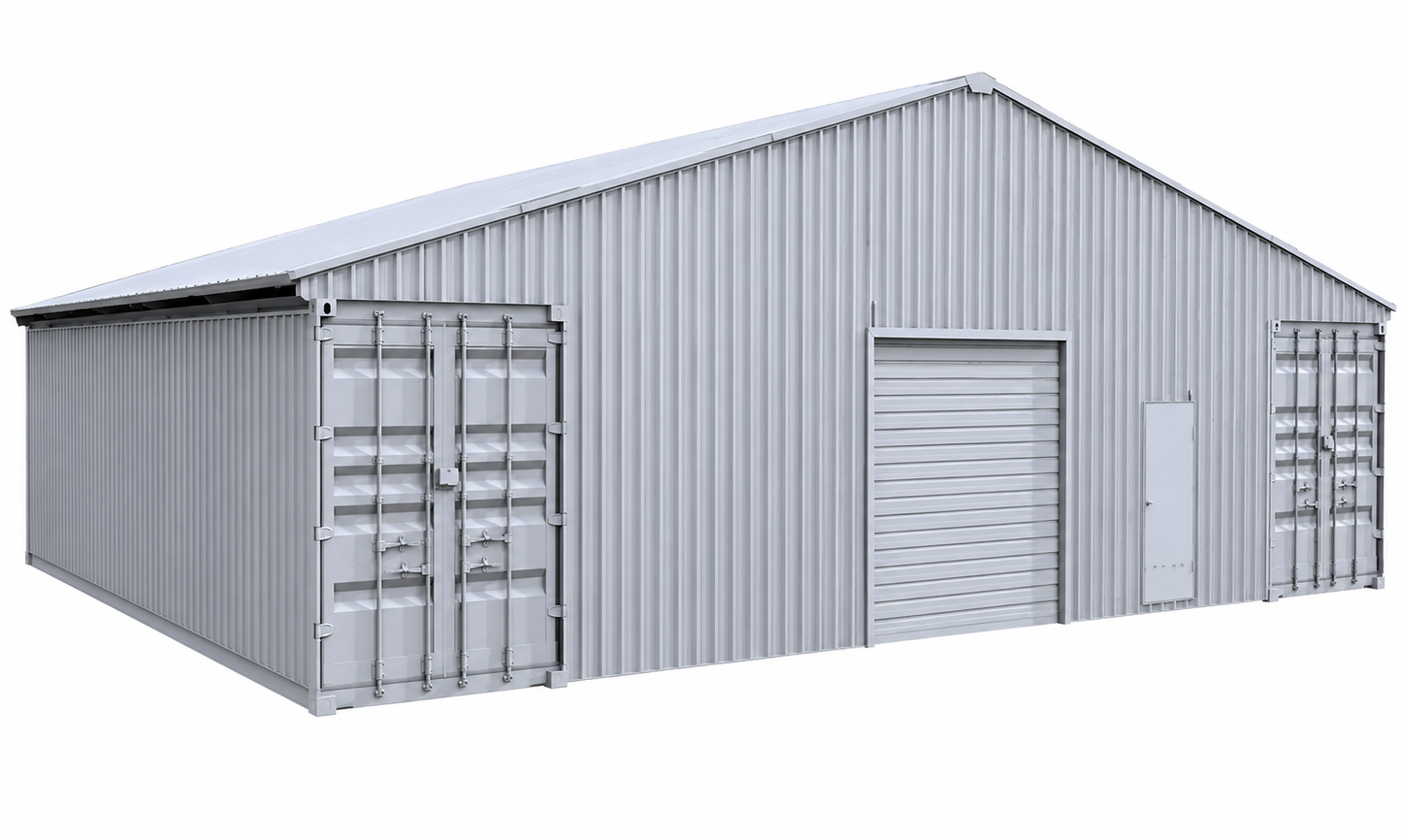

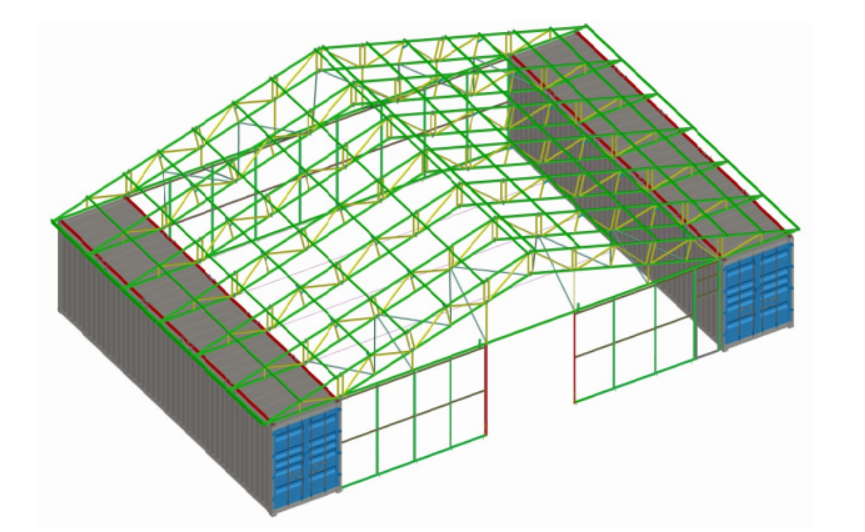

The CAEL MC604009P Enclosed Container Roof Kit is the largest model in the series, providing a massive covered storage structure with secure wall enclosures, large equipment access, and industrial-grade durability. Perfect for warehousing, fleet operations, agricultural facilities, and commercial storage.

Specifications

• Model: MC604009P-FBW
• Overall Dimensions: 60ft W × 40ft L × 9ft H
• Metric Dimensions: 18.3m W × 12.1m L × 2.75m H
• Truss Spacing: 2.015m
• Main Frame Pole #1: 40 × 60 × 1.5mm Rectangular Tube
• Main Frame Pole #2: 40 × 40 × 1.2mm Rectangular Tube
• Purlins: 40 × 60 × 1.5mm Rectangular Tube
• Base Poles: 40 × 80 × 2.0mm
• Material: Galvanized Steel Tube
• Roof Material: Model 840 Colour Steel Plate
• Roof Thickness: 0.4mm
• Roof Colour: Grey
• Roll-Up Door: 2.75m W × 2.9m H
• Personnel Door: 0.855m W × 1.97m H
• Rear Wall: Fully Enclosed
• Box 1 Size: 3.0m × 1.1m × 1.0m
• Box 2 Size: 3.0m × 1.1m × 1.0m
• Box 1 & 2 Combined Weight: 3,500kg
• Box 3 Size: 3.15m × 1.1m × 0.9m
• Box 3 Weight: 650kg
• Total Weight: 4,150kg
• Snow Load Rating: 0.6KN/m²
• Wind Load Rating: 0.55KN/m²
