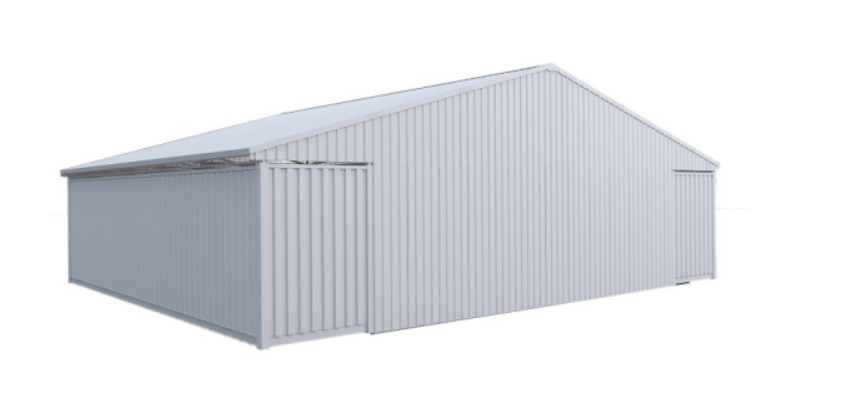

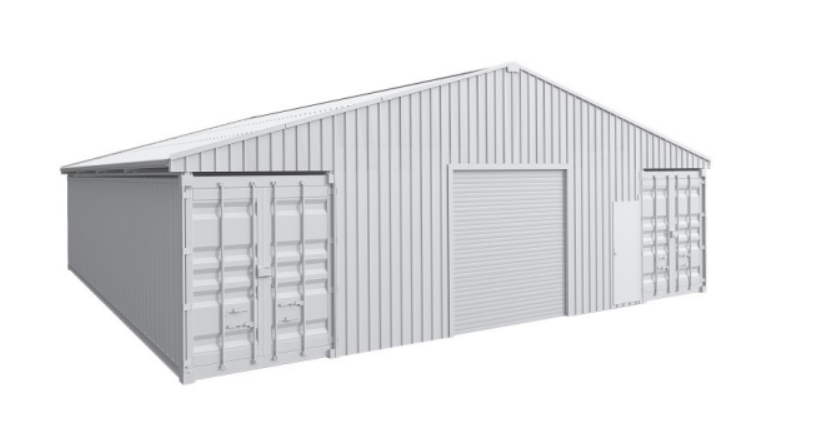

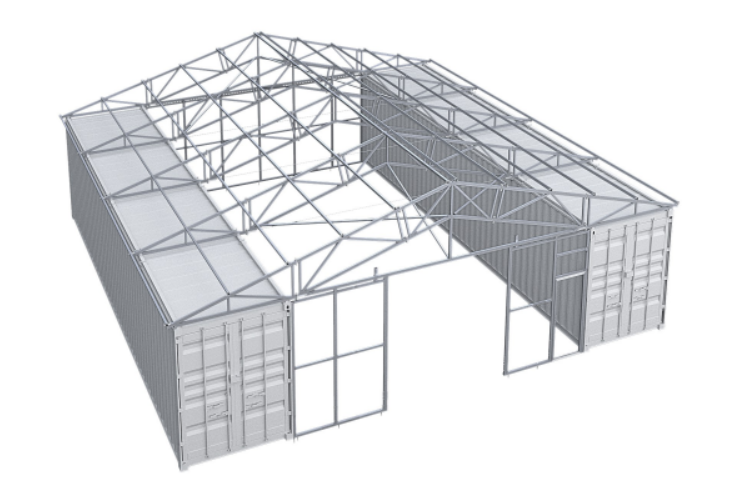

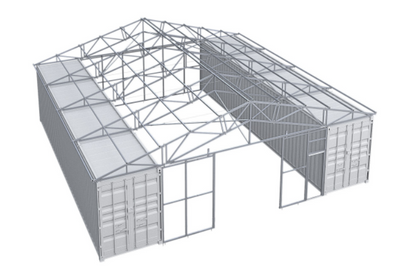

The CAEL MC404006P Container Roof Kit with Front & Back Walls provides a spacious covered storage area between two shipping containers while offering enhanced protection through front and rear wall enclosures. Ideal for warehousing, fleet storage, equipment protection, and commercial operations.

Specifications

• Model: MC404006P-FBW
• Overall Dimensions: 40ft W × 40ft L × 6ft H
• Metric Dimensions: 12.2m W × 12.1m L × 1.8m H
• Truss Spacing: 3.025m
• Main Frame Pole #1: 40 × 60 × 1.5mm Rectangular Tube
• Main Frame Pole #2: 40 × 40 × 1.2mm Rectangular Tube
• Purlins: 40 × 60 × 1.5mm Rectangular Tube
• Base Poles: 40 × 80 × 2.0mm
• Material: Galvanized Steel Tube
• Roof Material: Model 840 Colour Steel Plate
• Roof Thickness: 0.4mm
• Roof Colour: Grey
• Roll-Up Door: 2.75m W × 2.9m H
• Personnel Door: 0.855m W × 1.97m H
• Rear Wall: Fully Enclosed
• Box 1 Size: 3.0m × 1.1m × 0.95m
• Box 1 Weight: 1,900kg
• Box 2 Size: 3.15m × 1.1m × 0.7m
• Box 2 Weight: 450kg
• Total Weight: 2,350kg
• Snow Load Rating: 0.7KN/m²
• Wind Load Rating: 0.55KN/m²
