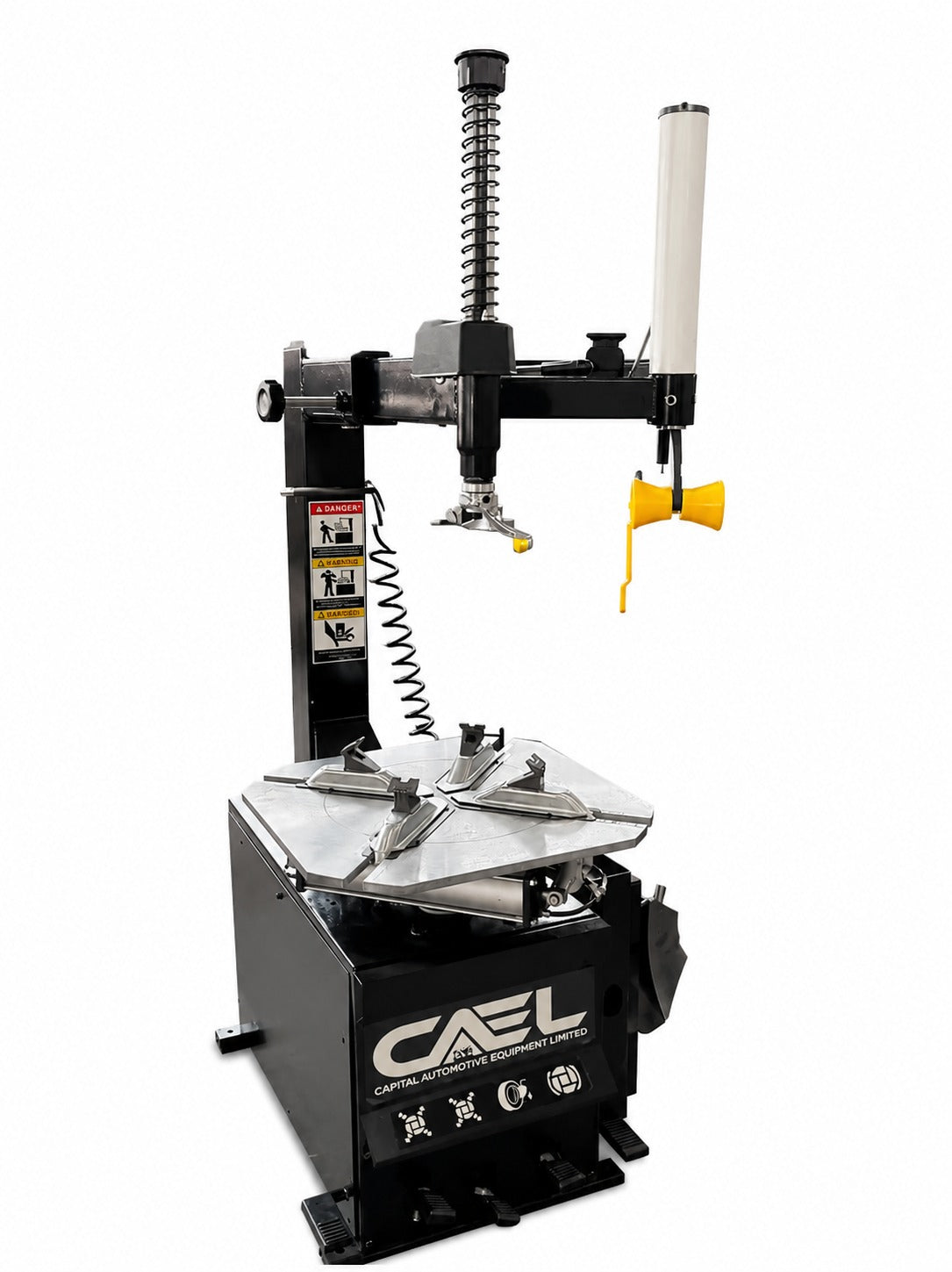

The TC150 Tire Changing Machine with Assist Arm is engineered for tire shops, garages, and automotive service centers that demand reliability, precision, and consistent daily performance. Manufactured under strict quality standards, the TC150 is designed to provide efficient tire mounting and demounting with minimal effort while ensuring maximum safety.

Equipped with a heavy-duty assist arm, the TC150 makes servicing low-profile, run-flat, and performance tires easier by providing additional support during the mounting and demounting process. This helps reduce operator effort, improves efficiency, and protects both wheels and tires.

Built to handle a wide range of passenger and light commercial vehicle tires, the TC150 delivers powerful bead-breaking performance with smooth and quiet operation. Its compact footprint, durable construction, and user-friendly controls make it an excellent choice for professional workshops.

Key Features & Benefits

• Heavy-duty assist arm for low-profile and run-flat tires

• Fast and efficient tire mounting and demounting

• Supports both inner and outer rim clamping

• Powerful bead-breaking performance

• Quiet and smooth operation

• Heavy-duty construction for daily commercial use

• Compact design for small and medium-sized workshops

Technical Specifications

• Outside Rim Capacity: 10” – 22”

• Inside Rim Capacity: 12” – 24”

• Maximum Tire Diameter: 1040 mm (41”)

• Maximum Tire Width: 380 mm (15”)

• Bead Breaking Force: 2500 kg (at 10 bar)

• Operating Air Pressure: 8–10 bar (116–145 psi)

• Maximum Inflation Pressure: 3.5 bar (50 psi)

• Power Supply: 110 V AC

• Motor Power: 1.1 kW / 0.75 kW

• Overall Dimensions: 968 × 992 × 1800 mm (38.1 × 39.1 × 70.9 in)

• Net Weight: 190 kg (418.9 lb)

• Noise Level: Less than 70 dB(A)

Ideal For

• Auto repair shops

• Tire service centers

• Dealership workshops

• Fleet maintenance facilities
