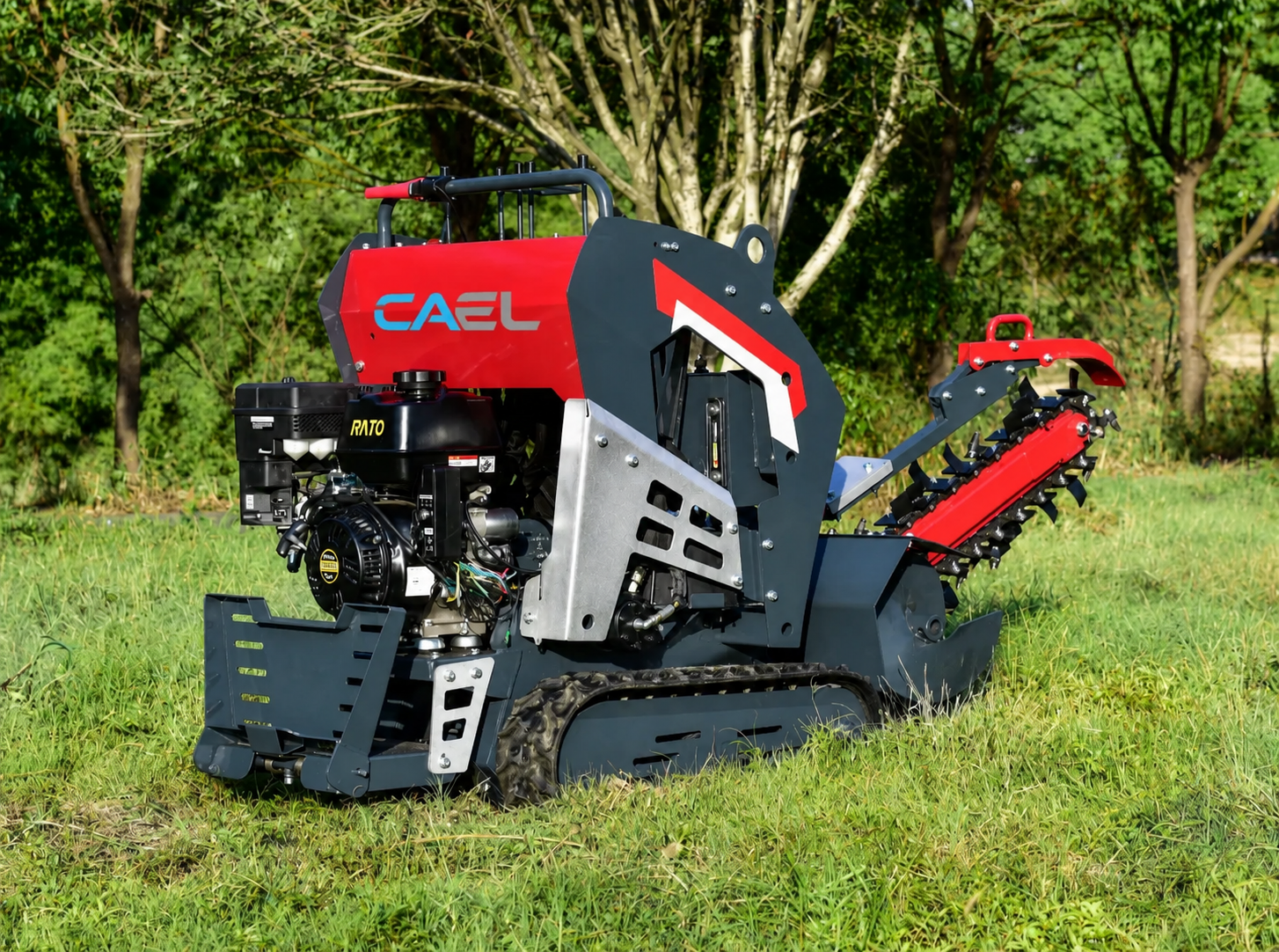

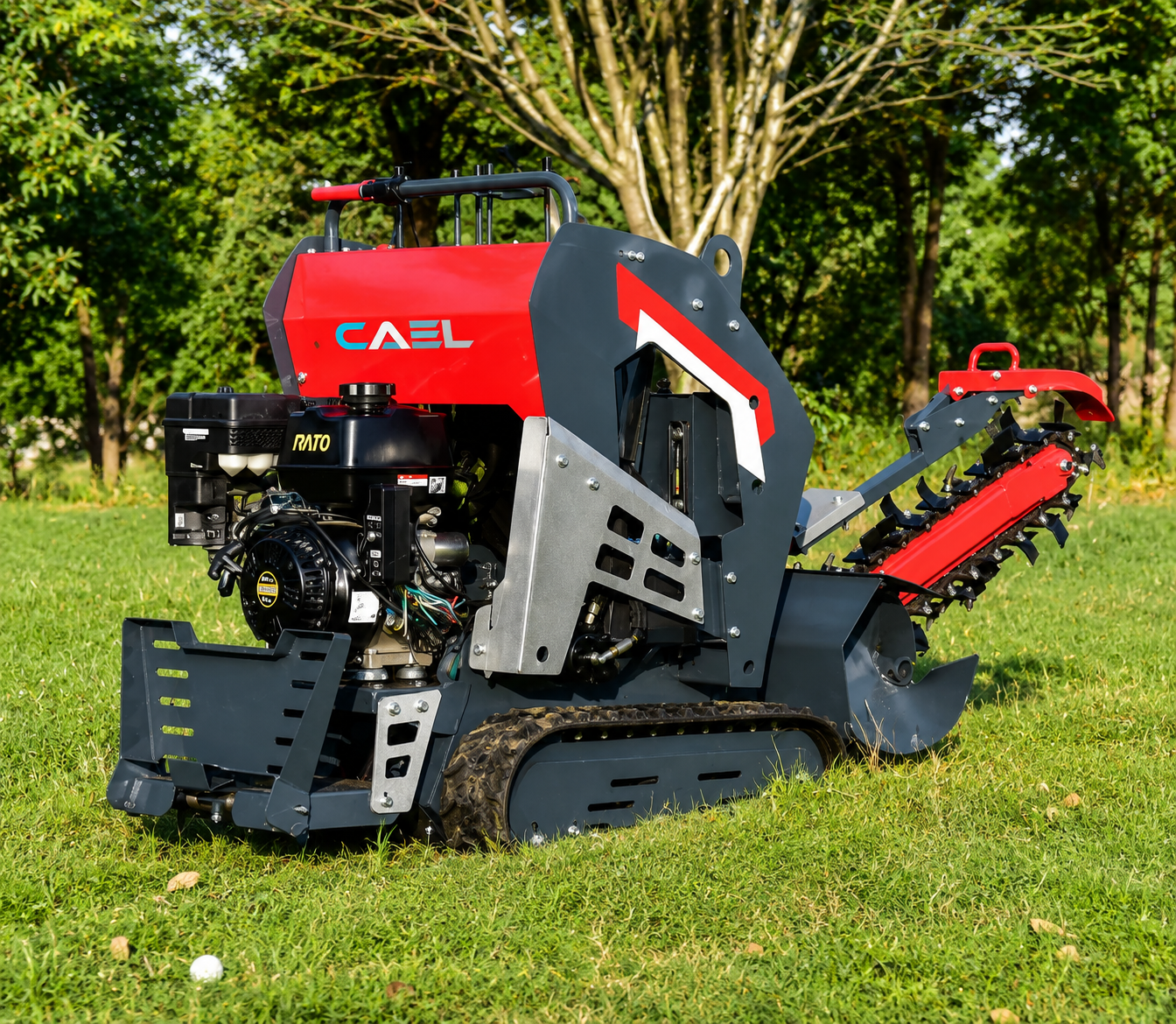

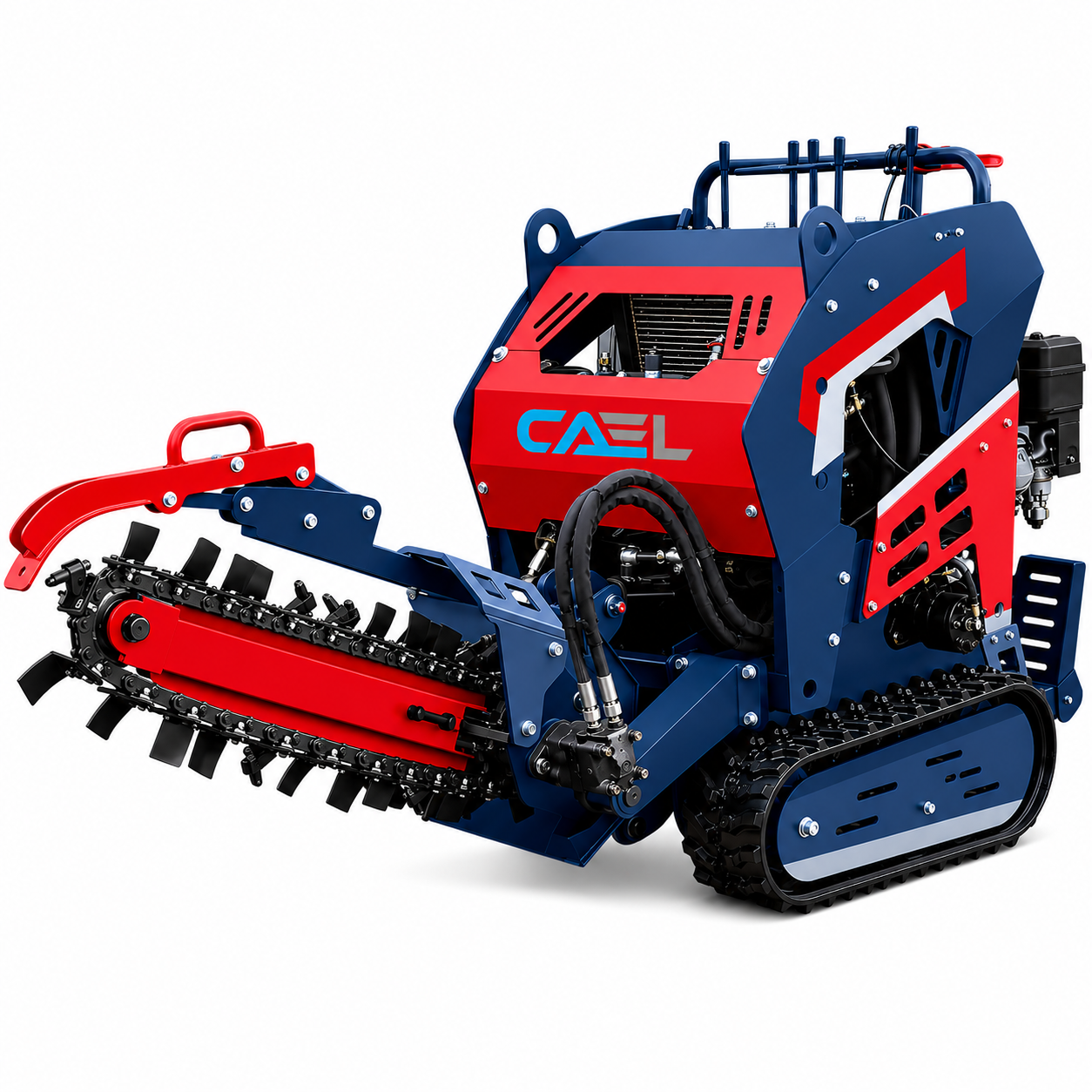

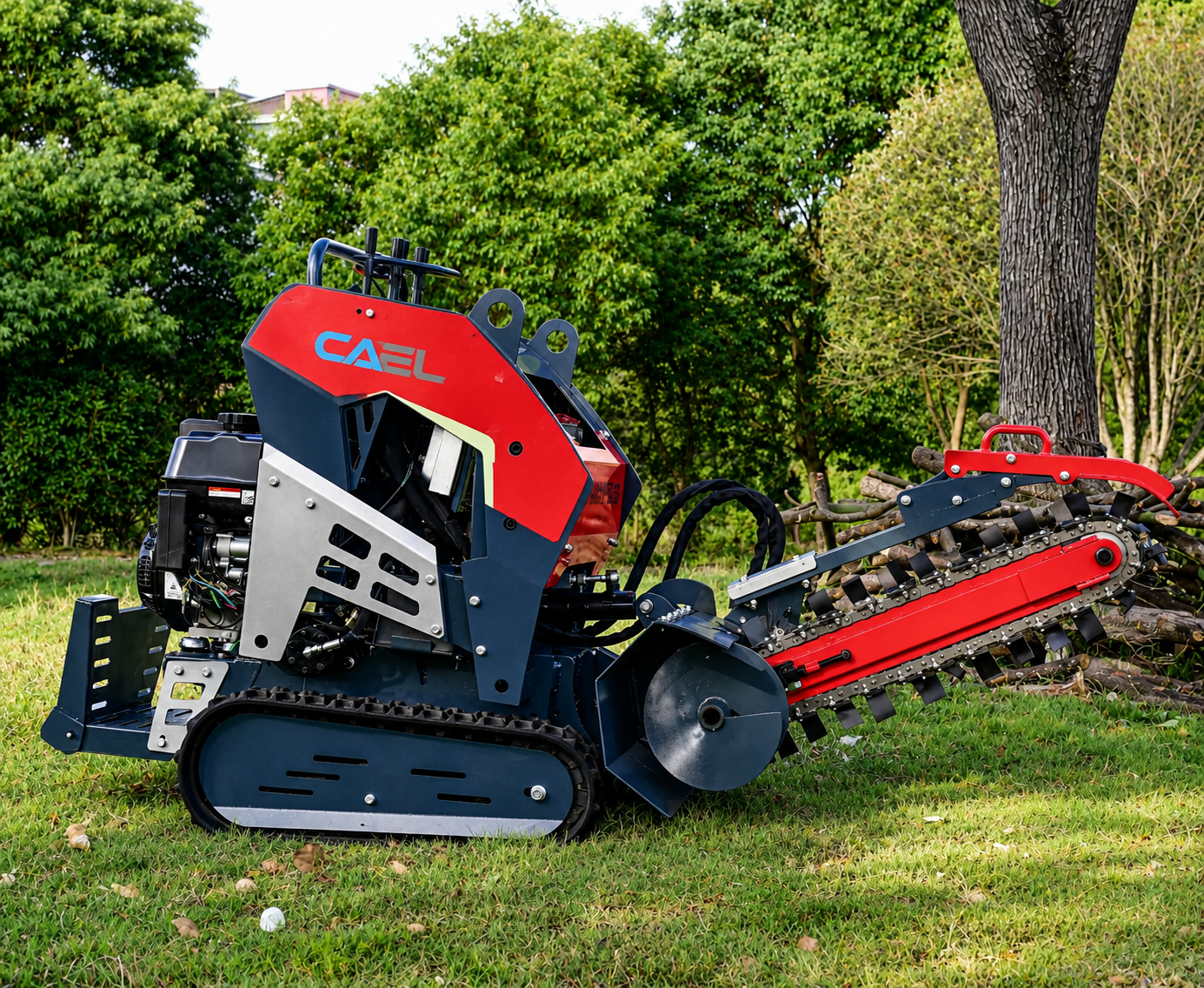

The CAEL-TR-20PRO is a self-propelled hydraulic trencher designed for professional landscaping, irrigation, utility installation, cable laying, and drainage projects. The crawler-track design provides excellent traction and stability while allowing precise trenching in various soil conditions.
Technical Specifications
|
Specification |
Details |
|
Model |
CAEL-TR-20PRO |
|
Type |
Self-Propelled Hydraulic Trencher |
|
Engine |
20 HP RATO Gasoline Engine |
|
Starting System |
Electric Start |
|
Drive System |
Hydraulic Self-Propelled |
|
Hydraulic Oil Capacity |
23.8 L (6.3 Gallons) |
|
Transport Speed (Forward) |
5 km/h (3.1 mph) |
|
Transport Speed (Reverse) |
2.4 km/h (1.5 mph) |
|
Trench Width |
100 mm (4 in) |
|
Trench Depth |
600–1000 mm (24–39.4 in) |
|
Trenching Capacity |
Up to 75 m/hour |
|
Chain Length |
2060 mm (81.1 in) |
|
Chain Speed |
550 m/min |
|
Rubber Track Size |
180 × 600 × 280 mm |
|
Product Dimensions |
1360 × 700 × 1200 mm |
|
Product Dimensions (inches) |
53.5 × 27.6 × 47.2 in |
|
Gross Weight |
505 kg (1,113 lb) |
Key Features
-
Self-propelled hydraulic crawler drive
-
Heavy-duty trenching chain system
-
Adjustable trench depth
-
Compact design for residential and commercial projects
-
Suitable for irrigation, electrical conduit, water lines, drainage systems, and landscaping work
-
User-friendly controls
-
High-traction rubber tracks for uneven terrain
-
Professional-grade construction for rental fleets and contractors
