Specifications

• Digging depth (2 ft flat bottom): 7’8”
• Overall operating height (fully raised): 112”
• Maximum reach from swing post: 118”
• Loading height (bucket at 60° rotation): 72”
• Dipper boom digging force: 2,054 lb
• Bucket digging force: 3,187 lb
• Transport height (boom fully retracted): 72”
• Transport width (stabilizers raised): 58”
• Transport length: 71”
• Ground clearance: 10”–12”
• Transport weight (base unit only, no bucket or mounts): 820 lb
• Bucket rotation: 180°
• Swing arc: 180°
• Stabilizer width (spread): 88”
• Stabilizer width (transport): 58”
• Operating hydraulic pressure: 2,320 PSI
• Hydraulic flow requirement: 5–14 GPM
• Recommended tractor power: 30–60 HP
• Flow divider included
• Available bucket size: 12”
• 3-point hitch mounting system
• Category 1 hookup
• Self-contained gear pump (CAEL-TBH90-J) sold separately

Product Description

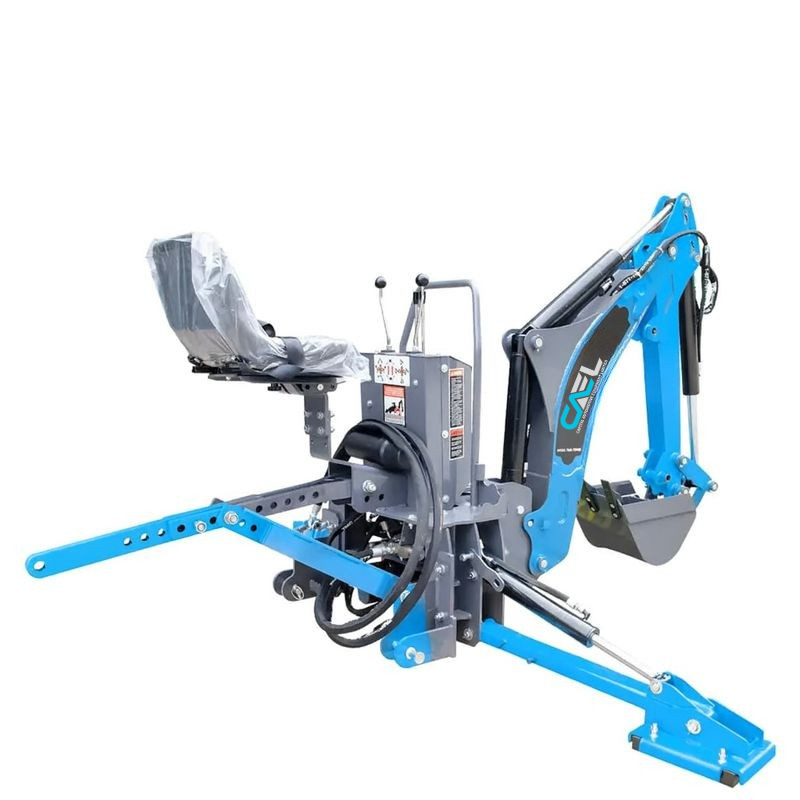

• The CAEL-TBH88 Tractor Swing Backhoe Attachment is a powerful and versatile solution for digging, trenching, and excavation tasks.

• With a 7’8” digging depth and a 180° swing arc, it allows you to work efficiently across a wide area without constant repositioning.

• Designed for 30–60 HP tractors, this backhoe includes a 12-inch bucket, making it ideal for trenching, irrigation installation, landscaping, and general property work.

• Precision-engineered Italian hydraulic control valves optimize hydraulic pressure distribution for smooth operation, accurate timing, and reliable performance.

• A well-gusseted dual hydraulic cylinder arm and bucket linkage deliver high breakout force, strong burrowing power, and a full 180° of bucket rotation.

• The 3-point hitch system provides easy tractor attachment, eliminating the need for a standalone excavating machine.

• Maintenance is simplified with replaceable bushings, bolt-on cast teeth, and grease fittings on all pivot points for long-term durability.

• Stabilizer legs with removable rubber street pads help protect lawns, asphalt, and concrete during operation.

• For tractors without an auxiliary hydraulic system, an optional external self-contained hydraulic pump is available to maximize digging performance (sold separately).

Shipping Information

• Orders ship from one of our warehouses in Canada or the United States

• Standard processing and dispatch time is 2–3 business days

• Estimated delivery time is 10–15 business days, depending on location and accessibility

• Securely packed in a metal crate shipping box for safe transport

• Shipping dimensions: 75” × 29” × 49” (L × W × H)

• Total shipping weight: 1,150 lb

• Ships from Richmond, BC, or Mississauga, ON

Warranty

• Every CAEL product includes a 1-year warranty, providing confidence and peace of mind.

• Coverage includes manufacturing defects in materials and workmanship, ensuring reliable performance across seasons.

• From excavation to property maintenance, you can rely on CAEL equipment to deliver consistent, professional-grade results.

• Our customer support team is available to assist with technical guidance, troubleshooting, and parts support throughout the life of your machine.
