Specifications

• Digging depth (2 ft flat bottom): 9’6”
• Overall operating height (fully raised): 125”
• Maximum reach from swing post: 129”
• Loading height (bucket at 60° rotation): 84”
• Dipper boom digging force: 2,200 lb
• Bucket digging force: 3,300 lb
• Transport height (boom fully retracted): 80”
• Transport width (stabilizers raised): 58”
• Transport length: 72”
• Ground clearance: 10”–12”
• Transport weight (base unit only, no bucket or mounts): 870 lb
• Bucket rotation: 180°
• Swing arc: 180°
• Stabilizer width (spread): 88”
• Stabilizer width (transport): 58”
• Operating hydraulic pressure: 2,320 PSI
• Hydraulic flow requirement: 5–14 GPM
• Recommended tractor power: 45–100 HP
• Flow divider included
• Available bucket size: 15”
• 3-point hitch mounting system
• Compatible with Category 1 & Category 2 hookups
• Self-contained gear pump (CAEL-TBH90-J) sold separately

Product Description

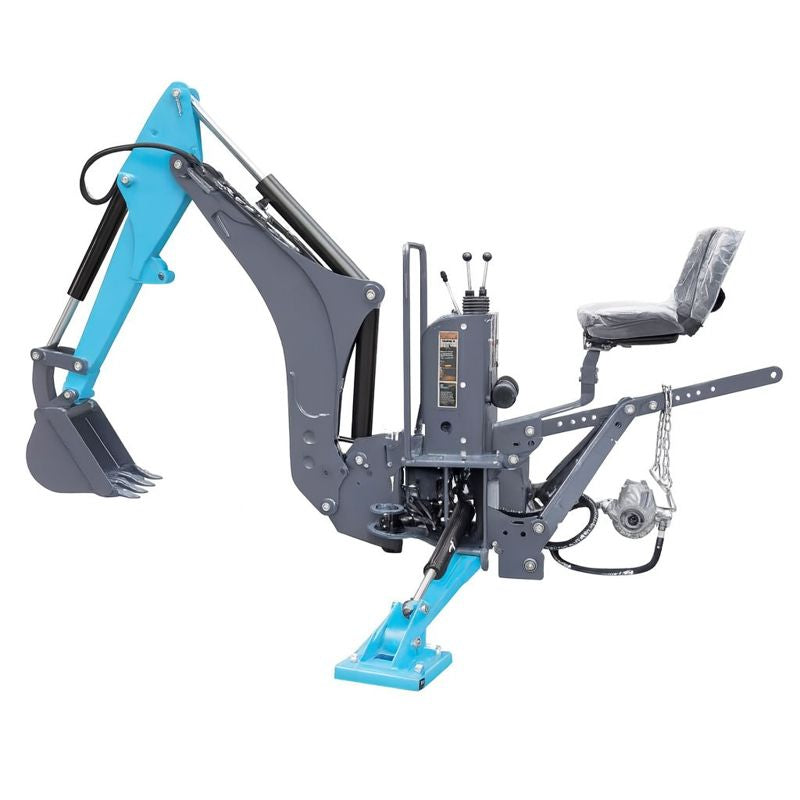

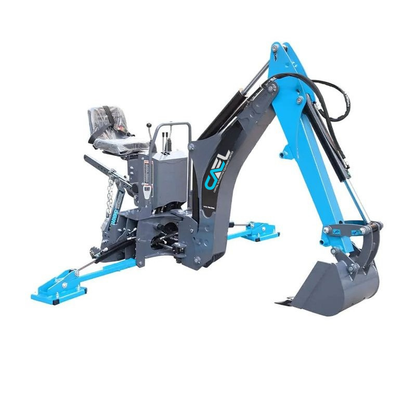

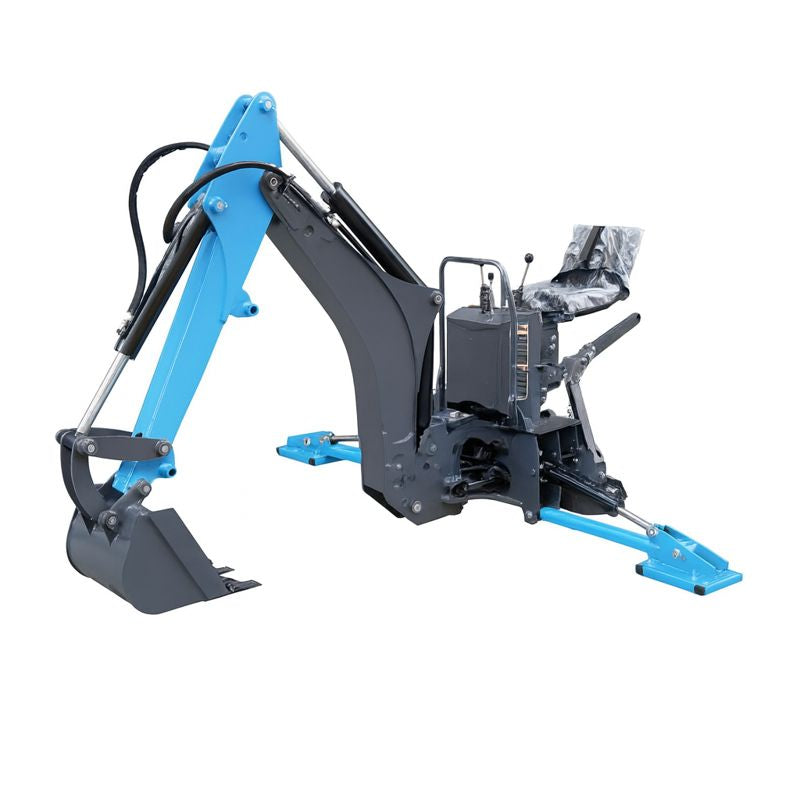

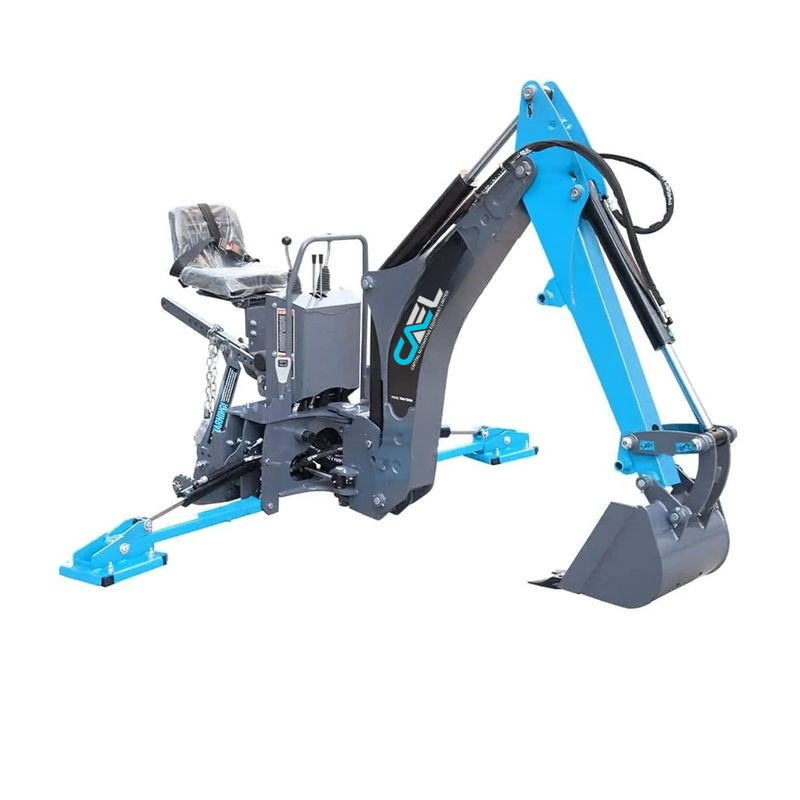

• The CAEL-TBH90 9-ft Tractor Swing Backhoe Attachment delivers powerful and versatile excavation performance for demanding property, farm, and construction tasks.

• With an extended reach and 180° boom swing, it allows access to hard-to-reach areas without constant repositioning, improving efficiency on every job.

• Compatible with 45–100 HP tractors, this attachment includes a 15-inch digging bucket, ideal for trenching, irrigation installation, landscaping, and general excavation work.

• Equipped with Italian Hydro Control valves, the backhoe ensures precise hydraulic timing, smooth operation, and optimal pressure distribution.

• A dual hydraulic cylinder arm and bucket linkage provide high breakout force and exceptional digging power, along with 180° bucket rotation for added versatility.

• The 3-point hitch design enables quick tractor attachment, eliminating the need for a separate excavating machine.

• Maintenance is simplified with replaceable bushings, bolt-on cast teeth, and grease fittings at all pivot points for long-term reliability.

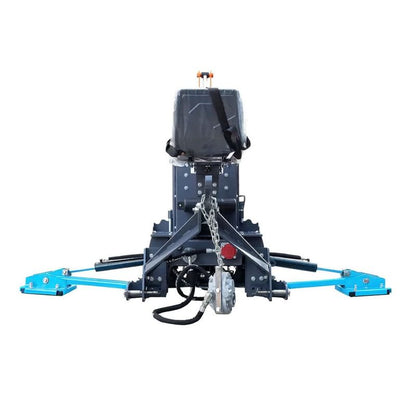

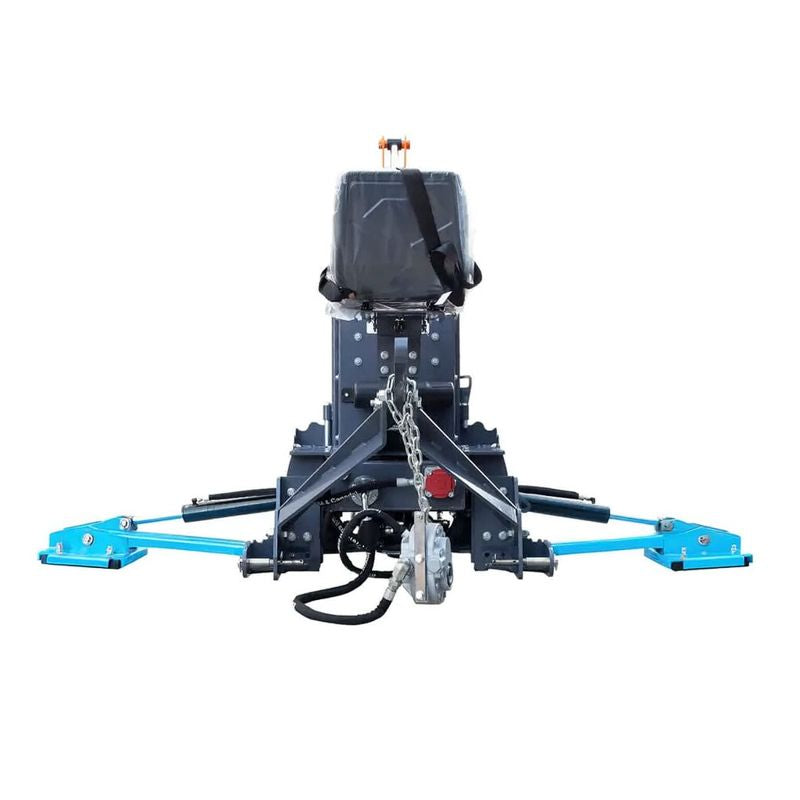

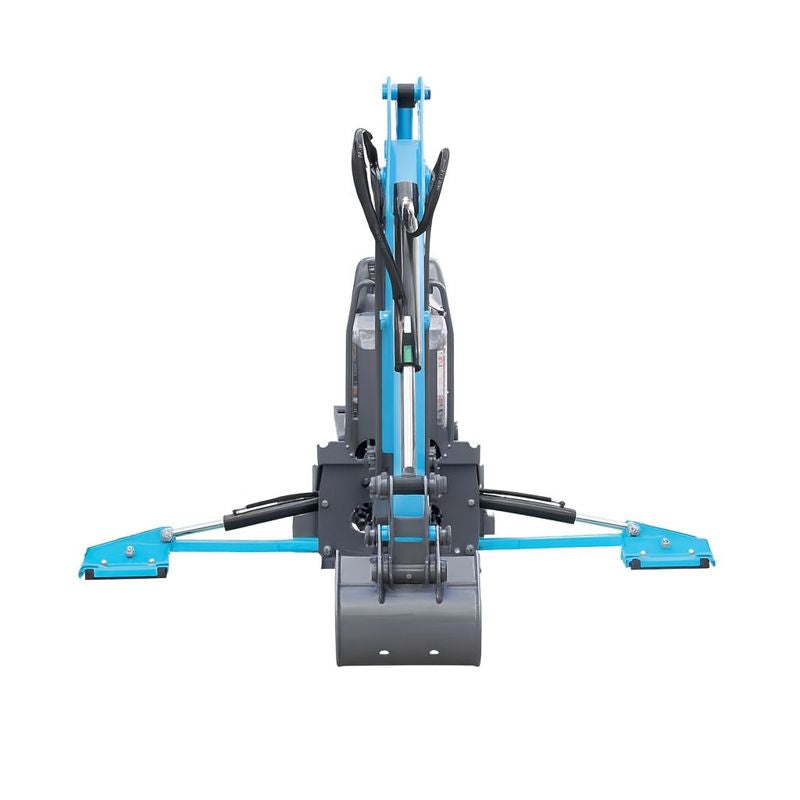

• Stabilizer legs with removable rubber street pads help protect lawns, asphalt, and concrete surfaces during operation.

• For tractors without an auxiliary hydraulic system, an optional external self-contained hydraulic pump is available to maximize digging force and performance (sold separately).

Shipping Information

• Orders ship from one of our warehouses in Canada or the United States

• Standard processing and dispatch time is 2–3 business days

• Estimated delivery time is 10–15 business days, depending on location and accessibility

• Securely packed in a steel shipping frame for safe transport

• Shipping dimensions: 89” × 29” × 49” (L × W × H)

• Total shipping weight: 1,260 lb

• Ships from Richmond, BC, or Mississauga, ON

Warranty

• Every CAEL product includes a 1-year warranty for peace of mind and dependable performance.

• Coverage includes manufacturing defects in materials and workmanship, ensuring reliability across seasons.

• From excavation to property maintenance, you can rely on CAEL equipment to deliver consistent, professional-grade results.

• Our customer support team is available for technical assistance, troubleshooting, and parts support throughout the life of your machine.
