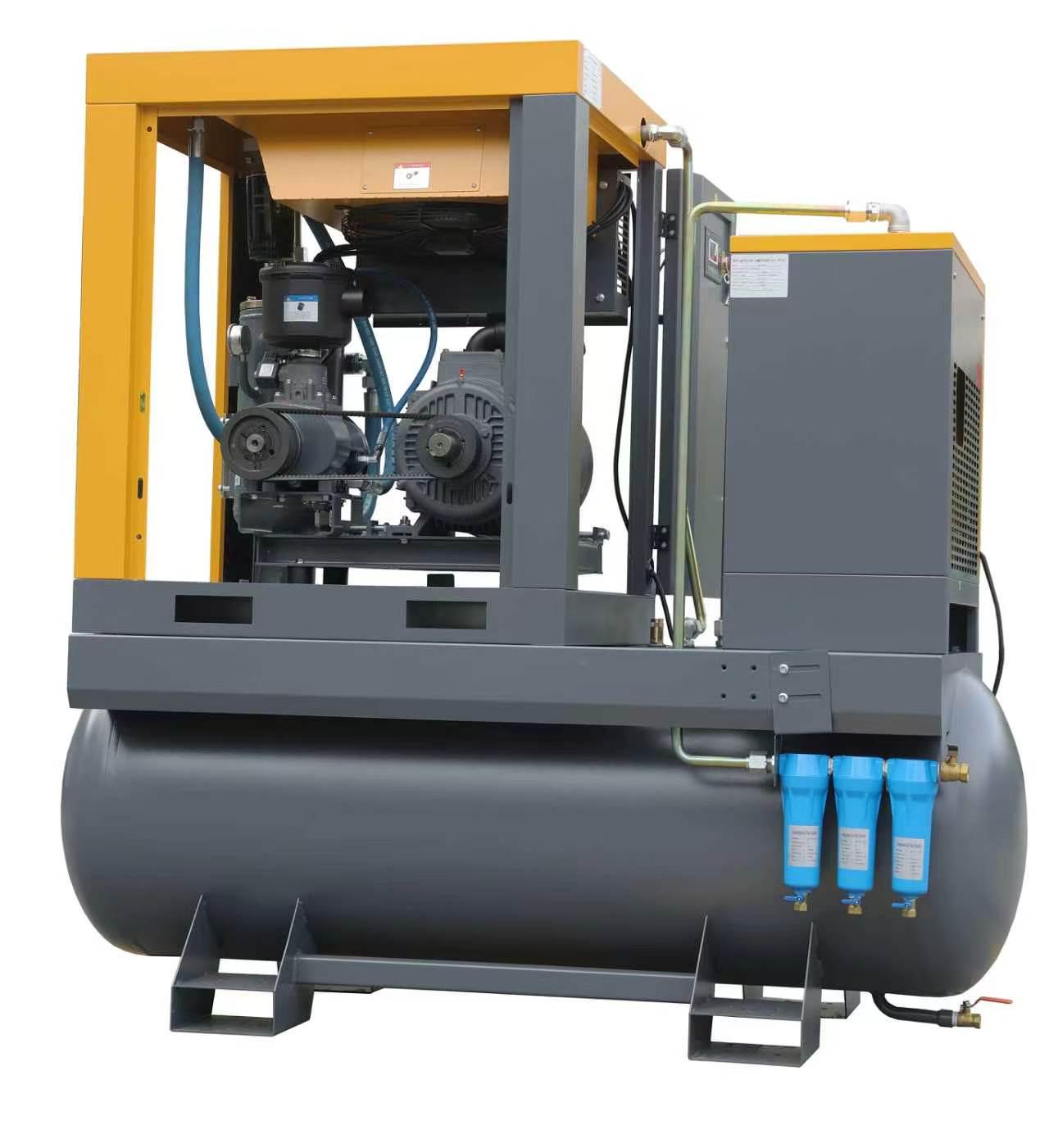

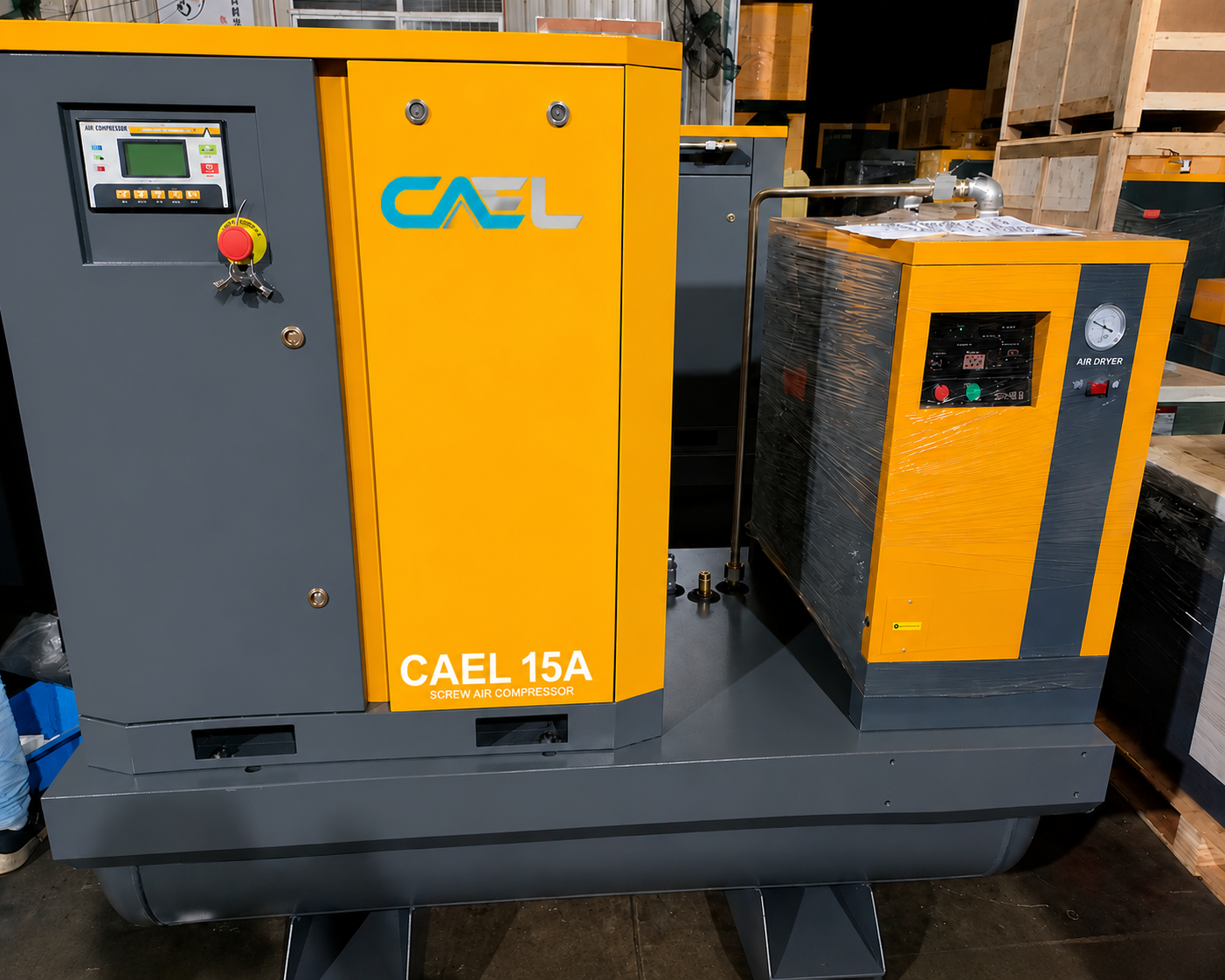

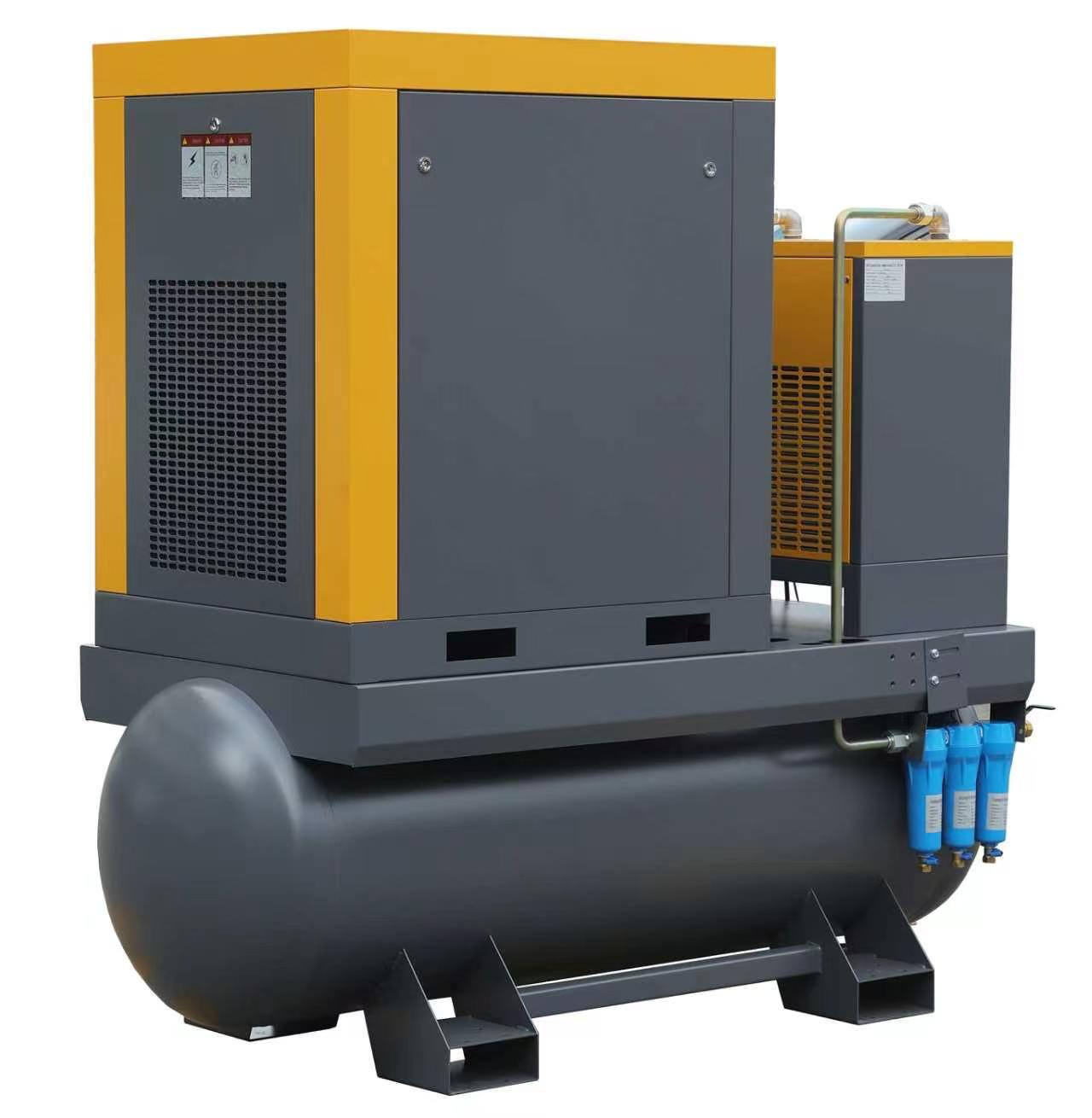

CAEL 15 HP Screw Air Compressor – 4 IN 1 System with Air Dryer, Air Tank & Filters
CAEL 15 HP Screw Air Compressor – 4 IN 1 System with Air Dryer, Air Tank & Filters
Share
Prix régulier
$7,799.00 CAD
Prix promotionnel
$7,799.00 CAD
Prix régulier
Prix unitaire
/
par
Livraison calculée lors du passage à la caisse.
Dépêchez-vous, il ne reste que 3 en stock
Impossible de charger la disponibilité du ramassage
We Accept
- Low Prices
- Warranty Included
- Order Tracking
The CAEL 15 HP Screw Air Compressor is designed to deliver consistent and reliable compressed air for industrial, automotive, manufacturing, workshop, and commercial applications. Its robust belt-driven design, air-cooled system, and single-stage compression ensure dependable performance for demanding operations.
Key Features
- 15 HP / 11 kW Motor
- Single-Stage Compression
- Belt-Driven System
- Air-Cooled
- Y-Δ (Star-Delta) Starting
- 220V / 3 Phase / 60Hz
- 3/4" Air Outlet
- Durable and industrial-grade construction
- Designed for continuous and reliable operation
Technical Specifications
| Specification | CAEL-4IN1-15 HP |
|---|---|
| Motor Power | 11 kW / 15 HP |
| Free Air Delivery | 1.6 m³/min @ 0.7 MPa |
| Free Air Delivery | 1.5 m³/min @ 0.8 MPa |
| Free Air Delivery | 1.3 m³/min @ 1.0 MPa |
| Compression Stage | Single Stage |
| Cooling Mode | Air-Cooling |
| Drive Method | Belt Driven |
| Starting Method | Y-Δ Starter (Star-Delta) |
| Voltage / Phase / Frequency | 220V / 3 Ph / 60Hz |
| Lubricant Capacity | 10 L |
| Noise Level | 64 ± 2 dB |
| Air Outlet Diameter | 3/4" |
| Dimensions (L × W × H) | 1750 × 800 × 1690 mm |
| Net Weight | 475 kg |
| Ambient Temperature | -5°C to +45°C |
| Discharge Temperature | Ambient Temperature +15°C |
Applications
Ideal for automotive workshops, manufacturing units, industrial facilities, repair shops, maintenance operations, and other applications requiring a reliable compressed-air supply.
