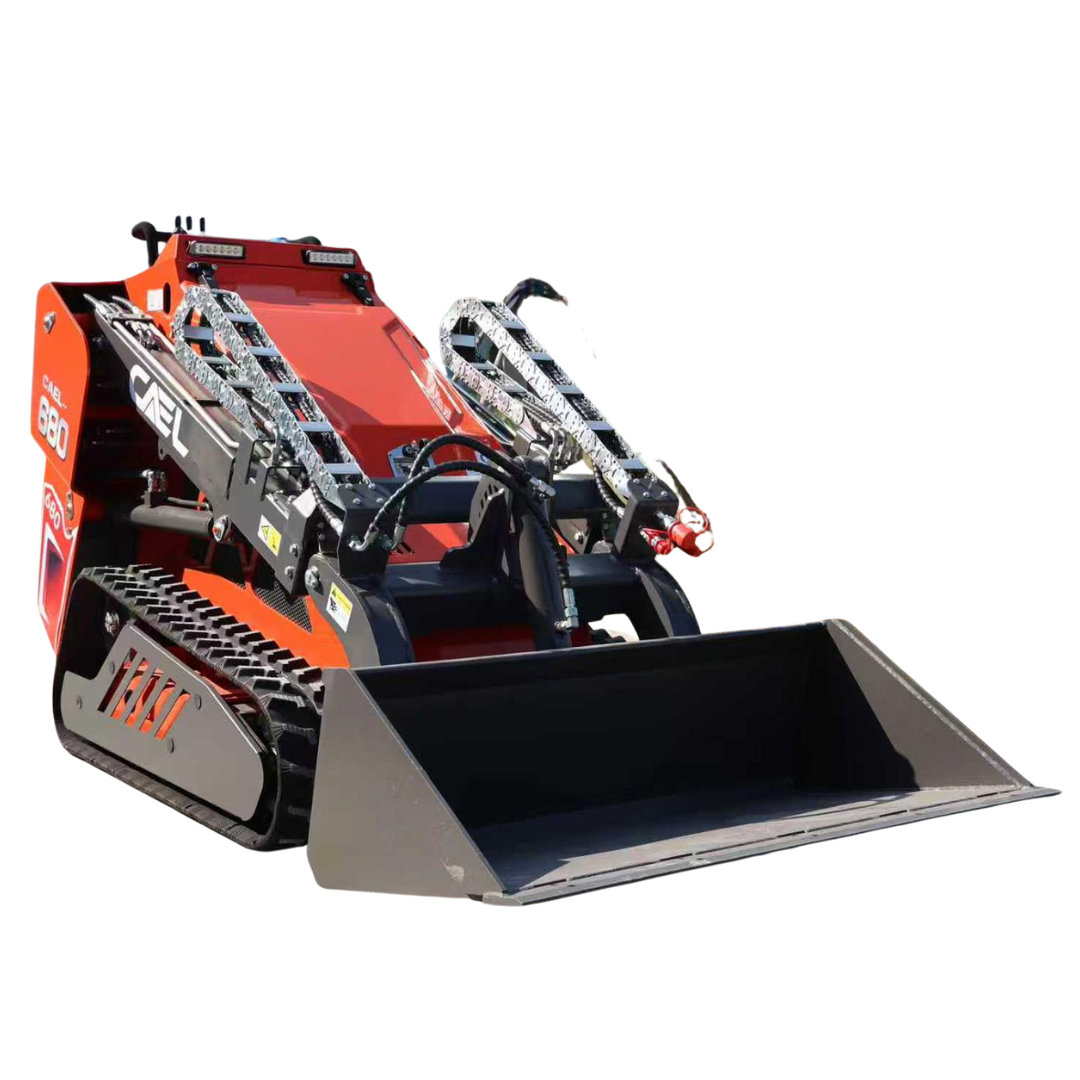

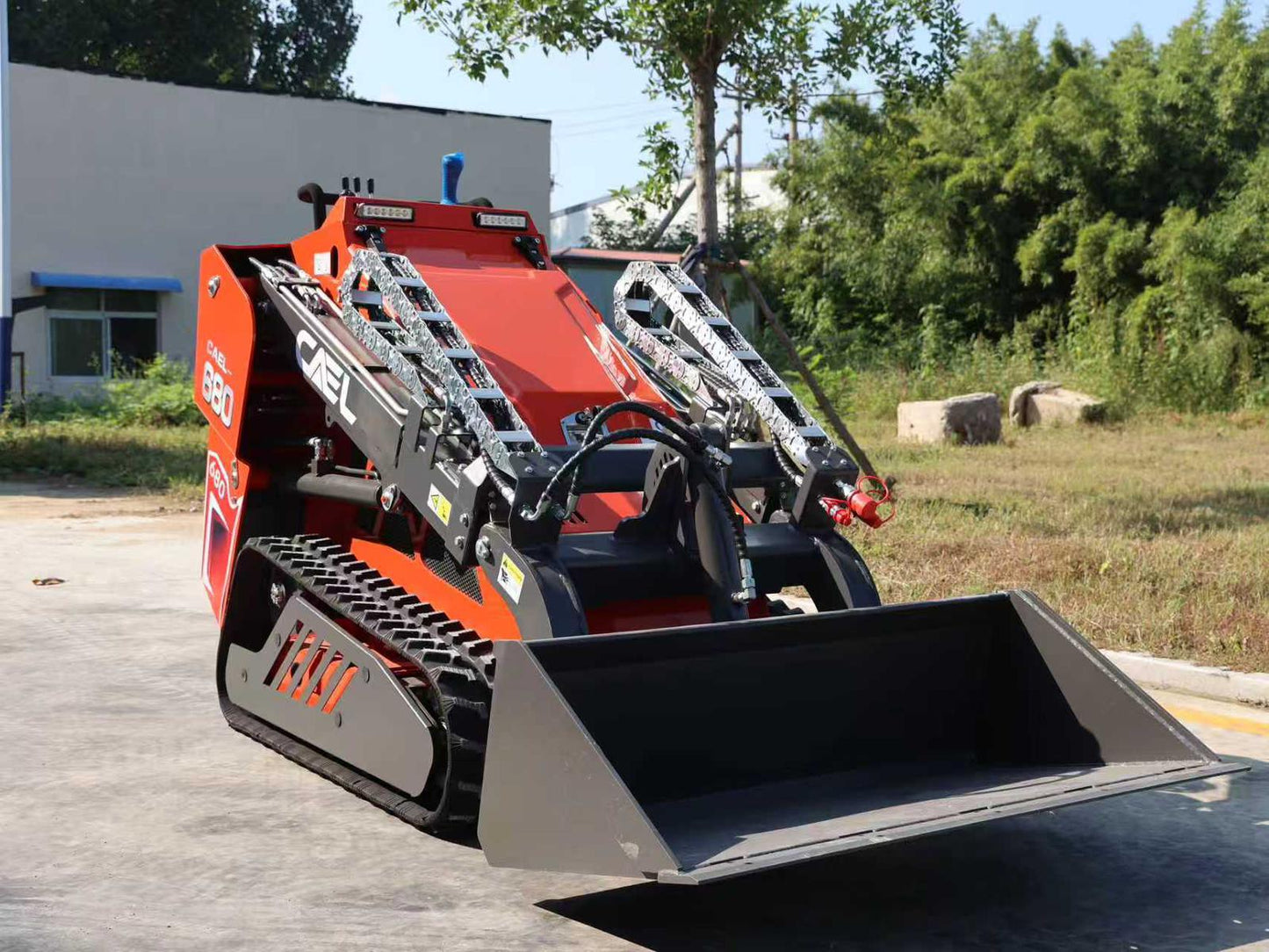

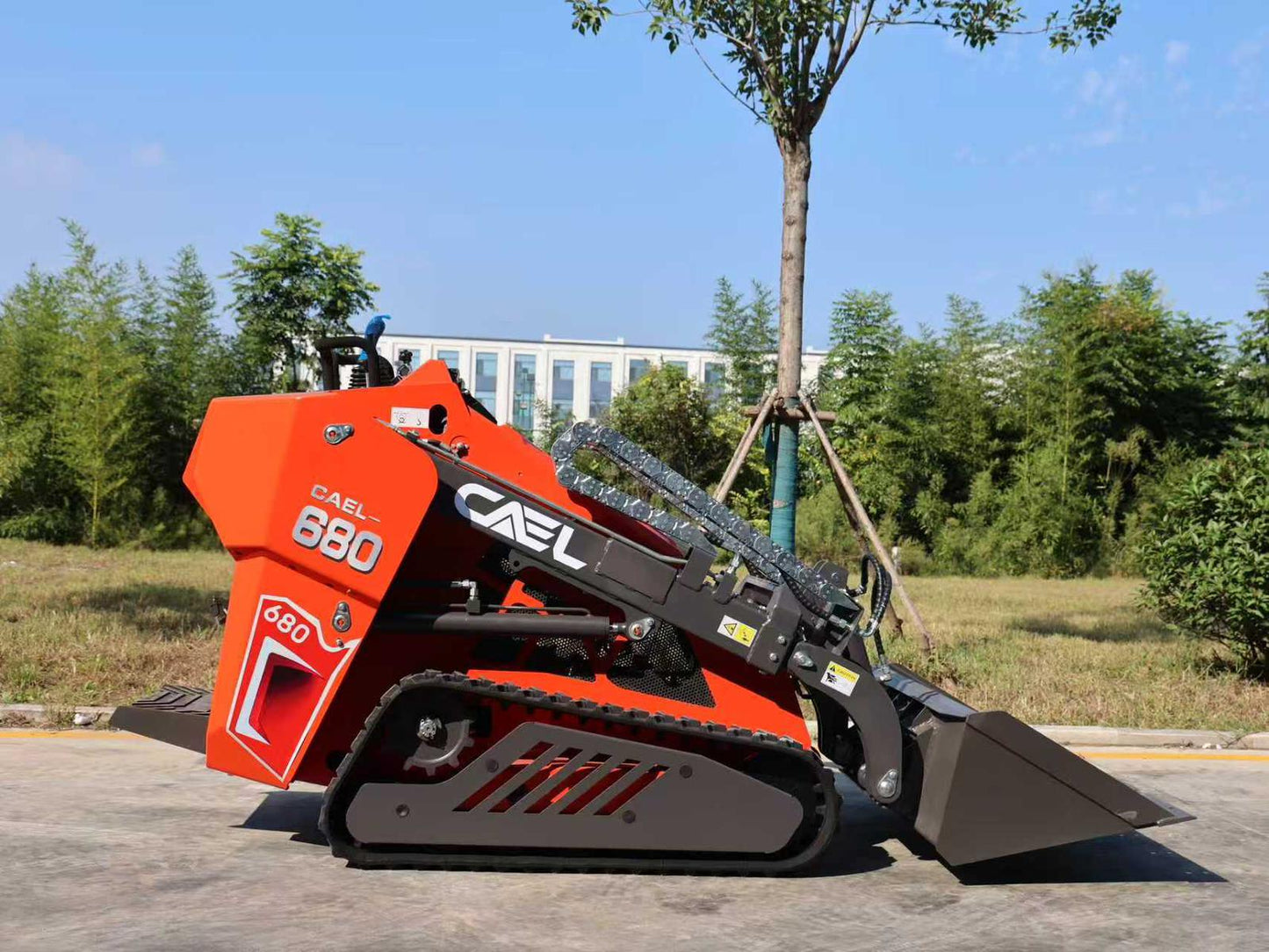

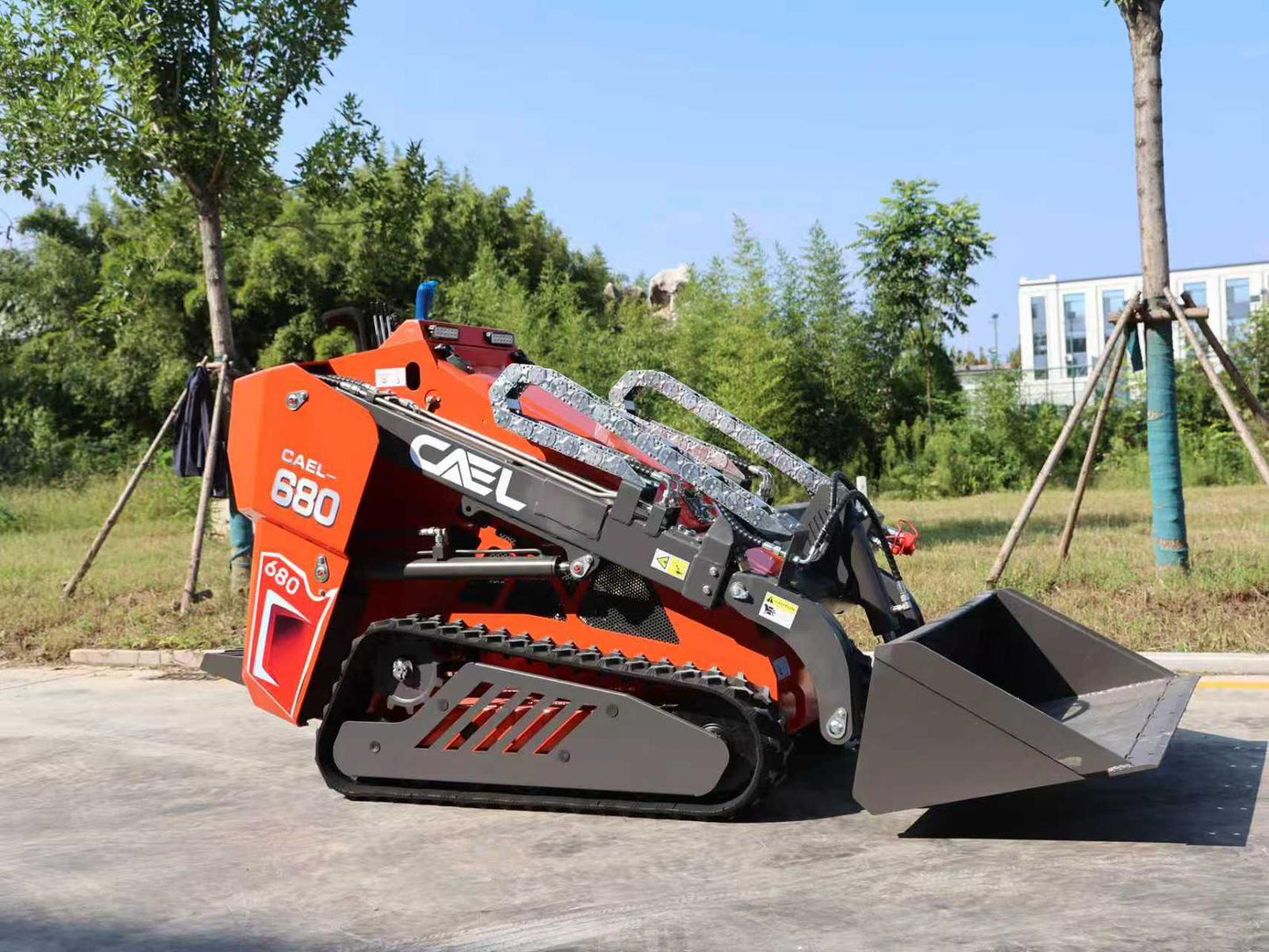

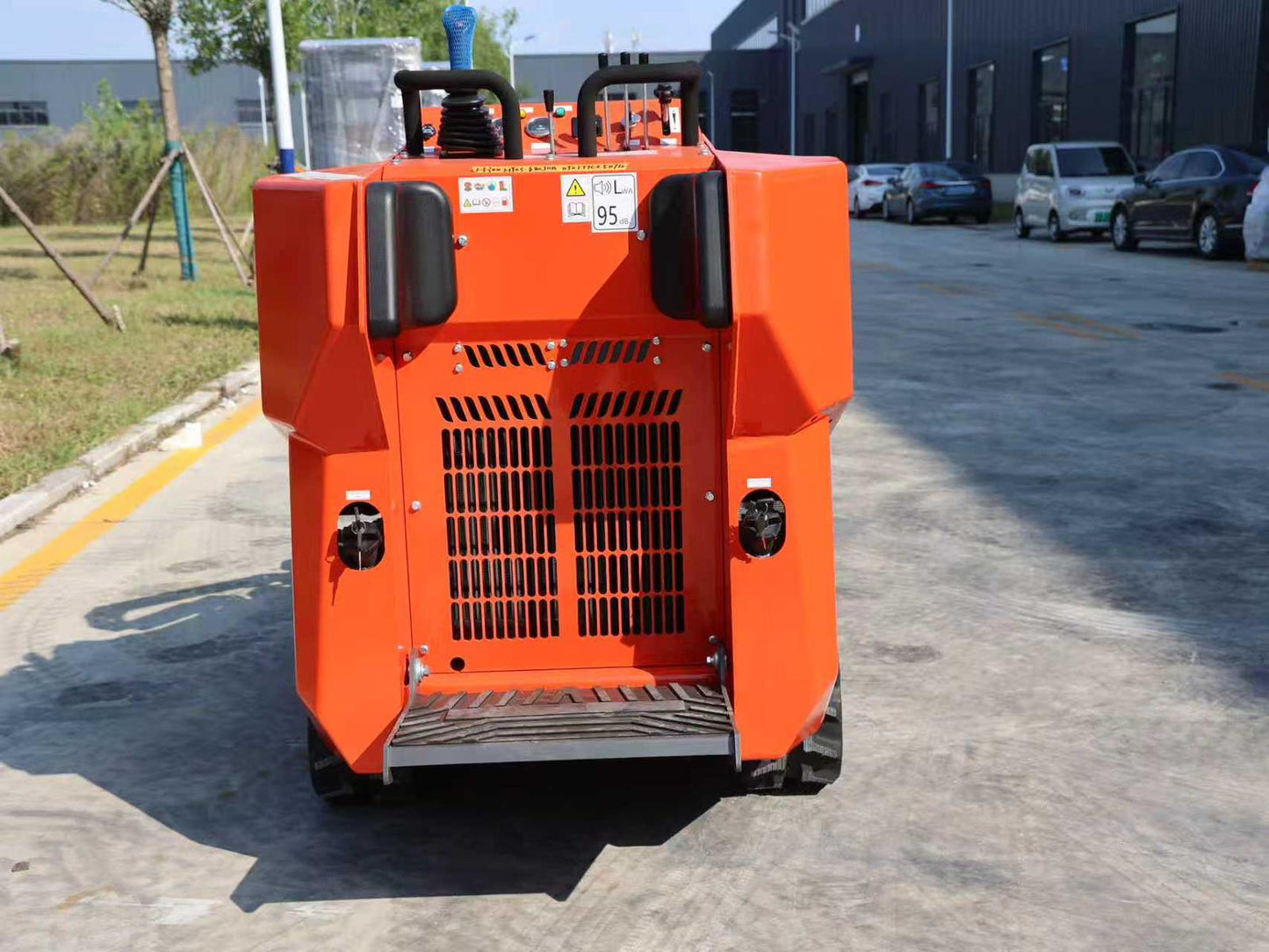

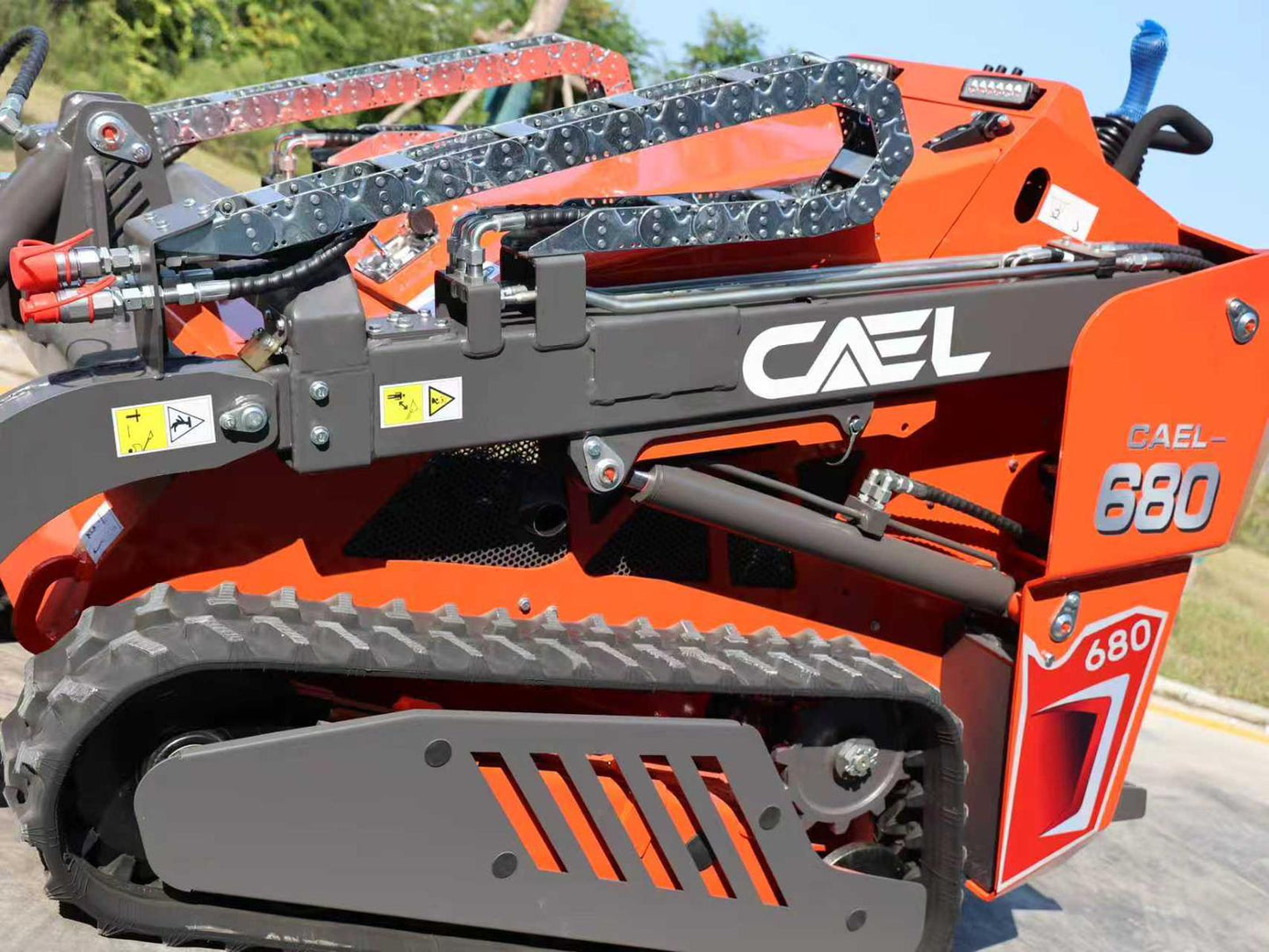

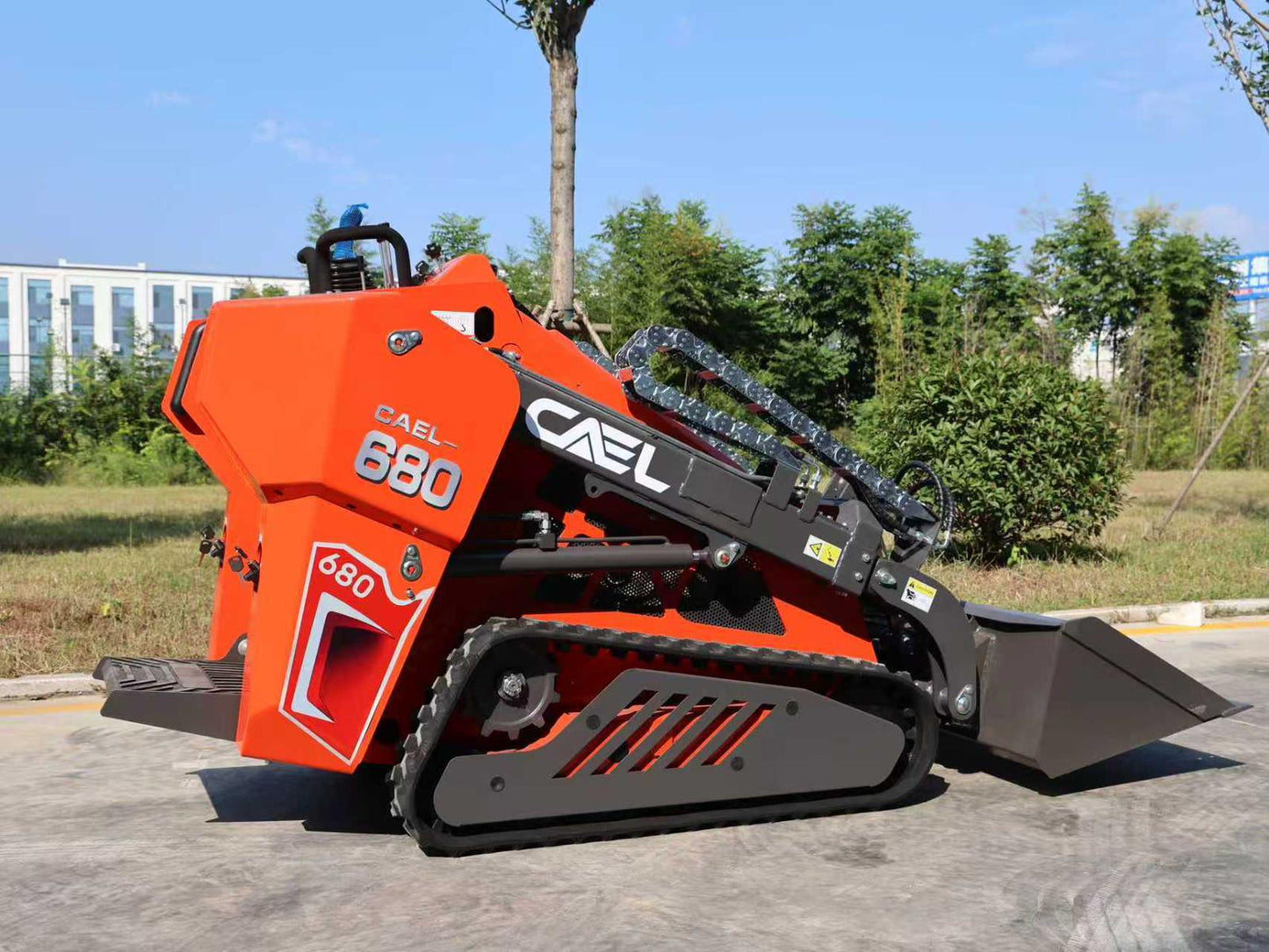

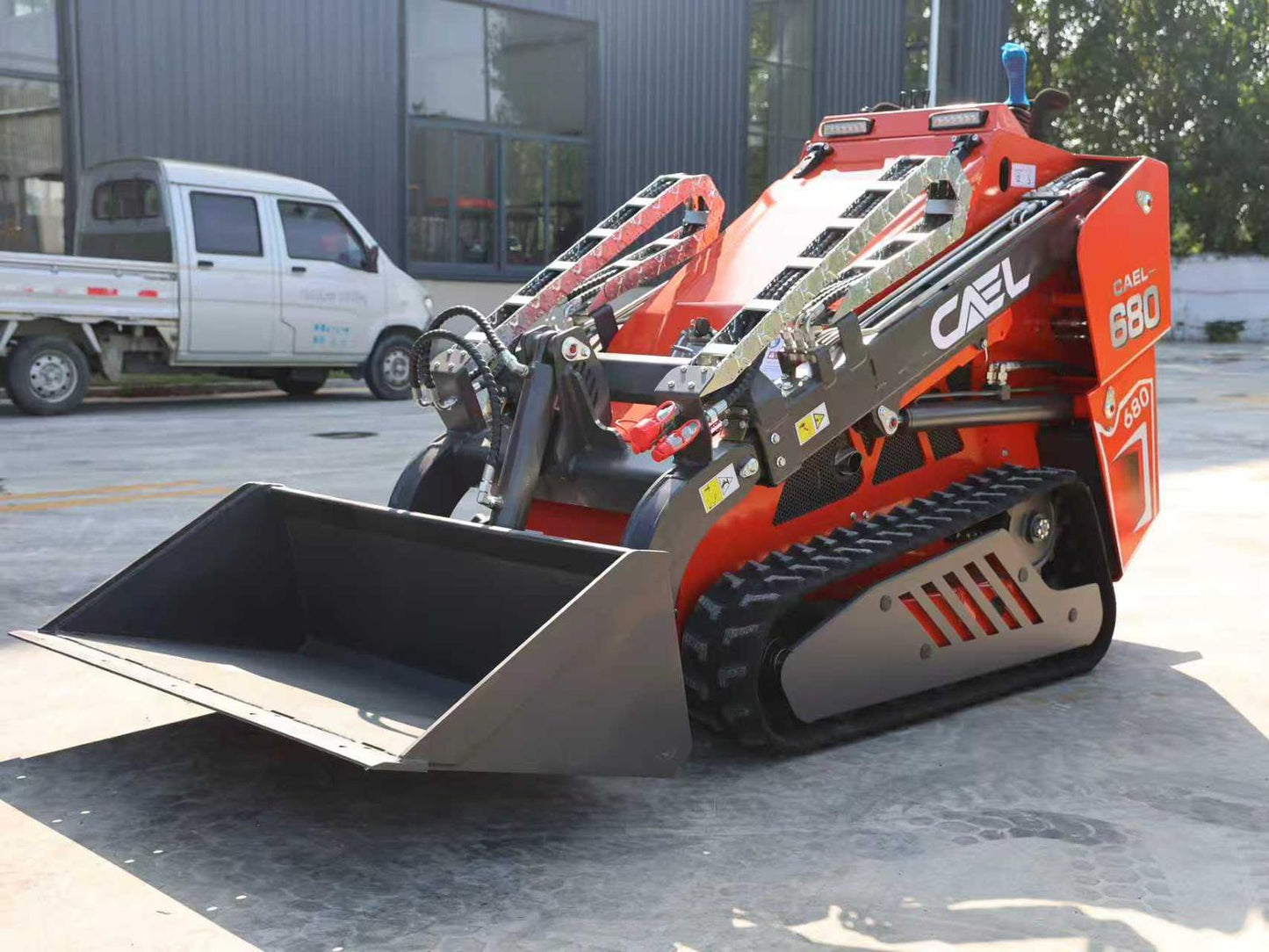

The CAEL680-S Mini Skid Steer Loader is engineered for high performance, durability, and precision in demanding environments. Equipped with a reliable Kubota D1105 diesel engine and premium European hydraulic components, this machine delivers powerful lifting capacity, smooth control, and excellent efficiency for construction, agriculture, and industrial applications.

Key Highlights

• Powerful Kubota diesel engine for reliable performance
• Premium hydraulic system with Danfoss motor & Italian components
• Compact design with extended arm capability
• Smooth and responsive operation for precision work
• Built for durability in tough working conditions

Performance Specifications

• Model: CAEL680-S
• Rated Load Capacity: 650 kg (1433 lbs)
• Extended Arm: 270 kg (595 lbs)
• Bucket Capacity: 0.2 m³ (7.06 ft³)
• Maximum Lifting Force: 1200 kg (2646 lbs)
• Operating Speed: 0–5.8 km/h (0–3.6 mph)
• Gradeability: 30%
• Operating Weight: 1420 kg (3131 lbs)

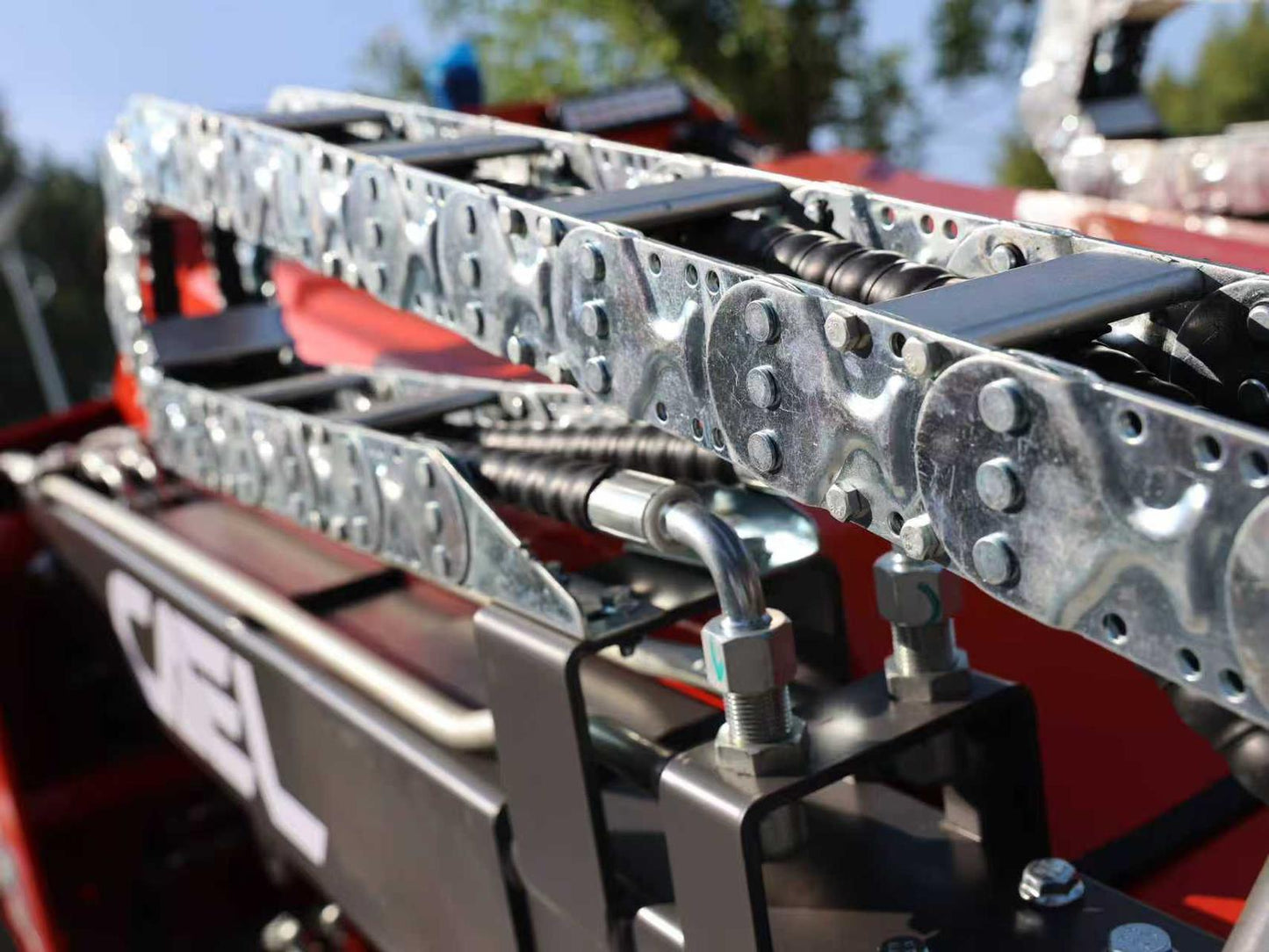

Hydraulic System

• Rated Pressure: 17 MPa (170 bar)

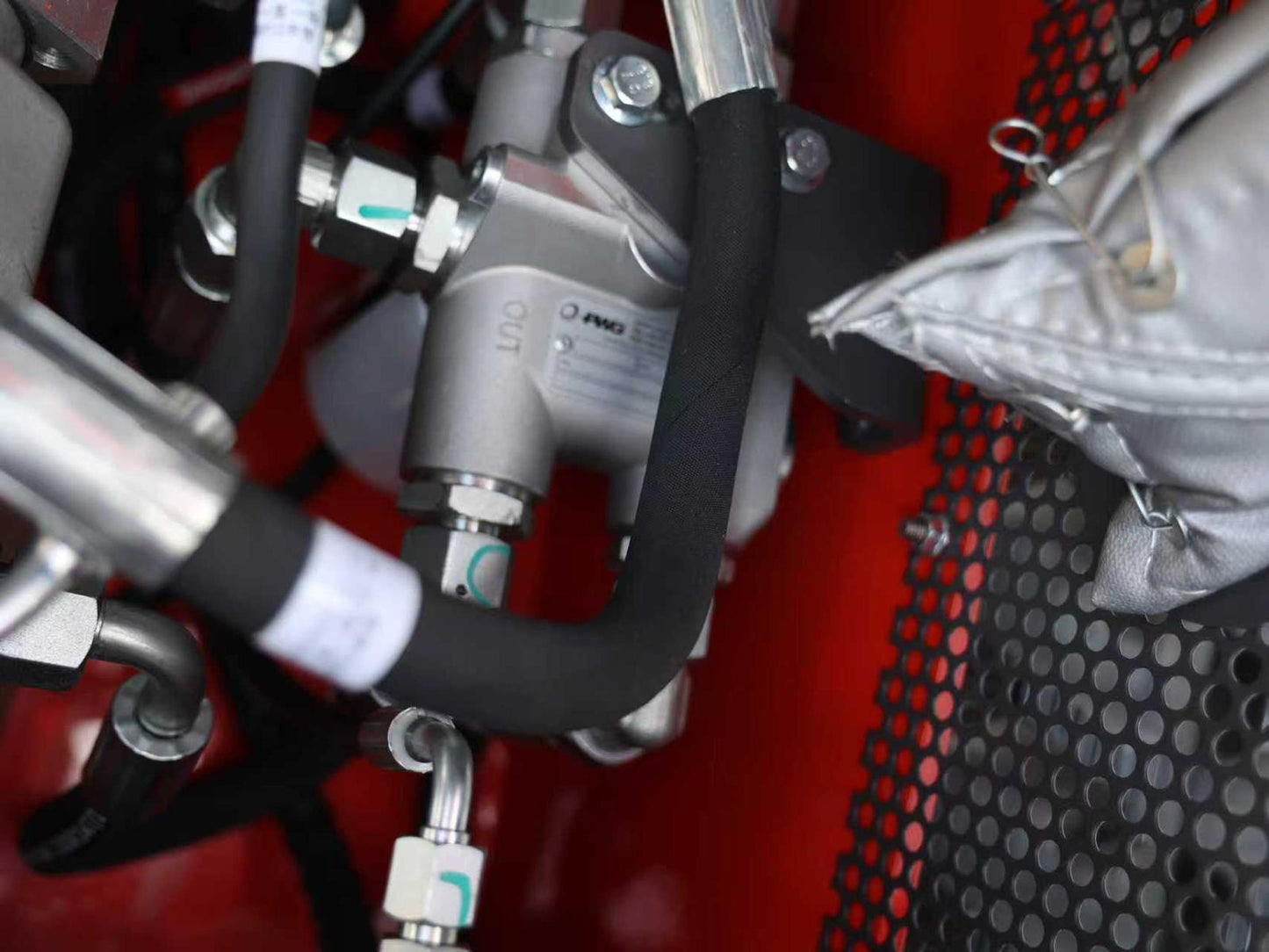

• Hydraulic Pump: PWG / Bondioli & Pavesi (Italy)
• Hydraulic Motor: Danfoss (Denmark)
• Control Valve: Hydrocontrol (Italy)
• Auxiliary Flow: 43 L/min
• Lifting Time: 3.5 seconds
• Lowering Time: 2.4 seconds
• Dumping Time: 1.5 seconds

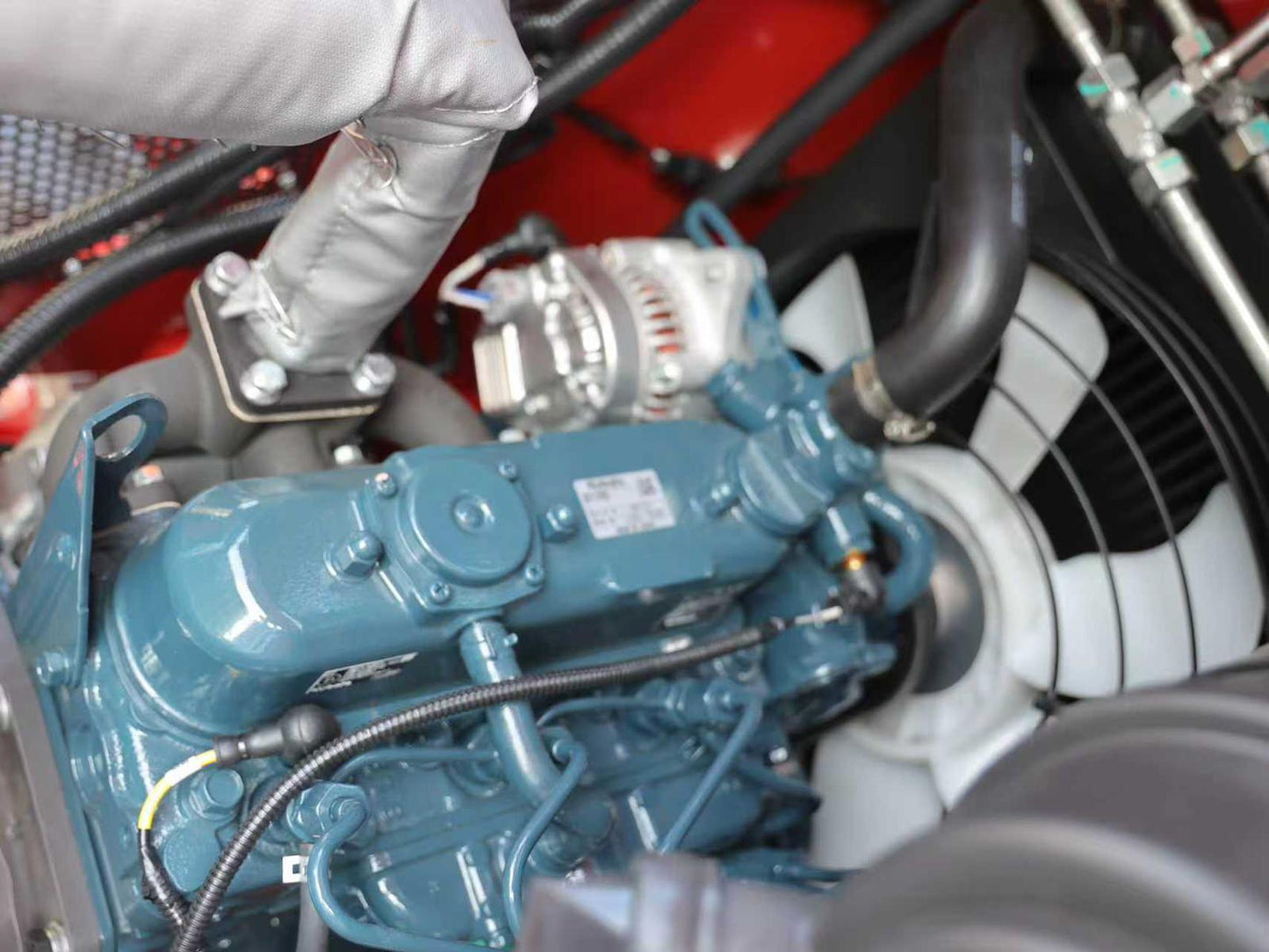

Engine Specifications

• Brand: Kubota
• Model: D1105
• Type: Diesel, water-cooled, 3-cylinder
• Power Output: 18.2 kW @ 3000 RPM (≈ 24.4 HP)
• Max Torque: 70.4 Nm @ 2200 RPM
• Engine Oil Capacity: 5.1 L

Fluid Capacities

• Fuel Tank: 29 L
• Hydraulic Oil Tank: 38 L

Key Advantages

• High lifting capacity with compact footprint
• Premium hydraulic components for long-term reliability
• Efficient fuel consumption with Kubota engine
• Fast cycle times for increased productivity
• Ideal for tight spaces and versatile job applications

Applications

Suitable for:

• Construction and site work
• Landscaping and material handling
• Agricultural operations
• Industrial and warehouse use
