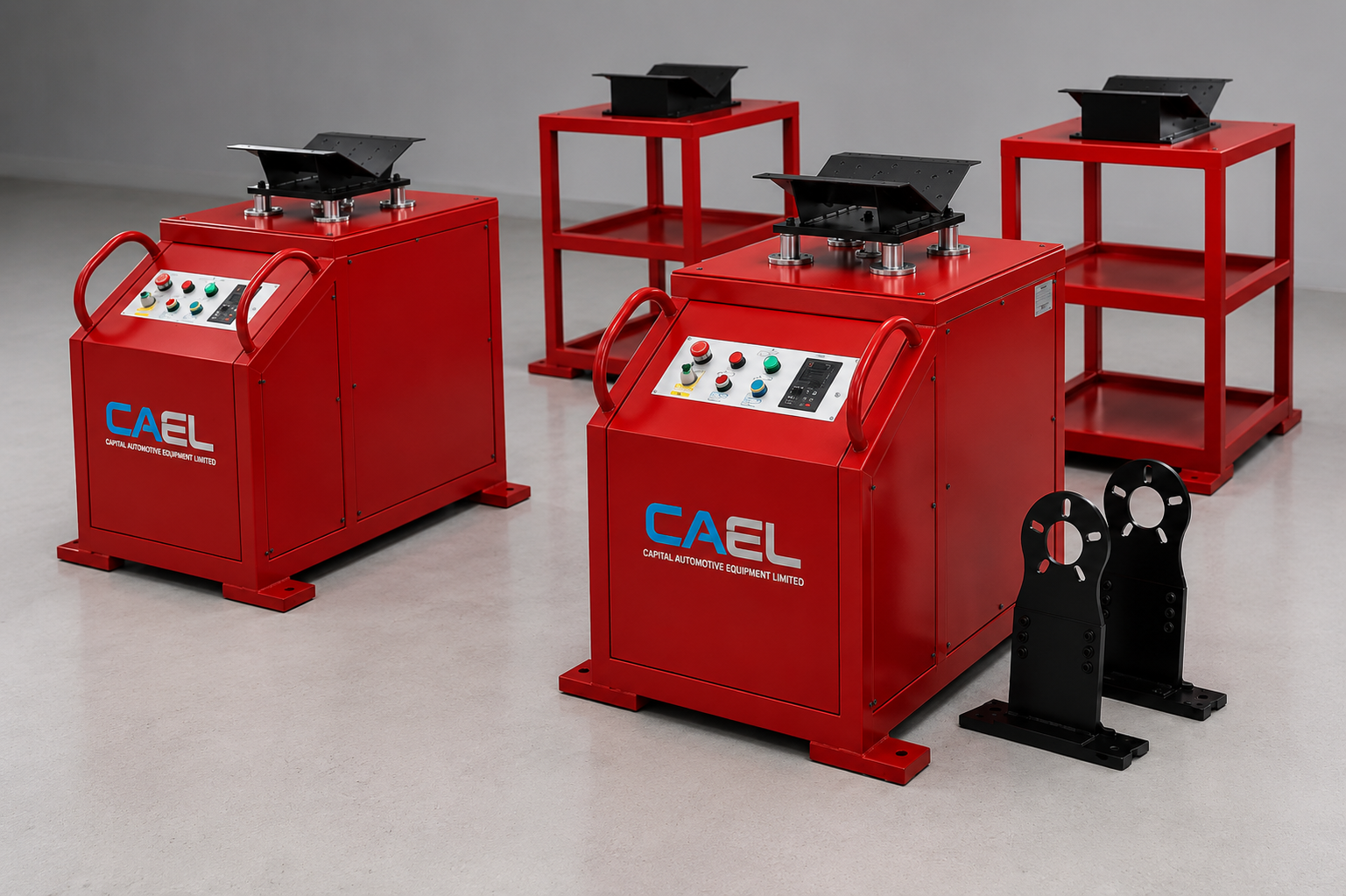

Description:
The Chassis Road Simulator is designed for abnormal noise inspection and chassis suspension testing. It helps detect suspension and chassis-related noises accurately by simulating real road conditions and vibrations for vehicle inspection and maintenance applications.

Features:

• Multi-frequency and high-torque motor drive system
• Maximum load capacity up to 3000KG
• Suitable for inspection of more than 95% of vehicles
• Equipped with safety emergency stop button
• One-button stop lock and safety leakage protection device
• Microcrystalline regulator control for different working frequencies
• Simulates different bumpy road conditions for accurate detection
• High inspection precision and stable operation

Technical Specifications:

• Total Weight Lifting Capacity: 3000KG
• Vibration Range: 10–20HZ
• Working Voltage: 380V
• Lifting Height: 30mm
• Net Weight: 720KG (set of six)
• Motor Power: 2.2KW
• Equipment Size: 860 × 700 × 1030mm
• Control Mode: Microcrystalline Regulator
• Packing Size: 930 × 790 × 1150mm
