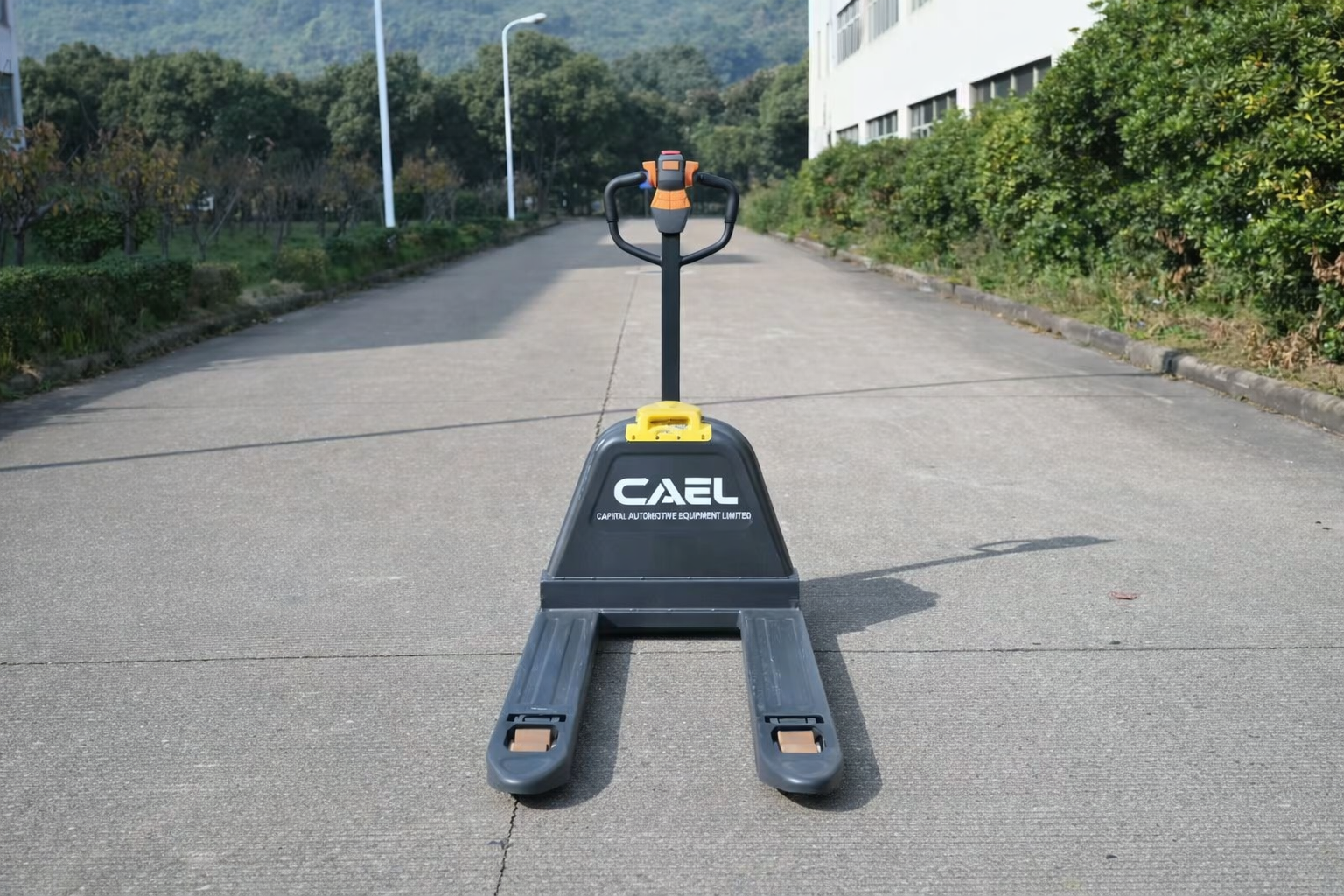

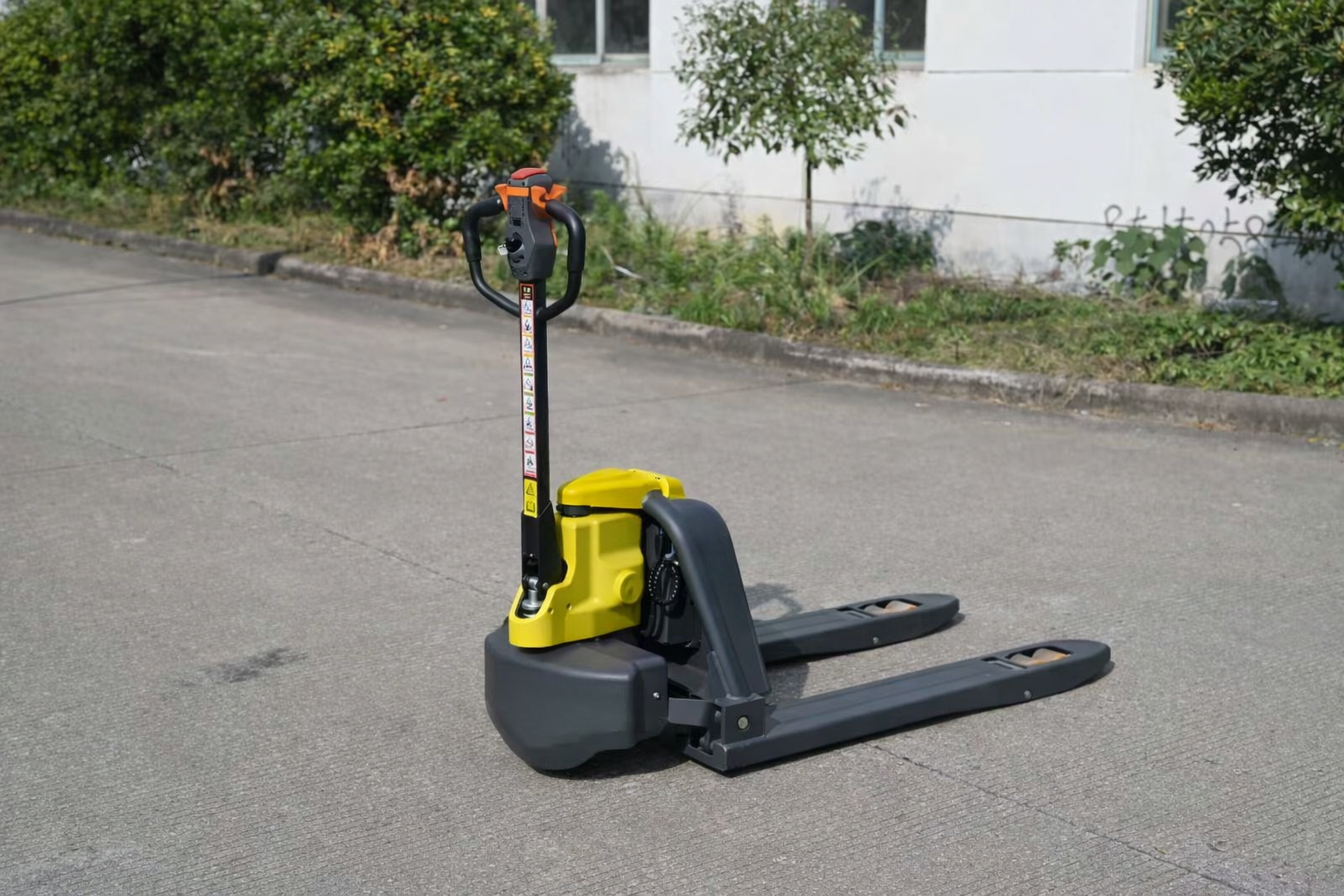

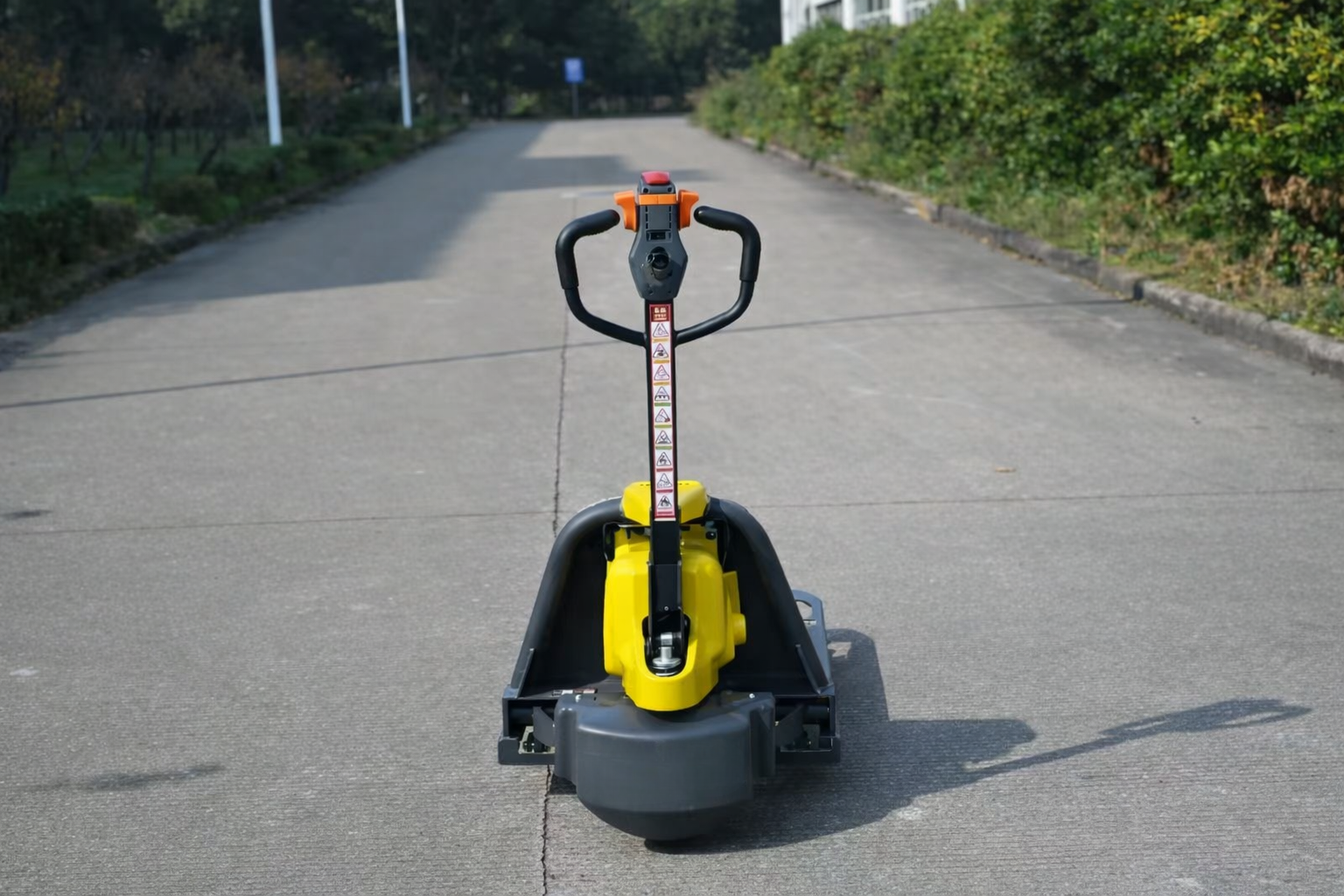

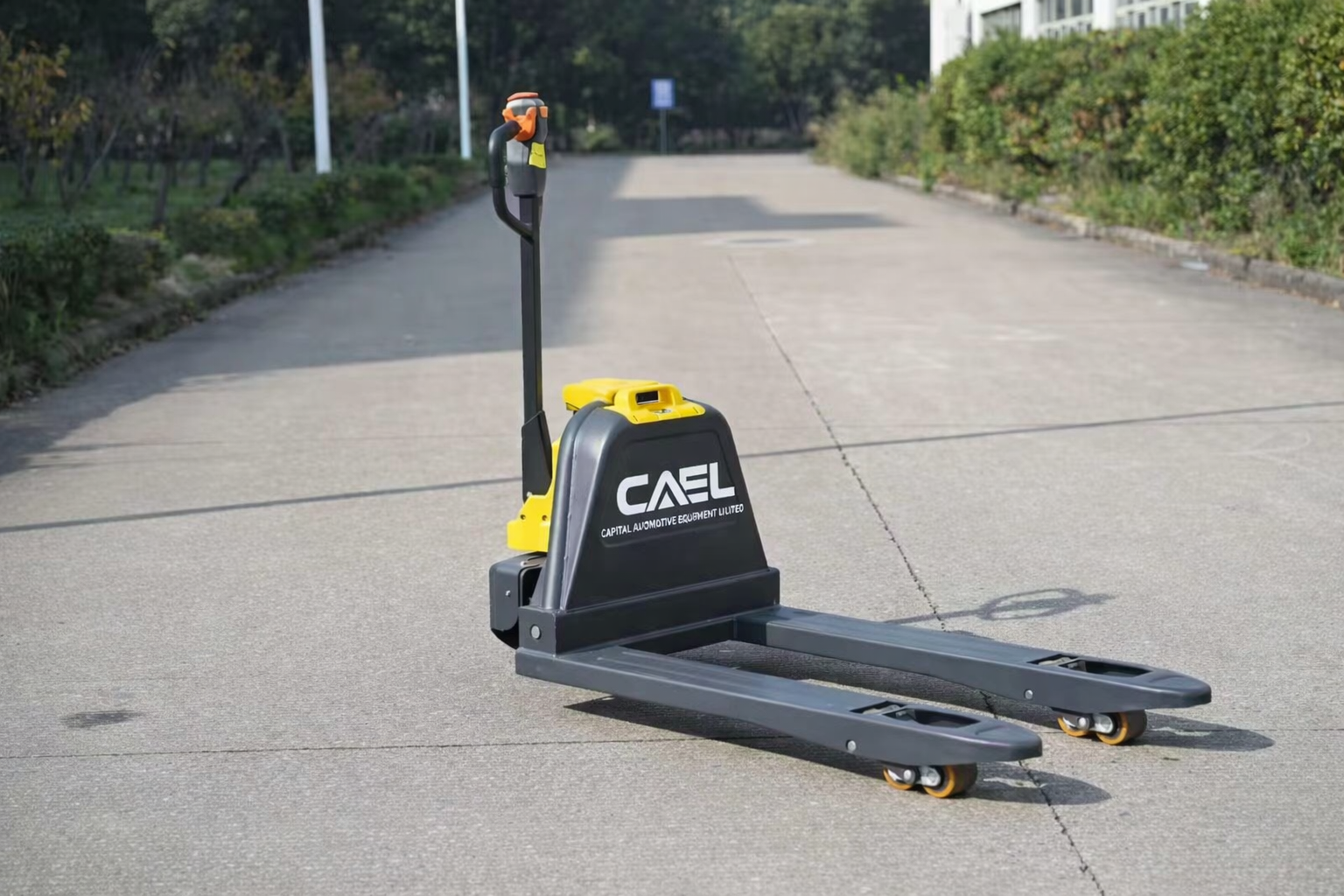

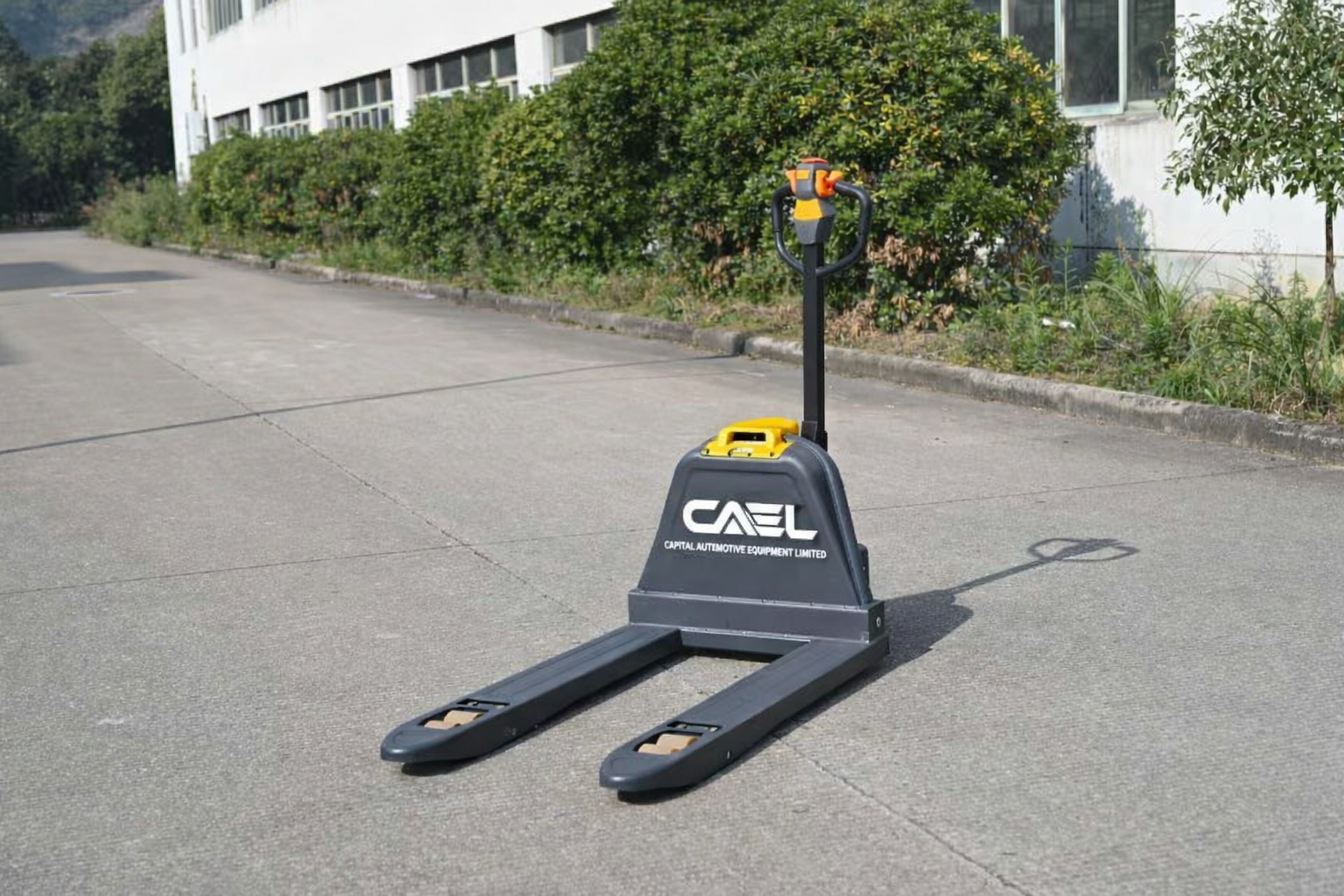

CAEL Full Electric Pallet Jack – 3300 lbs Capacity

Compact • Lithium Powered • Efficient Warehouse Solution

Discover the New CAEL Full Electric Pallet Jack 3300 lbs, a nimble and efficient pallet handling solution designed for compact warehouses, retail stockrooms, light industrial facilities, loading areas, and daily pallet movement.

Built with a 1500 kg (3307 lbs) load capacity, lithium battery system, compact turning radius, and user-friendly controls, this pallet jack delivers smooth, effortless pallet transport while improving workplace productivity.

Perfect for businesses upgrading from manual pallet jacks to powered efficiency.

---

Key Features & Benefits

Strong Load Capacity

• 1500 kg / 3307 lbs capacity
• Suitable for pallets, cartons, stock, and warehouse goods

Compact Warehouse Design

• Slim body for tight aisles and limited spaces

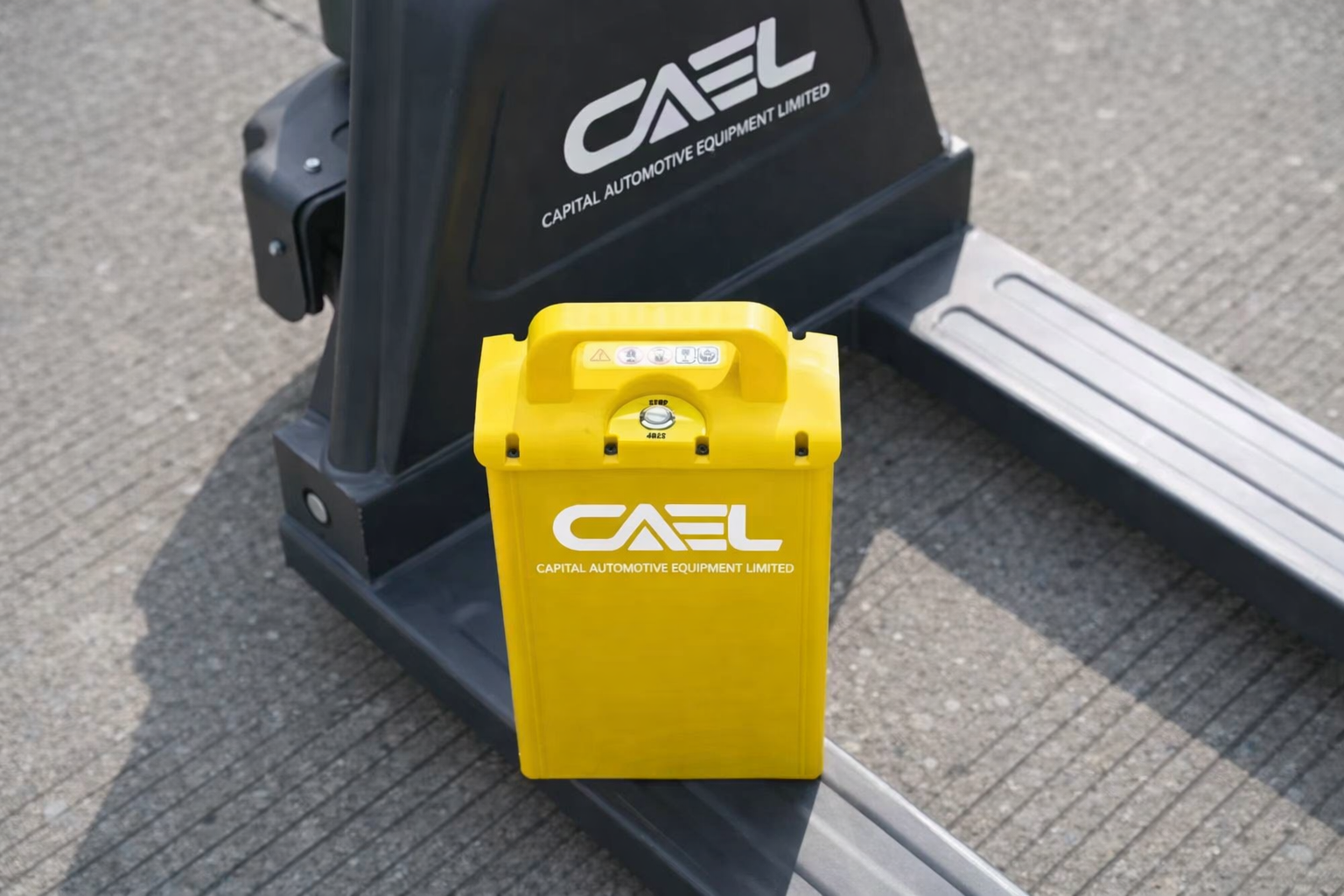

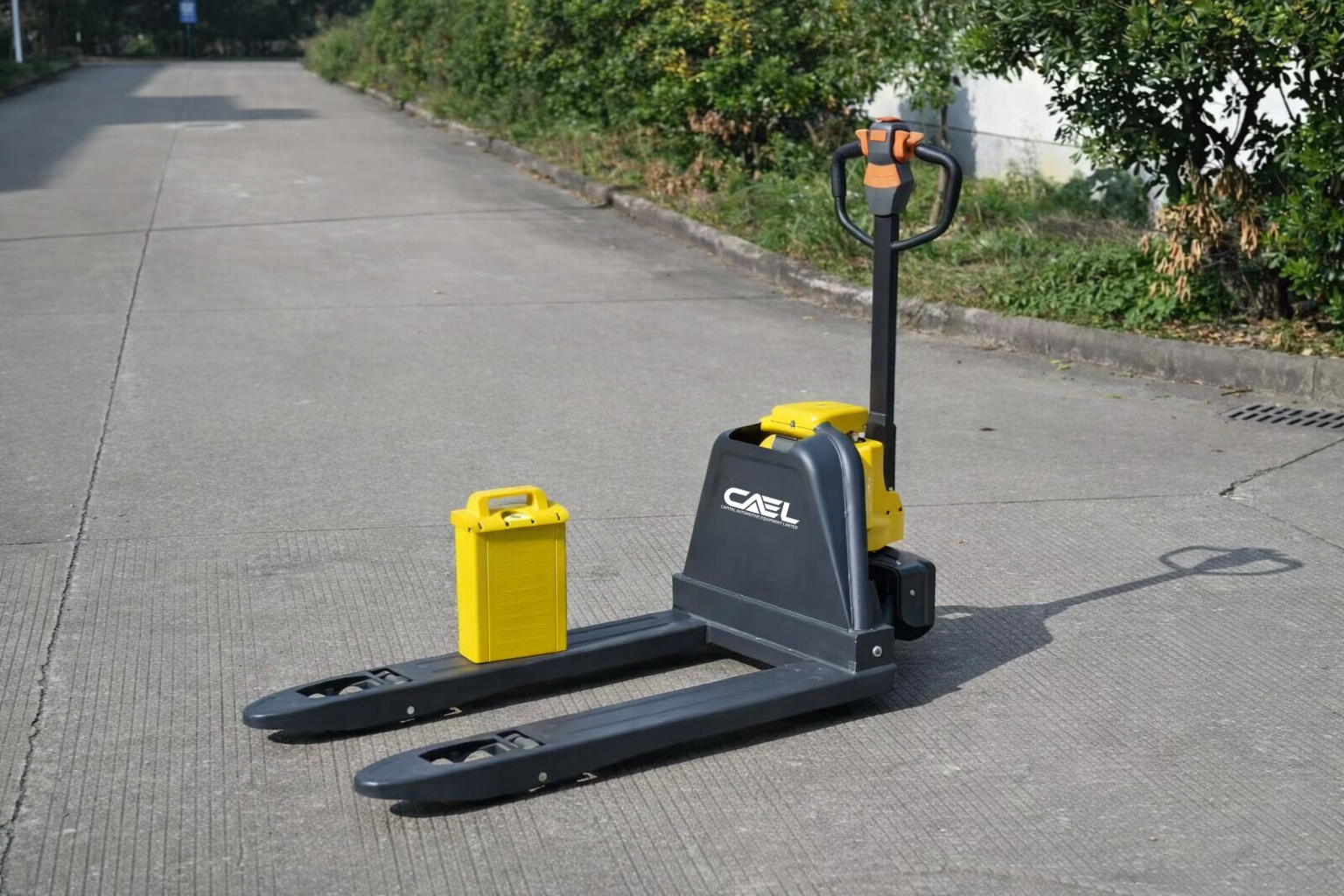

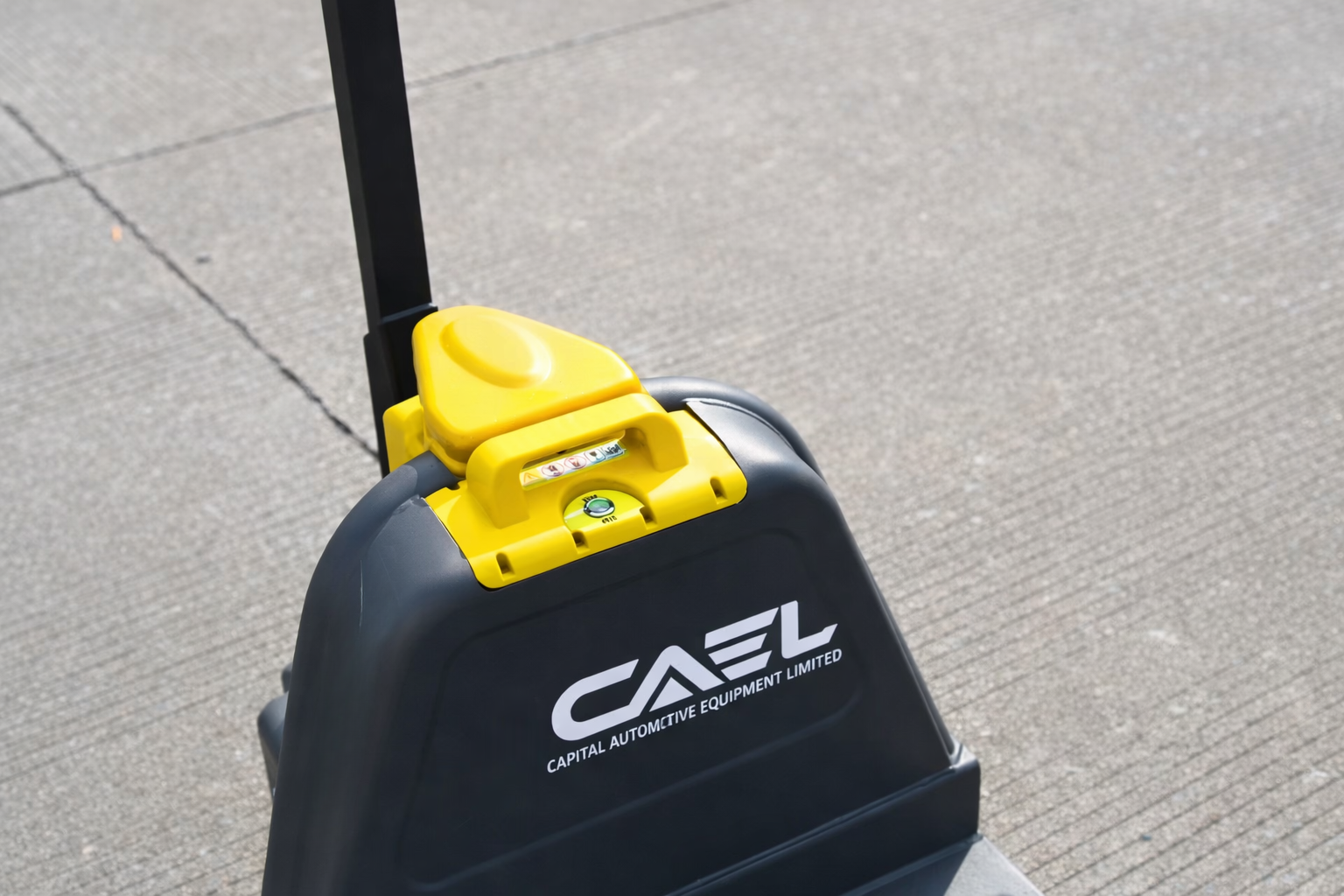

Lithium Battery Powered

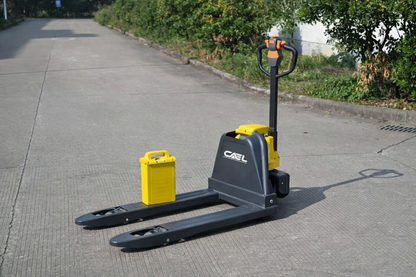

• Lightweight removable battery
• Fast charging and low maintenance

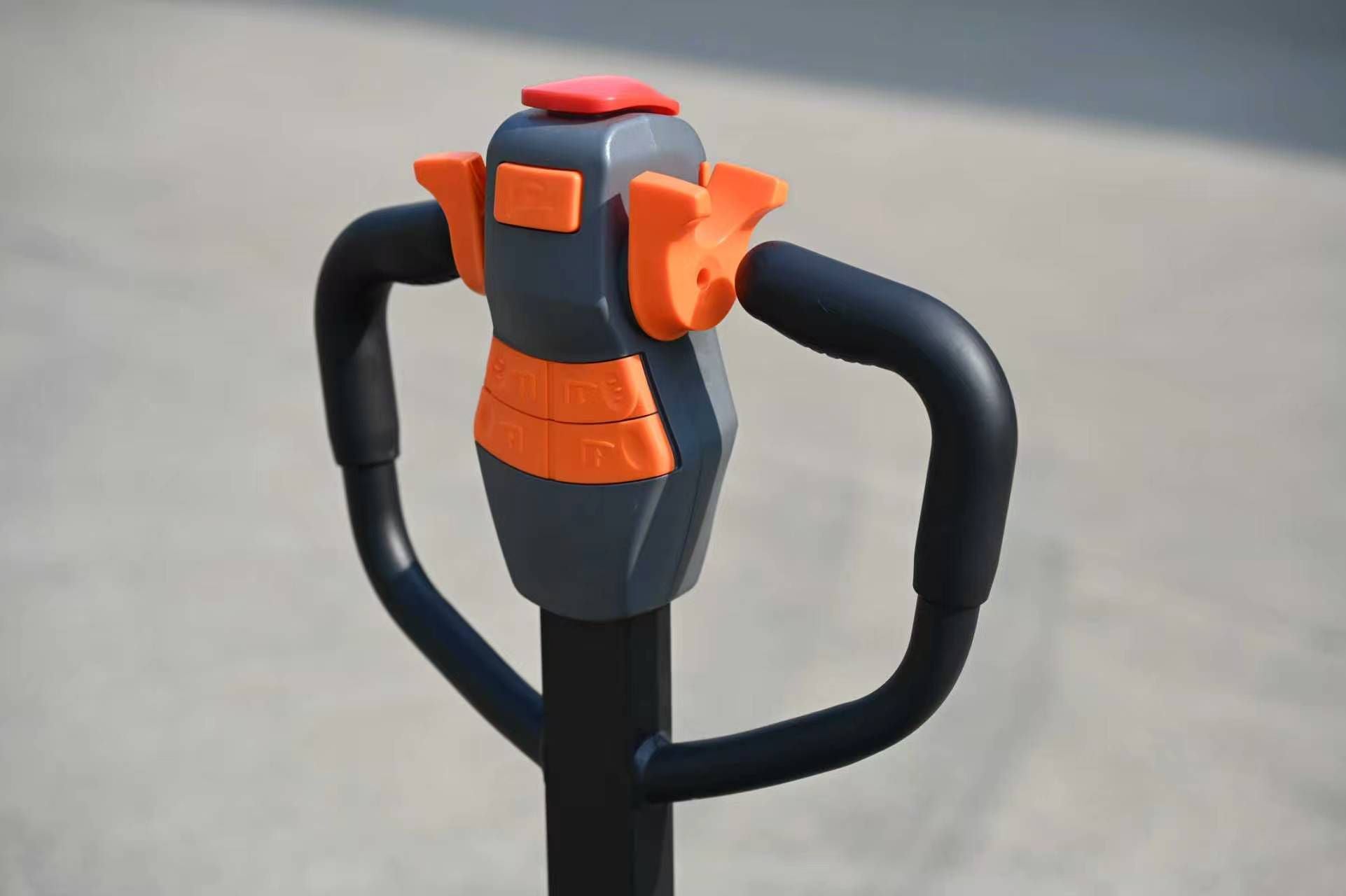

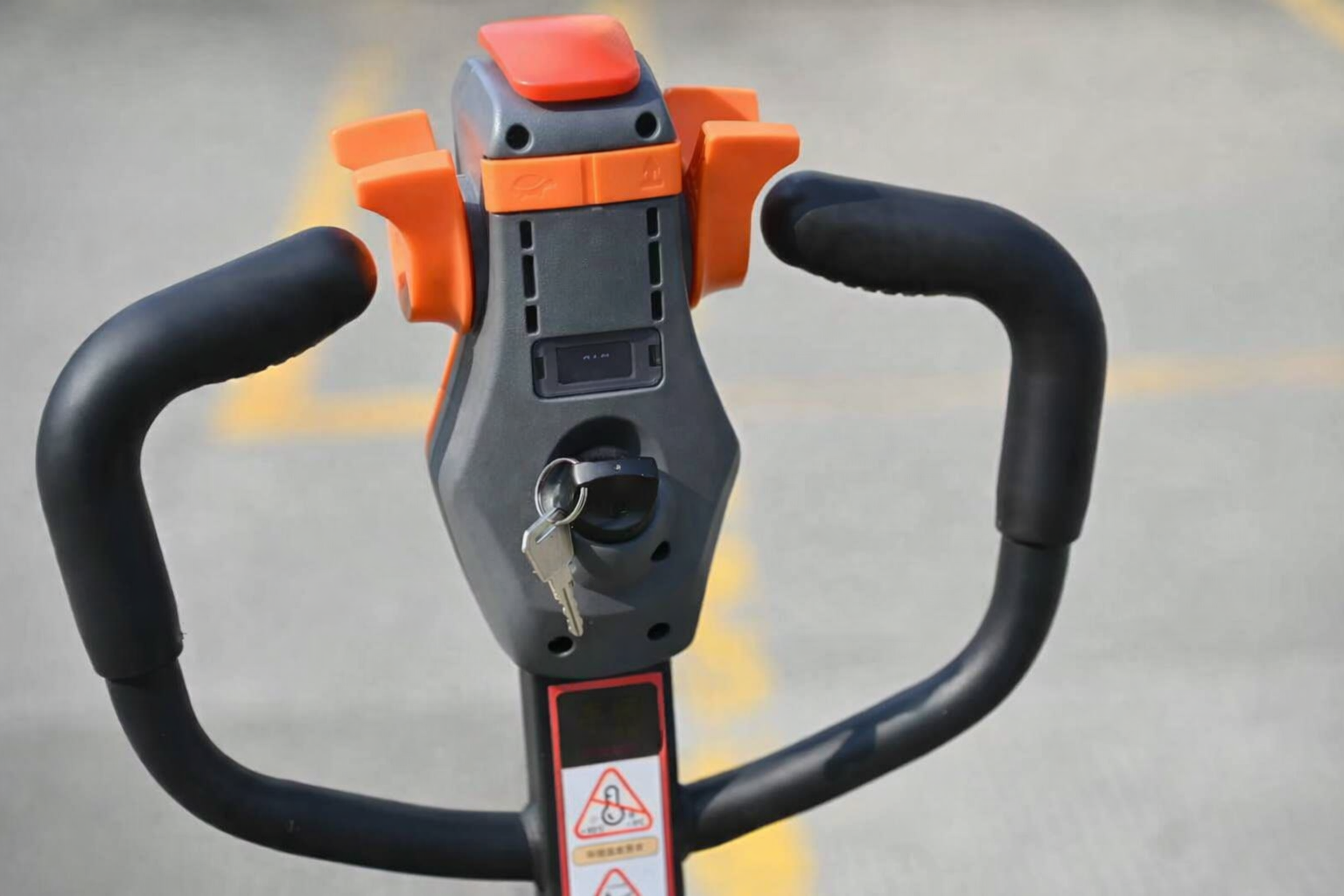

Easy Handling

• Mechanical tiller steering
• Familiar operation for manual pallet jack users

Smooth Performance

• Controlled lift/lower speed
• Stable travel speed for safer movement

Quiet Operation

• Approx. 70 dB(A) noise level

Floor-Friendly Wheels

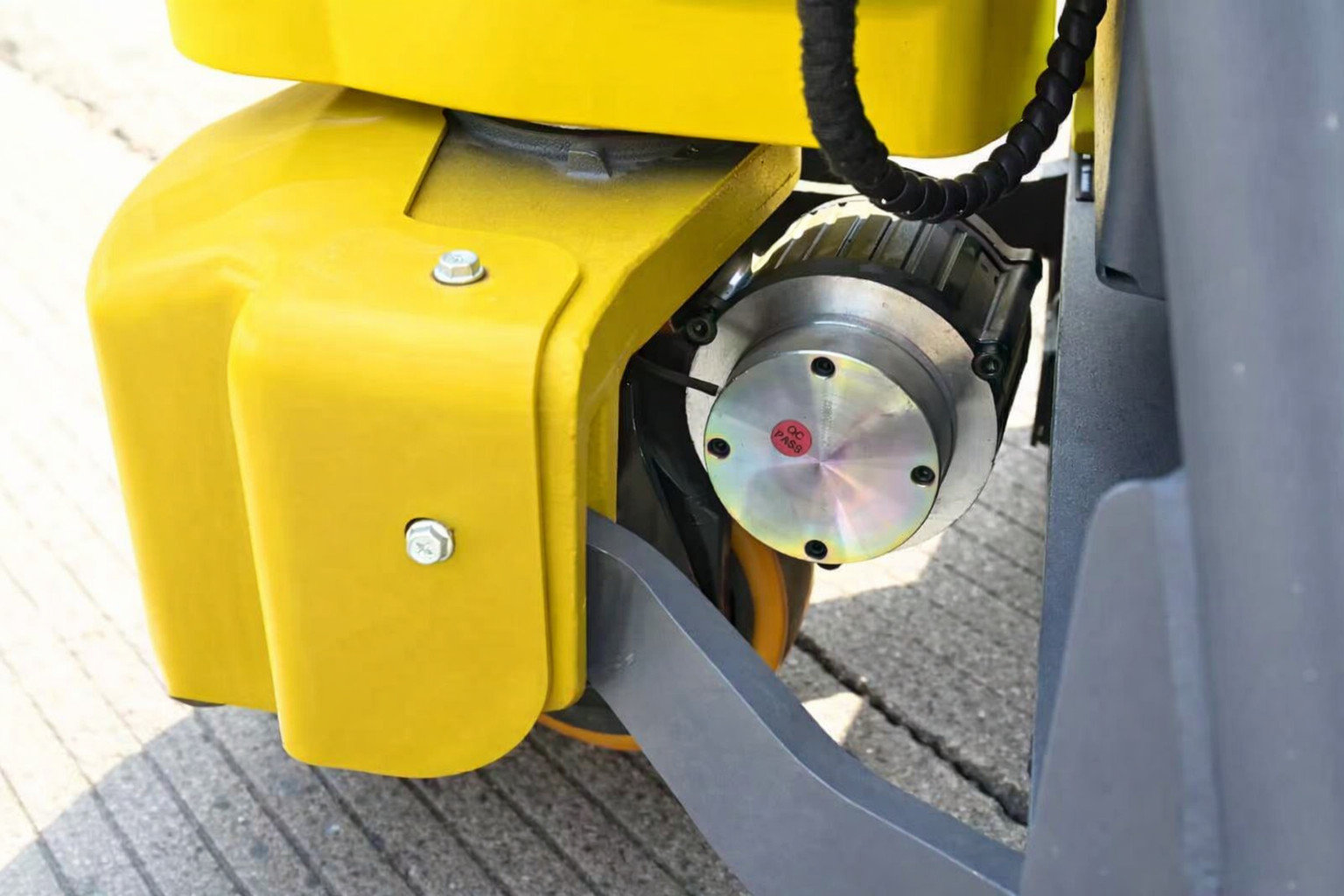

• PU drive wheel for traction and reduced floor wear

---

Dimensions & Design

Overall Size

• Length: 1587 mm / 62.5 in
• Width: 550 mm / 21.7 in
• Height (Handle): 1255 mm / 49.4 in

Fork Specifications

• Fork Length: 1150 mm / 45.3 in
• Fork Width: 160 mm / 6.3 in
• Fork Thickness: 55 mm / 2.2 in

Fork Spacing

• Inside Width: 230 mm / 9.1 in
• Outside Width: 550 mm / 21.7 in

Fork Height

• Lowered Height: 85 mm / 3.3 in
• Raised Height: 200 mm / 7.9 in

Lift Travel

• 115 mm / 4.5 in

---

Maneuverability

Wheelbase

• 1175 mm / 46.3 in

Turning Radius

• 1345 mm / 52.9 in

Minimum Aisle Width

• 1843 mm / 72.6 in (800×1200 pallets)
• 1925 mm / 75.8 in (1000×1200 pallets)

---

Performance

Travel Speed

• 4 km/h / 2.5 mph (loaded or unloaded)

Lift Speed

• 30 mm/s / 1.2 in/s

Lowering Speed

• 35 mm/s / 1.4 in/s

Gradeability

• Up to 8% incline

---

Electrical System

Lift Motor

• 0.6 kW DC Motor
• Optional 0.8 kW upgrade

Battery

• 48V / 10Ah Lithium Battery
• Approx. 7 kg / 15.4 lbs

Optional Battery

• 15Ah Upgrade Available

Charger

• 48V / 3A External Charger
• Optional 5A Charger

Controller

• DS1000 Integrated Controller

---

Weight

Service Weight

• Approx. 130 kg / 287 lbs

---

Ideal Applications

✔ Retail stockrooms
✔ Compact warehouses
✔ Loading docks
✔ Delivery operations
✔ Light manufacturing
✔ Daily pallet movement
✔ Replacing manual pallet jacks

---

Why Choose CAEL Full Electric Pallet Jack?

The CAEL Full Electric Pallet Jack combines compact maneuverability, lithium battery convenience, and smooth powered handling—making it the ideal upgrade from manual pallet jacks.

Perfect for businesses needing affordable, efficient, and operator-friendly pallet movement.

---

Core Advantages

✔ 3307 lb capacity
✔ Lithium battery system
✔ Compact narrow aisle design
✔ Quiet operation
✔ Smooth powered lifting
✔ Easy steering
✔ Warehouse ready

---

Request a Quote

Contact us today for pricing, stock availability, battery upgrade options, and more electric pallet truck models tailored to your operation.
