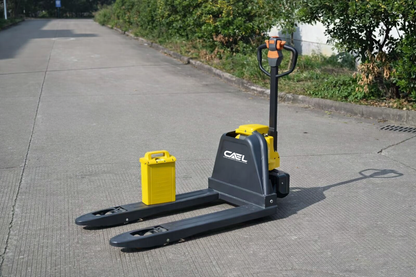

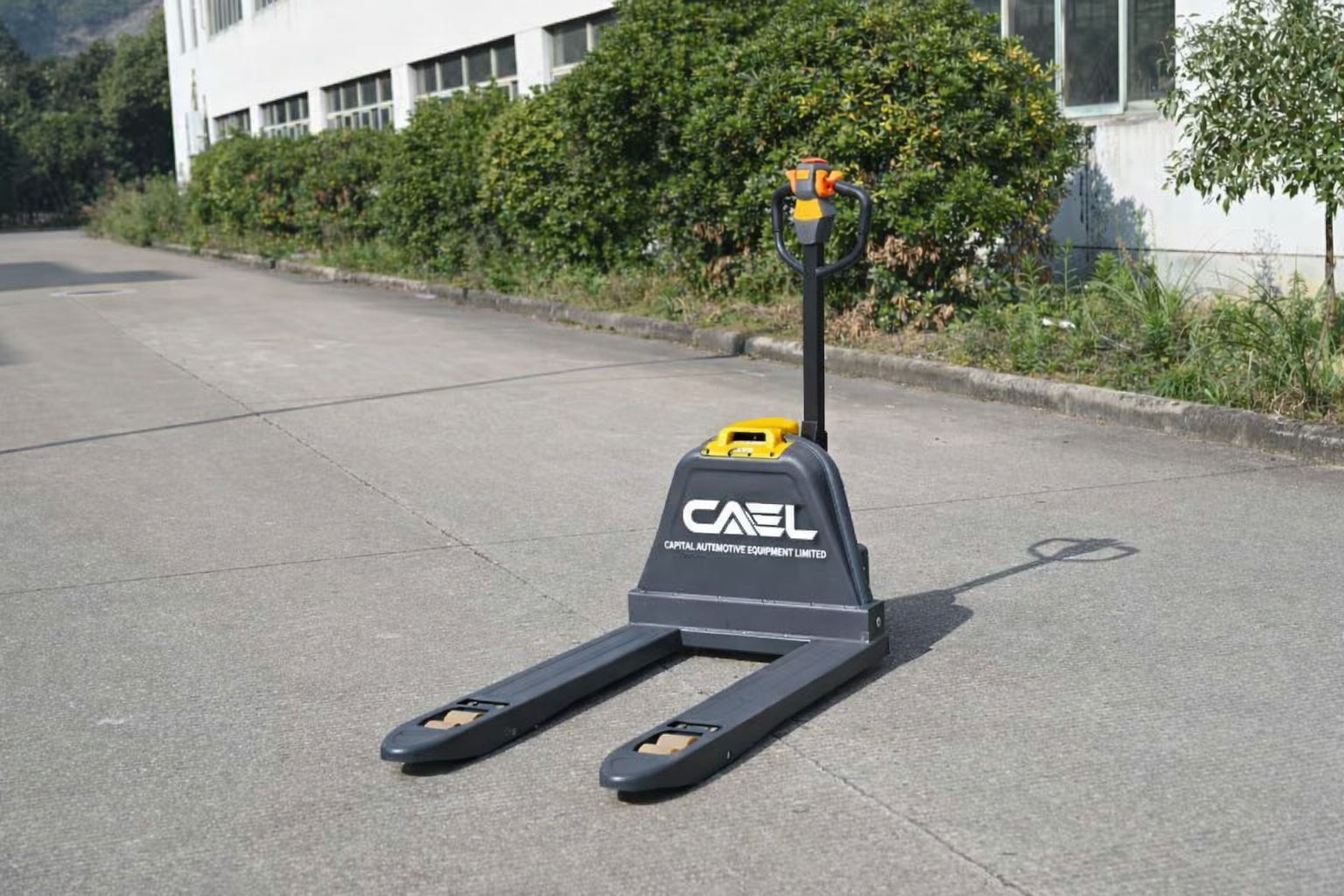

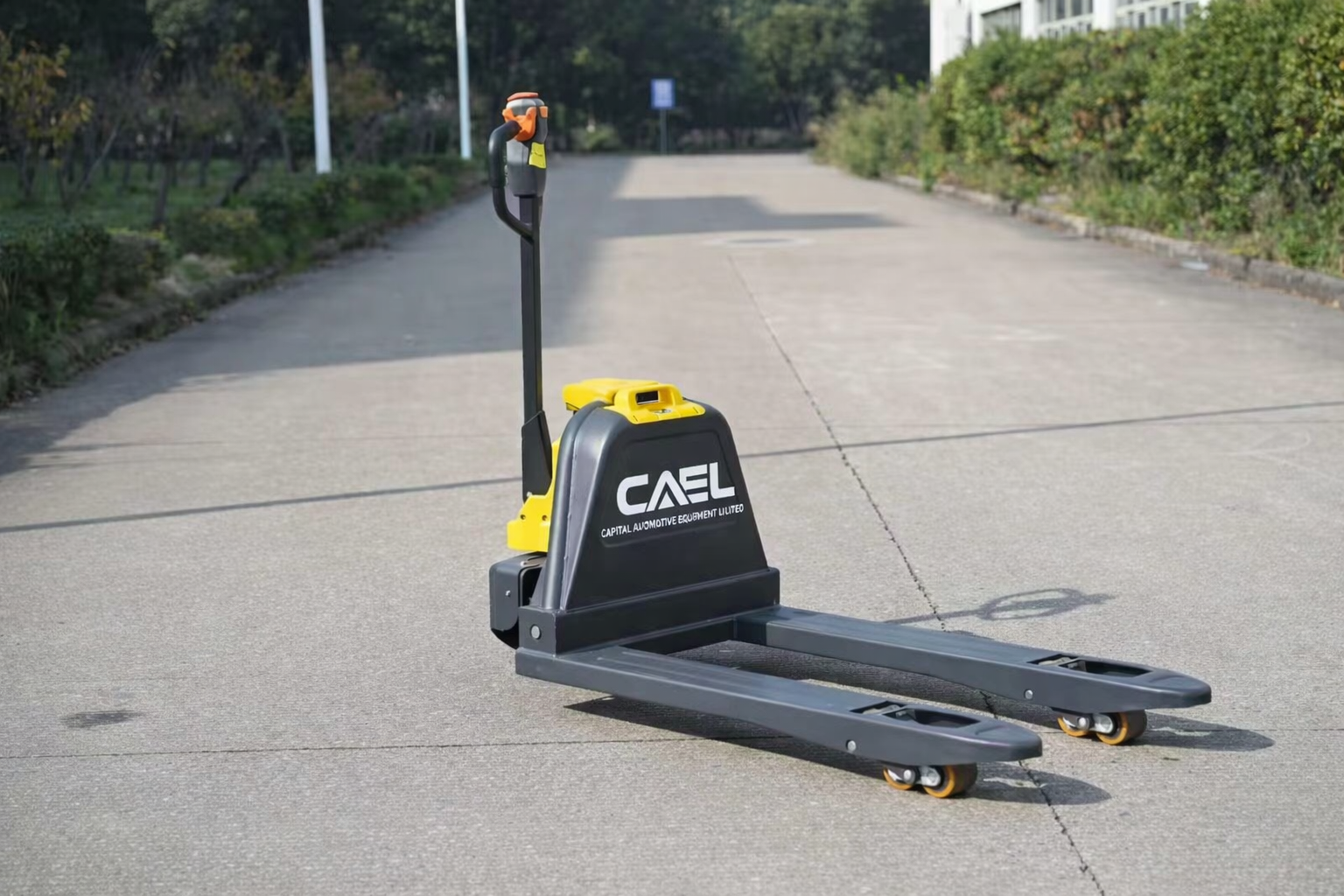

CAEL Full Electric Pallet Jack – 4400 lbs Capacity

Heavy-Duty • Compact • Lithium Powered Warehouse Solution

Elevate your material handling with the New CAEL Full Electric Pallet Jack 4400 lbs, a compact and powerful electric pallet truck engineered for warehouses, factories, distribution centers, loading docks, and heavy daily pallet movement.

Built with a strong 2000 kg (4409 lbs) load capacity, compact chassis, lithium battery system, and smooth electric drive, this pallet jack is ideal for handling heavier pallets in tighter spaces.

Perfect for businesses upgrading from manual pallet jacks to efficient powered pallet handling.

---

Key Features & Benefits

Heavy-Duty Load Capacity

• 2000 kg / 4409 lbs capacity
• Suitable for pallets, stock, industrial goods, and warehouse materials

Compact Industrial Design

• Maneuvers easily in narrow aisles and limited spaces

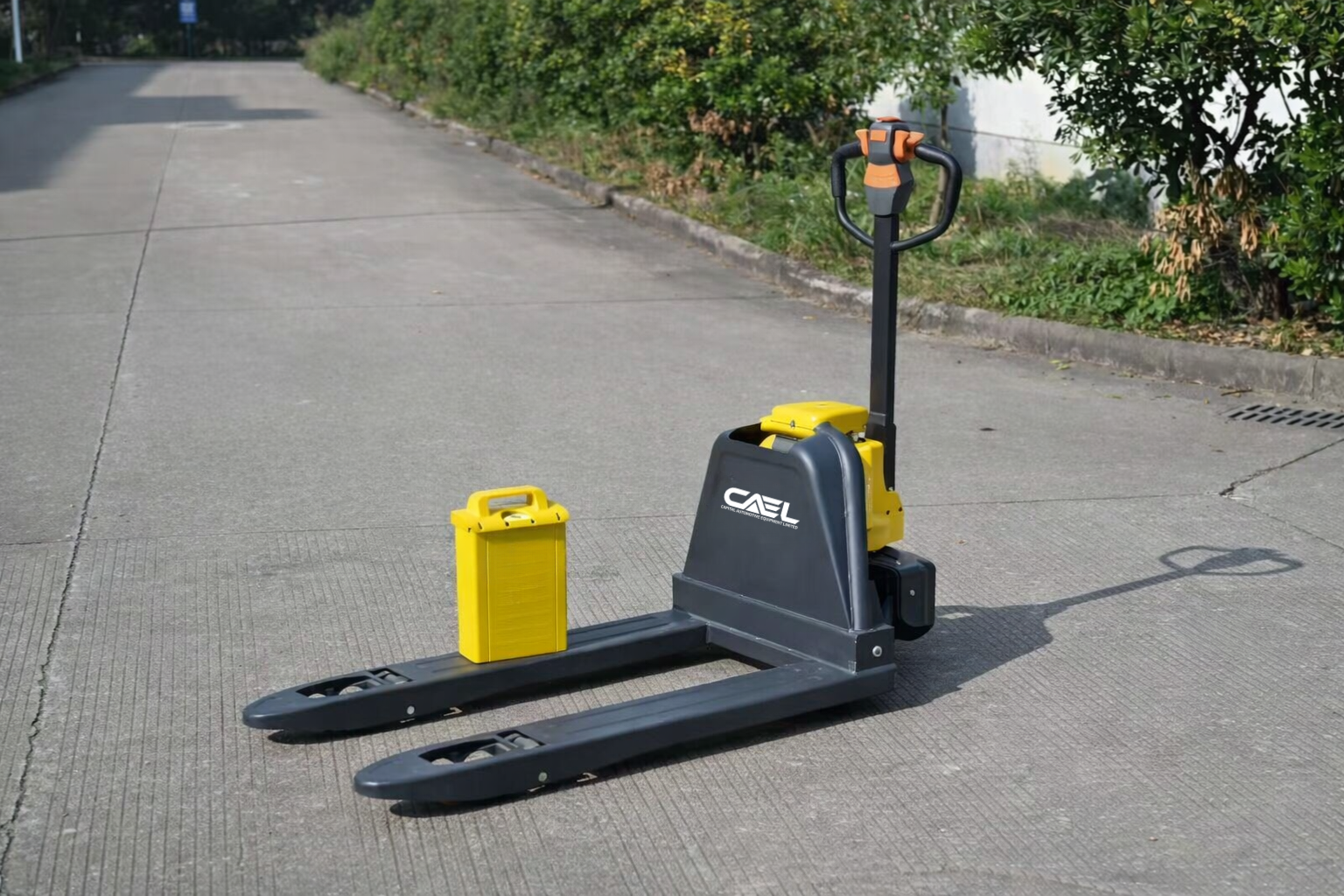

Lithium Battery Powered

• Lightweight removable battery
• Low maintenance and efficient charging

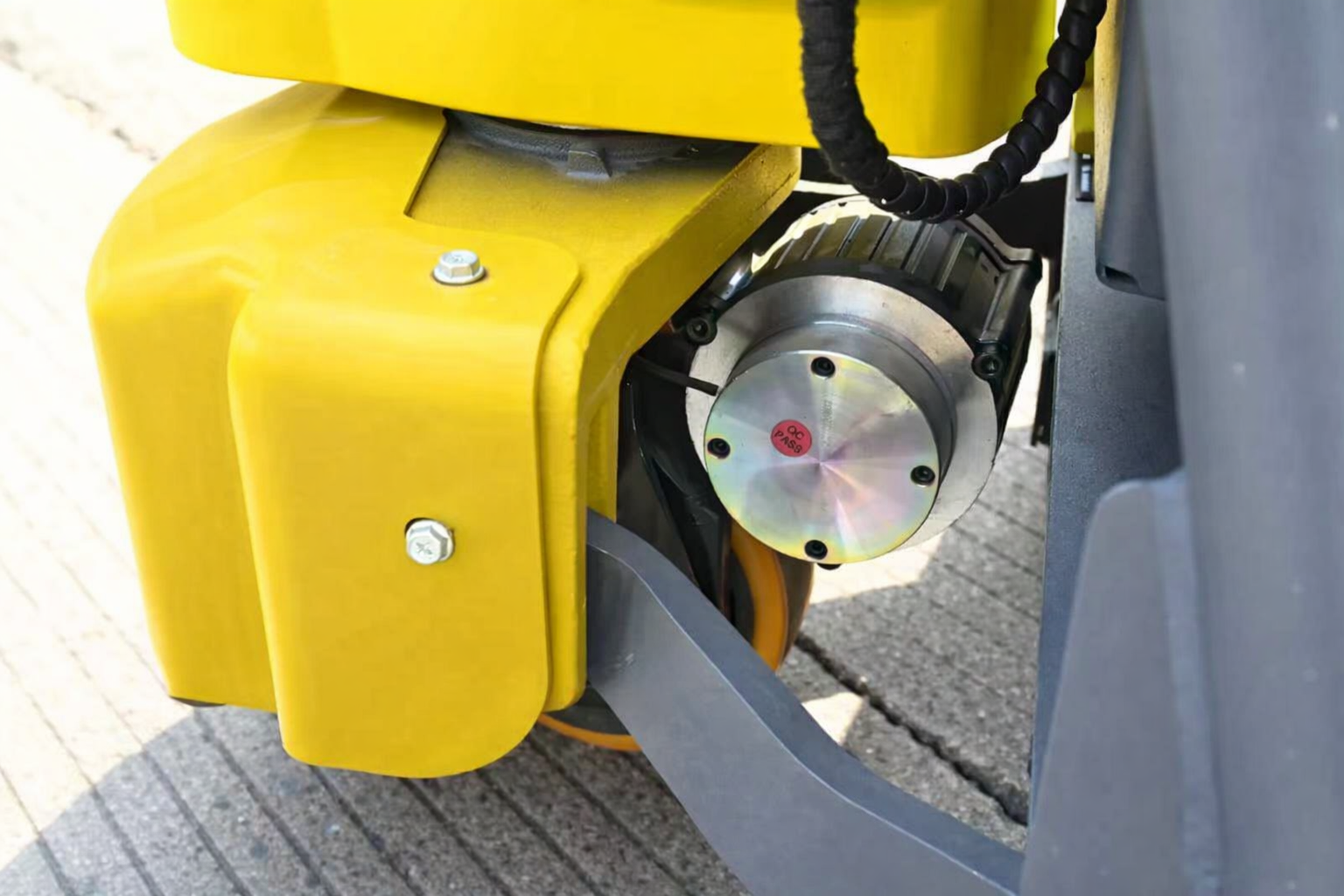

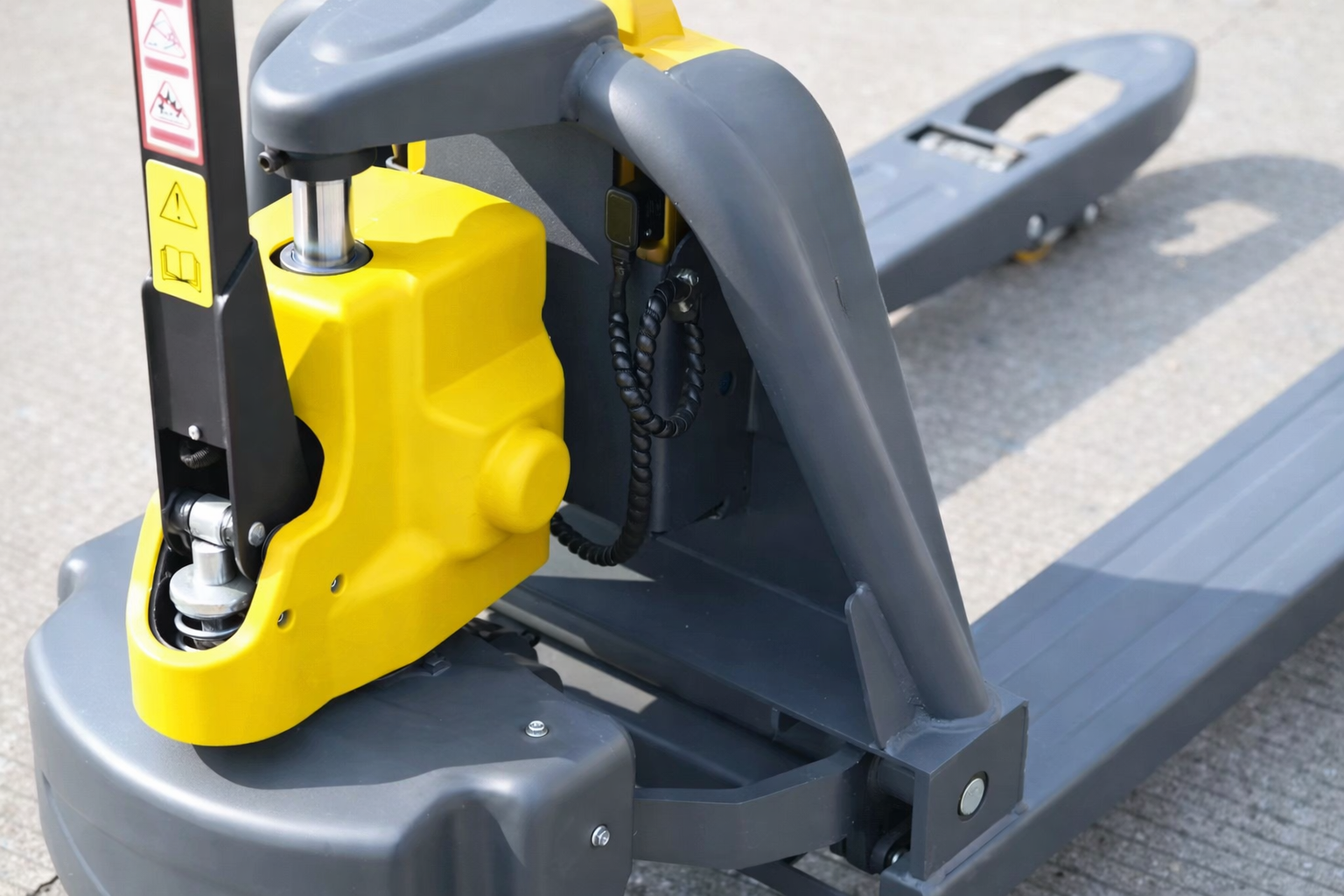

Smooth Powered Operation

• Electric travel and lift system reduce operator effort

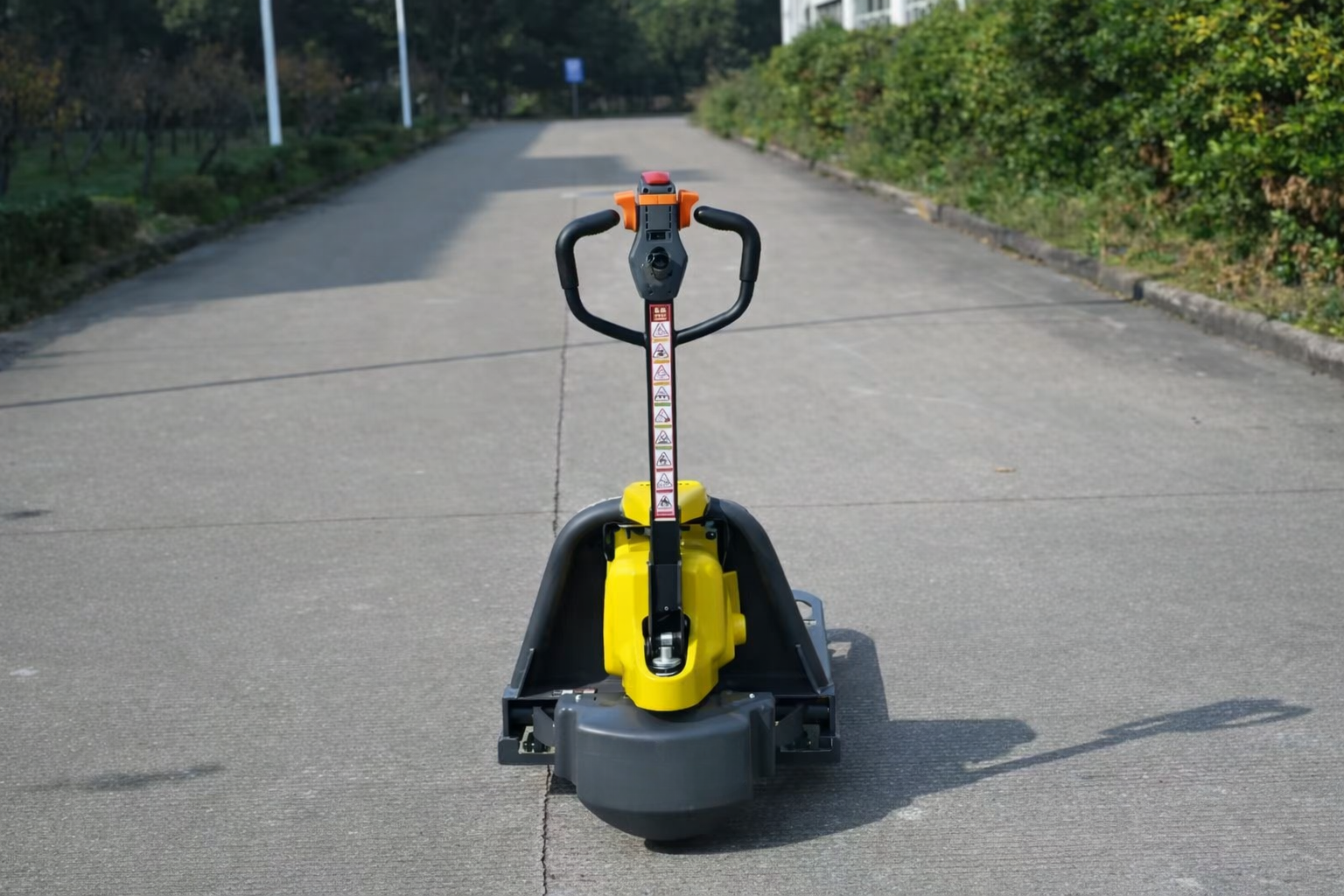

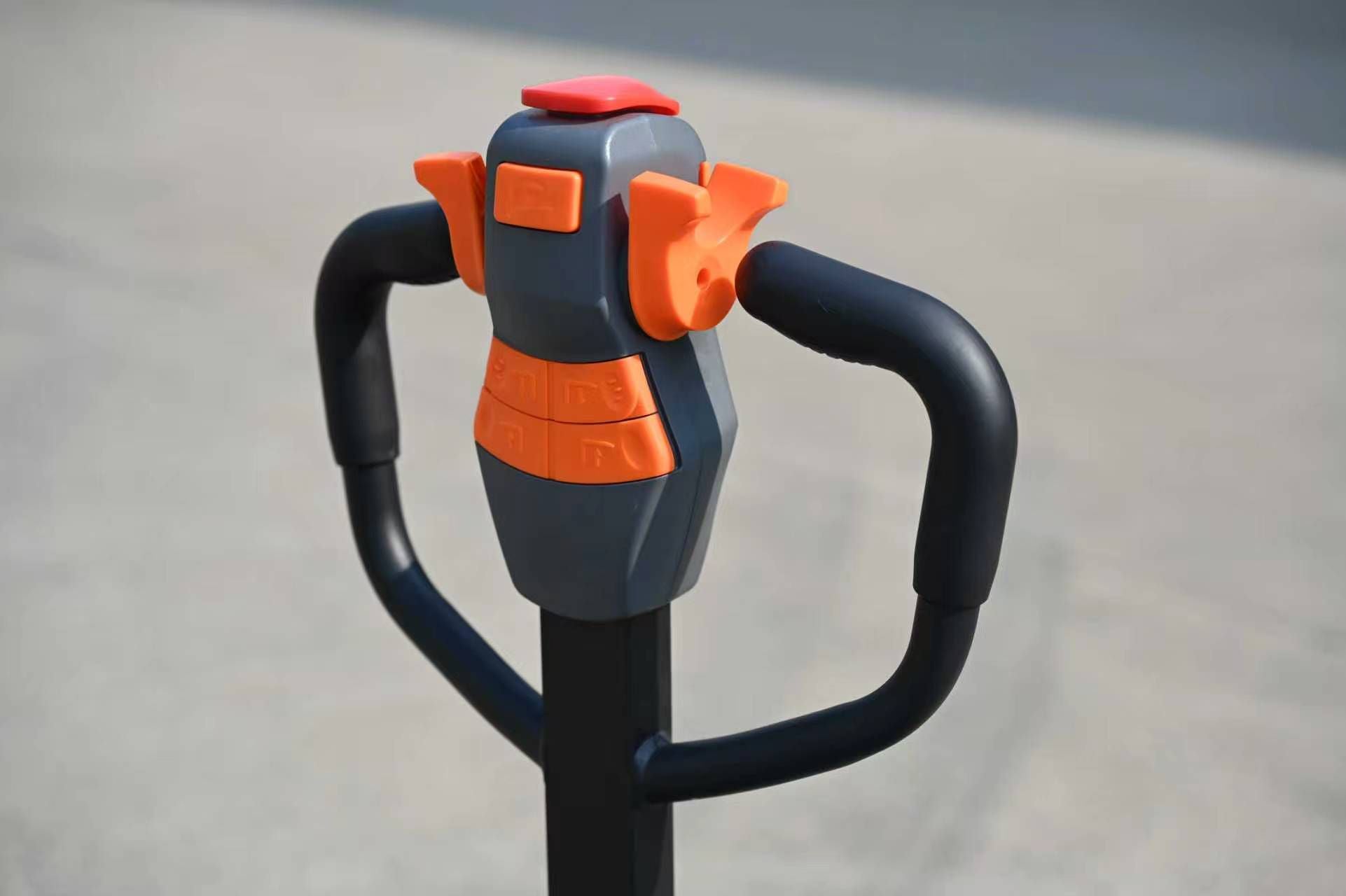

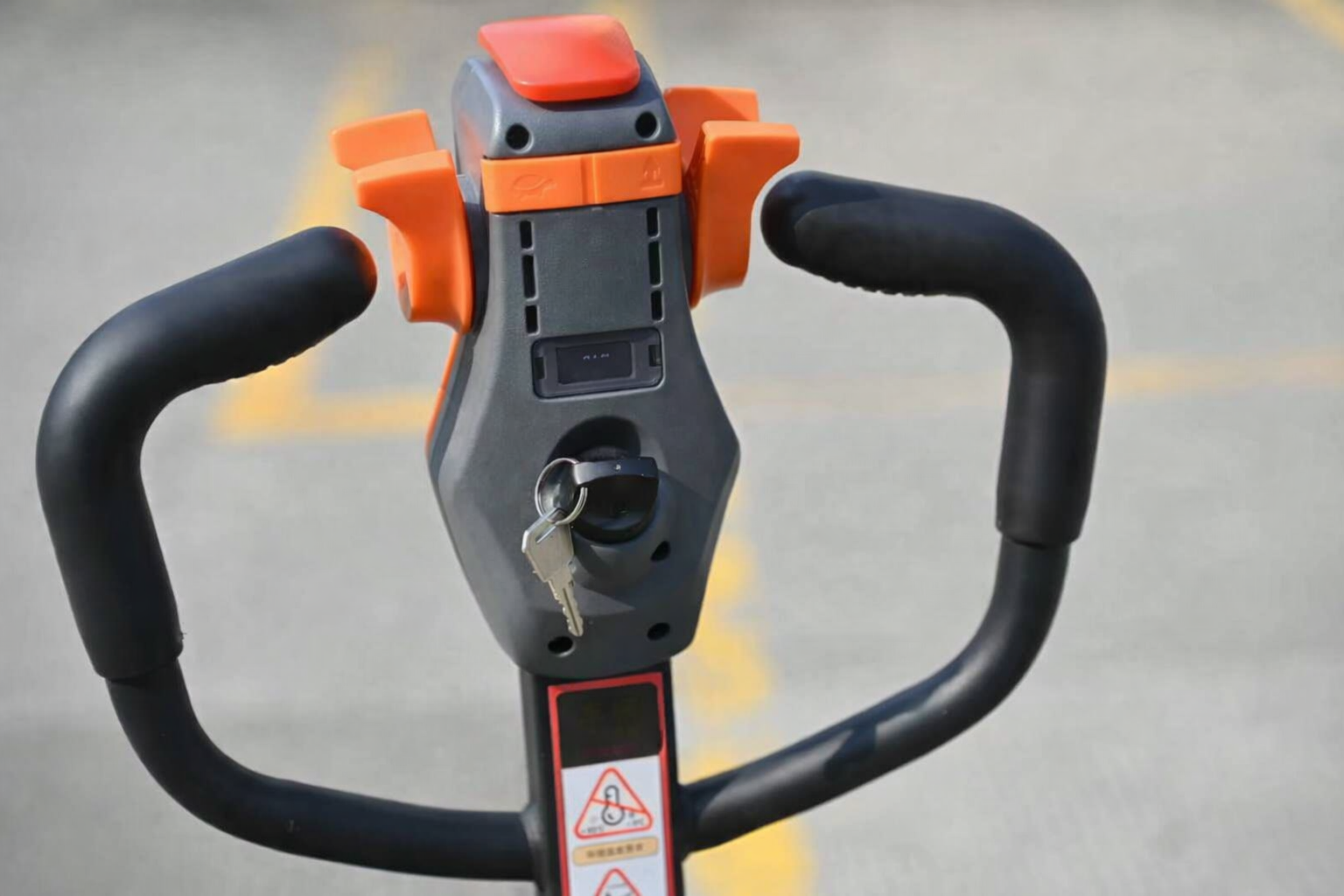

Easy Steering Control

• Mechanical tiller steering
• Familiar handling for manual pallet jack users

Quiet Workplace Operation

• Approx. 70 dB(A) noise level

Durable PU Wheels

• Stable travel with reduced floor wear

---

Dimensions & Design

Overall Size

• Length: 1637 mm / 64.4 in
• Width: 685 mm / 27.0 in
• Height (with handle): 1255 mm / 49.4 in

Fork Specifications

• Fork Length: 1200 mm / 47.2 in
• Fork Width: 160 mm / 6.3 in
• Fork Thickness: 55 mm / 2.2 in

Fork Spacing

• Inside Width: 365 mm / 14.4 in
• Outside Width: 685 mm / 27.0 in

Fork Height

• Lowered Height: 85 mm / 3.3 in
• Raised Height: 200 mm / 7.9 in

Lift Travel

• 115 mm / 4.5 in

---

Maneuverability

Wheelbase

• 1225 mm / 48.2 in

Turning Radius

• 1395 mm / 54.9 in

Minimum Aisle Width

• 1843 mm / 72.6 in (800×1200 pallets)
• 1925 mm / 75.8 in (1000×1200 pallets)

---

Performance

Travel Speed

• 4.5 km/h / 2.8 mph

Lift Speed

• 35 mm/s / 1.4 in/s

Lowering Speed

• 25 mm/s / 1.0 in/s

Gradeability

• Up to 20% incline

---

Electrical System

Lift Motor

• 0.6 kW DC Motor
• Optional 0.8 kW upgrade

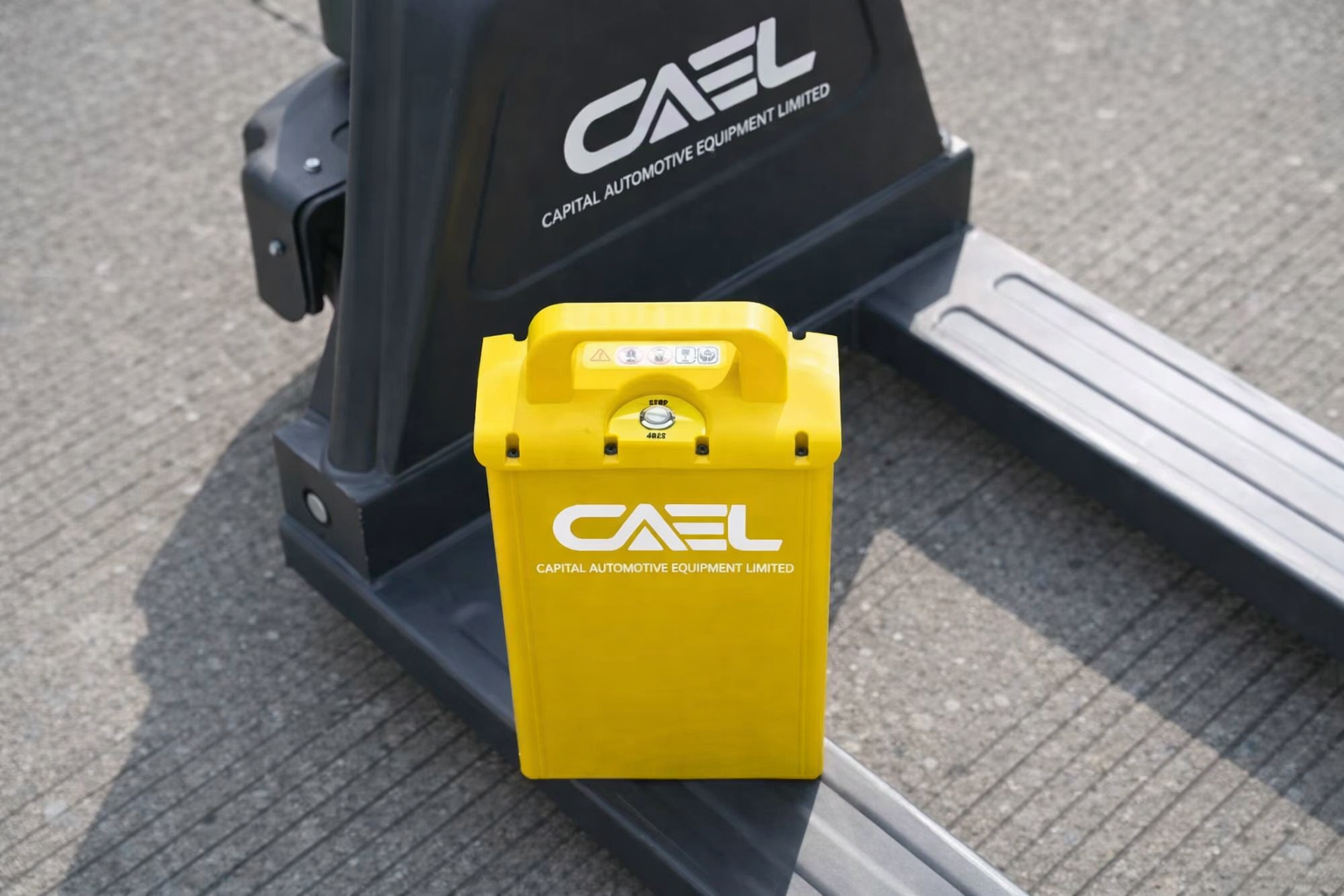

Battery

• 48V / 10Ah Lithium Battery
• Approx. 7 kg / 15.4 lbs

Optional Battery

• 15Ah Upgrade Available

Charger

• 48V / 3A External Charger
• Optional 5A Charger

Controller

• DS1000 Integrated Controller

---

Weight

Service Weight

• Approx. 130 kg / 287 lbs

---

Ideal Applications

✔ Warehouses
✔ Distribution centers
✔ Factories
✔ Loading docks
✔ Retail stockrooms
✔ Daily pallet movement
✔ Heavy-duty material handling

---

Why Choose CAEL Full Electric Pallet Jack?

The CAEL Full Electric Pallet Jack 4400 lbs combines strong lifting power, compact maneuverability, and lithium battery convenience—making it the perfect solution for fast-paced operations needing dependable daily pallet movement.

---

Core Advantages

✔ 4409 lb capacity
✔ Lithium battery powered
✔ Compact narrow aisle design
✔ 20% gradeability
✔ Quiet operation
✔ Smooth electric drive
✔ Warehouse ready

---

Request a Quote

Contact us today for pricing, stock availability, battery upgrade options, and more electric pallet truck models tailored to your operation.
