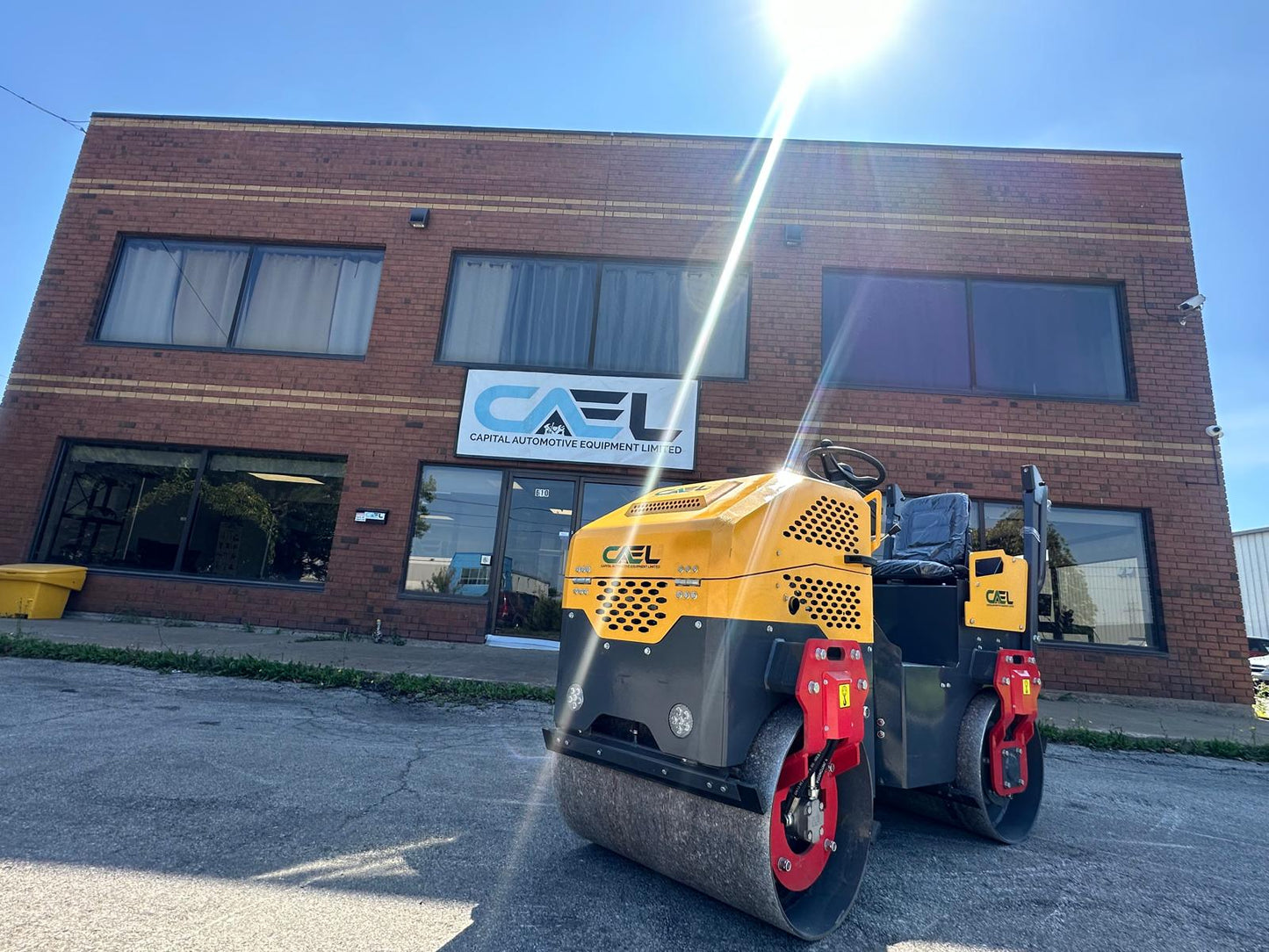

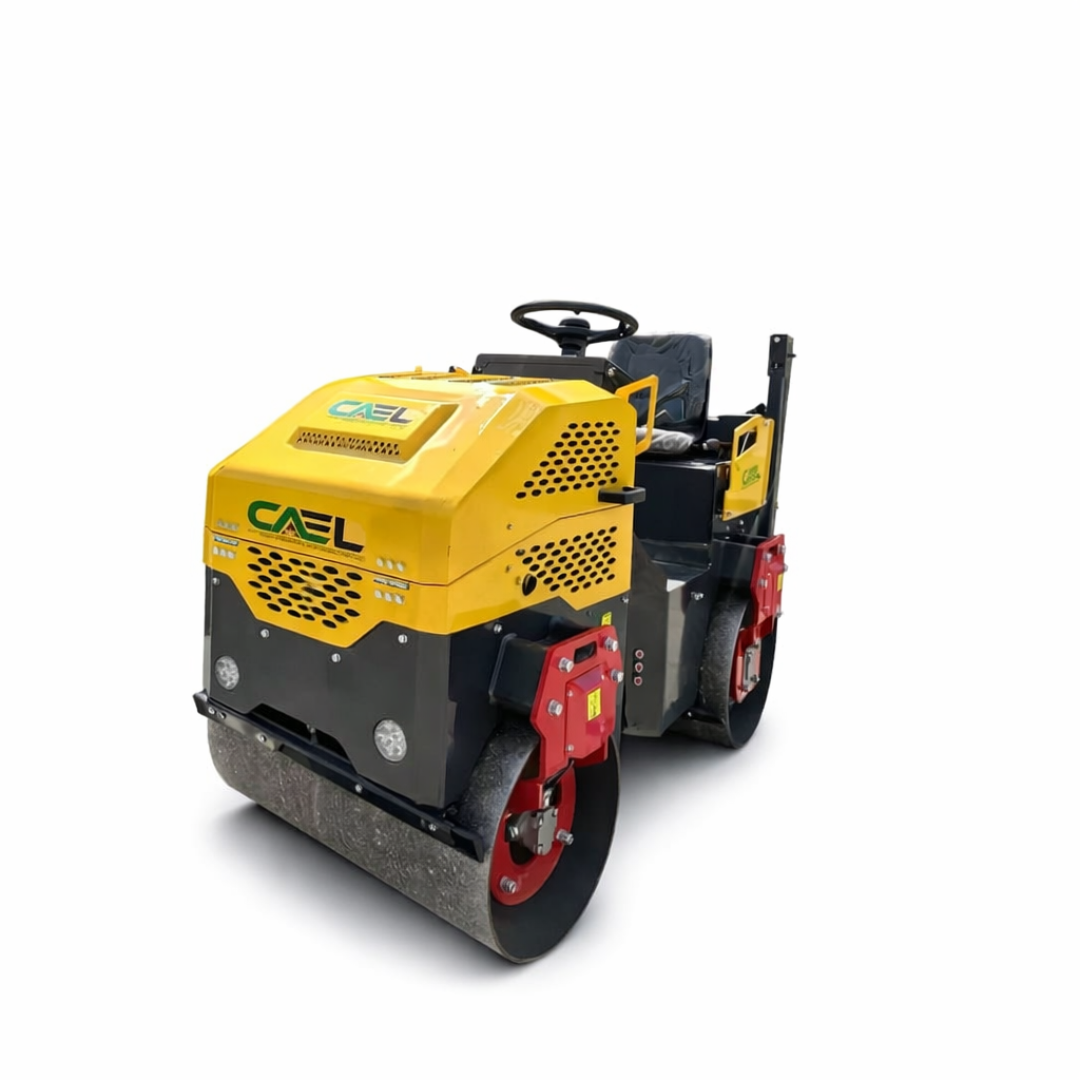

The CAEL Tandem Vibratory Roller is a powerful and durable compaction machine engineered for high-efficiency performance across asphalt, gravel, sand, soil, and other base materials. Designed for municipal road construction and infrastructure projects, it delivers consistent and uniform compaction results.

Equipped with advanced vertical vibration technology and a hydraulic bidirectional drive system, this roller ensures smooth operation, excellent maneuverability, and reliable performance even in demanding working conditions. The tandem drum configuration provides balanced weight distribution for superior surface finishing.

Key Features

• Tandem Drum Design for uniform and stable compaction
• Hydraulic Bidirectional Drive for smooth forward and reverse operation
• High Compaction Efficiency with optimized vibration system
• Compact Turning Radius for easy handling in confined spaces
• Reliable Kubota Engine for consistent performance
• Durable Build Quality ensuring long service life

Specifications

• Brand: CAEL
• Warranty: 1 Year (All Parts)

Weight & Performance

• Operating Weight: 2000 kg (4,409 lbs)
• Static Line Load:
  • Front: 55 N/cm
  • Rear: 66 N/cm
• Exciting Force: 25 kN
• Vibration Frequency: 70 Hz
• Vibration Amplitude: 0.6 mm (0.024 in)

Dimensions

• Package Size (L × W × H):
  2200 × 1200 × 1680 mm
  (86.6 × 47.2 × 66.1 in)
• Minimum Turning Radius:
  1580 mm (62.2 in)

Drum Specifications

• Front Steel Wheel:
  560 × 900 mm
  (22.0 × 35.4 in)
• Rear Steel Wheel:
  560 × 740 mm
  (22.0 × 29.1 in)

Engine & Drive

• Engine Brand: Kubota
• Power Output: 8.2 kW (≈ 11 HP)
• Drive System: Hydraulic bidirectional drive

Travel Performance

• Travel Speed: 0–8 km/h (0–5.0 mph)
• Gradeability: 30%

Capacities

• Water Tank Capacity: 60 L
• Fuel Tank Capacity: 19 L

The CAEL Tandem Vibratory Roller combines power, precision, and reliability, making it an excellent choice for contractors and municipal teams seeking efficient, high-quality compaction across a wide range of applications.
