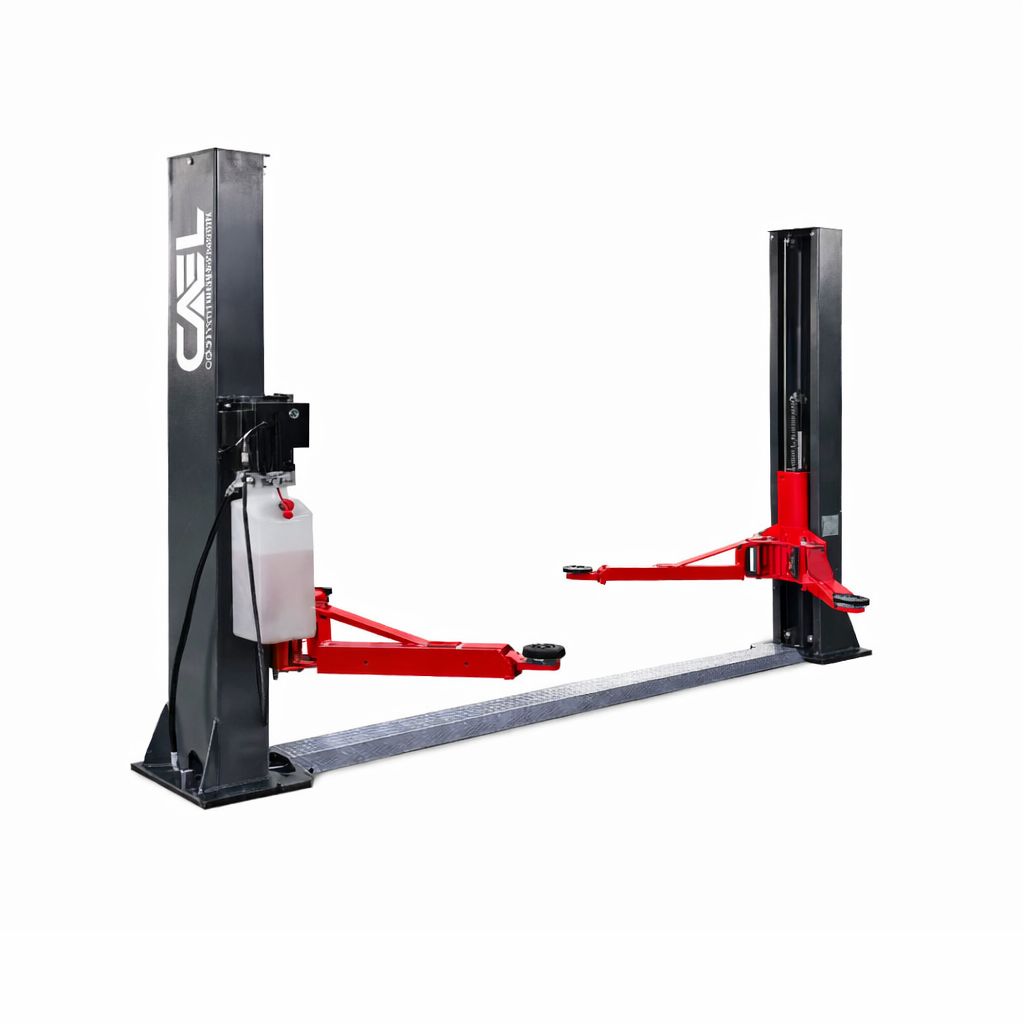

The CAEL HP7 Two-Post Hoist delivers dependable lifting performance with a 7,700 lb (3,500 kg) capacity, making it an excellent solution for automotive repair shops, service centers, and serious home garages servicing passenger vehicles, SUVs, and light trucks.

Its two-post configuration provides outstanding under-vehicle access and open workspace visibility, allowing technicians to perform inspections, maintenance, suspension work, brake service, and repairs efficiently. Built for durability in demanding environments, the HP7 combines strong structural integrity, smooth operation, and practical space-saving design.

Whether you're handling daily servicing or heavier repair jobs, the HP7 offers the stability, safety, and performance professionals rely on.

Key Highlights

7,700 lb (3,500 kg) Lifting Capacity – Ideal for cars, SUVs, pickups, and light commercial vehicles.

Low-Ceiling Compatible – Overall height of 79" (2,002 mm / 6 ft 7 in) suits lower-clearance garages.

Base-Plate Design – Floor-plate configuration ideal where overhead clearance is limited.

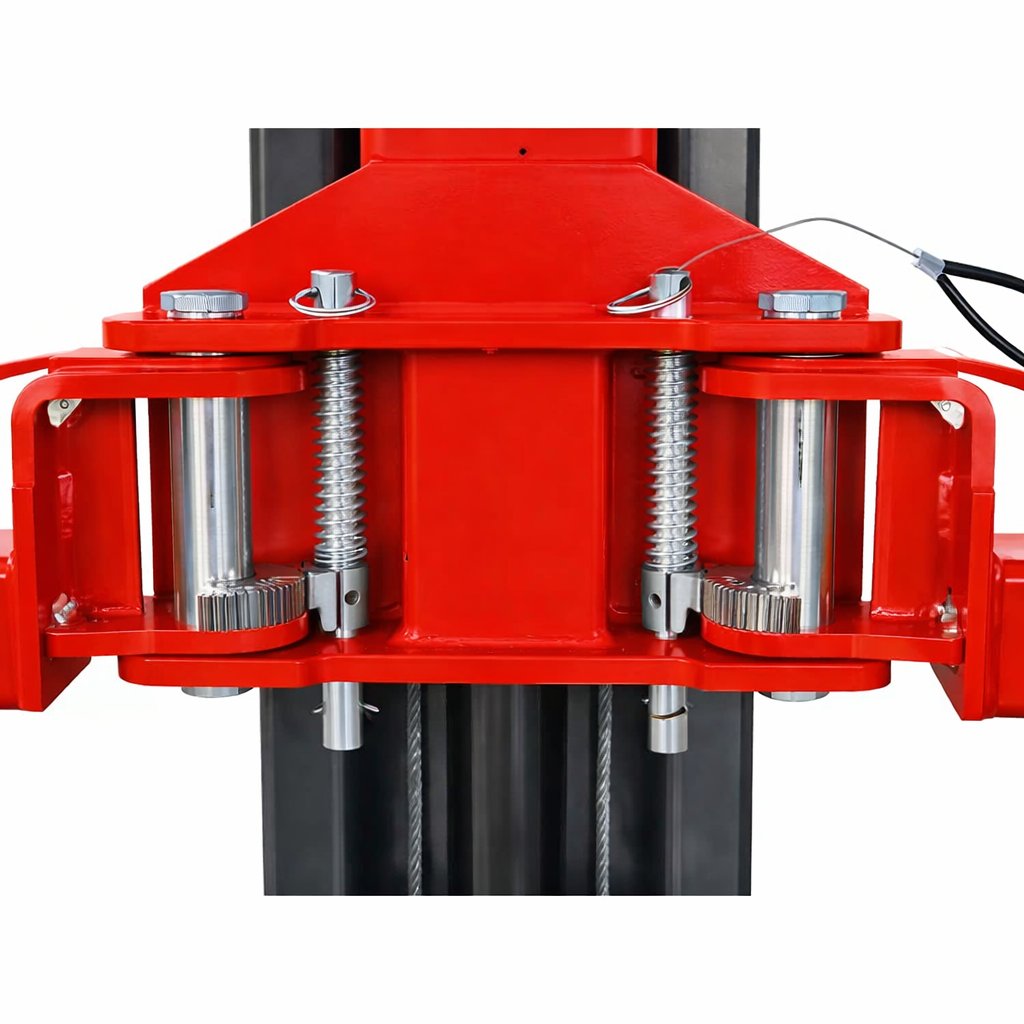

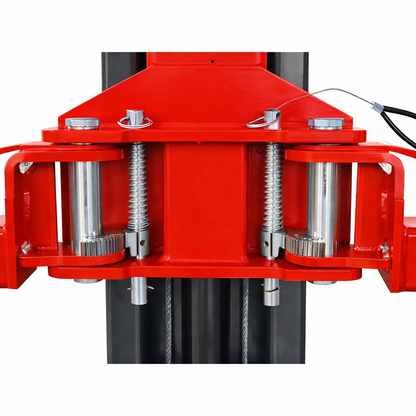

Dual-Point Safety System – Manual safety locks on each post with automatic arm restraints.

CSA Certified Power Unit – Meets Canadian electrical safety standards.

Portable / Flexible Layout – Great for optimizing workshop floor space.

1-Year Parts Warranty – Added confidence and after-sales support.

Technical Specifications

Model: HP7

Lifting Capacity: 7,700 lb (3,500 kg)

Maximum Lifting Height: 59.4" (1,510 mm / 4 ft 11 in)

Overall Height: 79" (2,002 mm / 6 ft 7 in)

Overall Width: 129" (3,280 mm / 10 ft 9 in)

Width Between Posts: 109" (2,770 mm / 9 ft 1 in)

Drive-Through Clearance: 98" (2,480 mm / 8 ft 2 in)

Minimum Pad Height: 4.3" (110 mm)

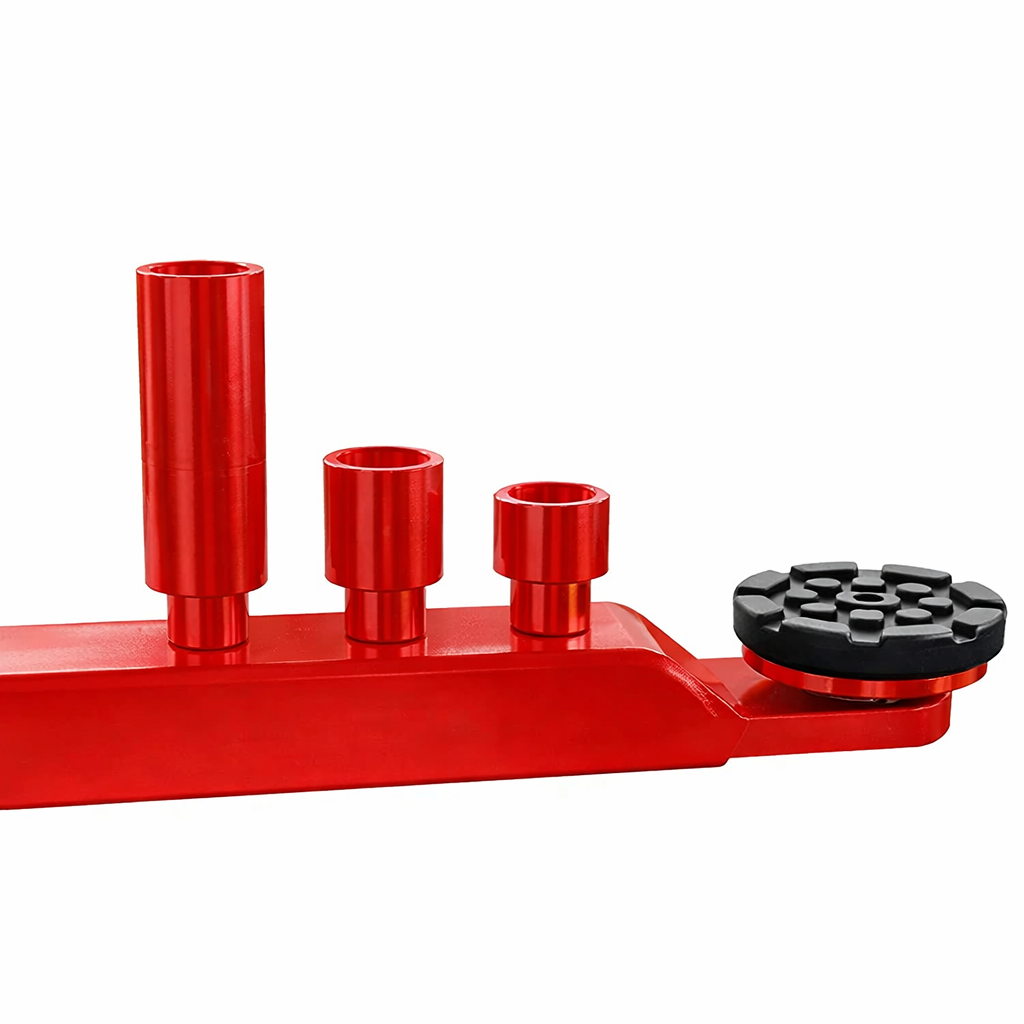

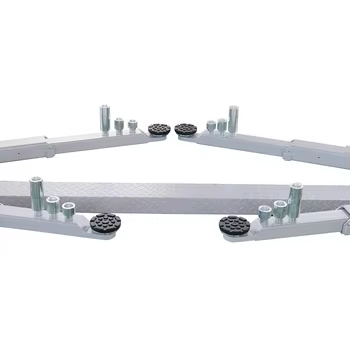

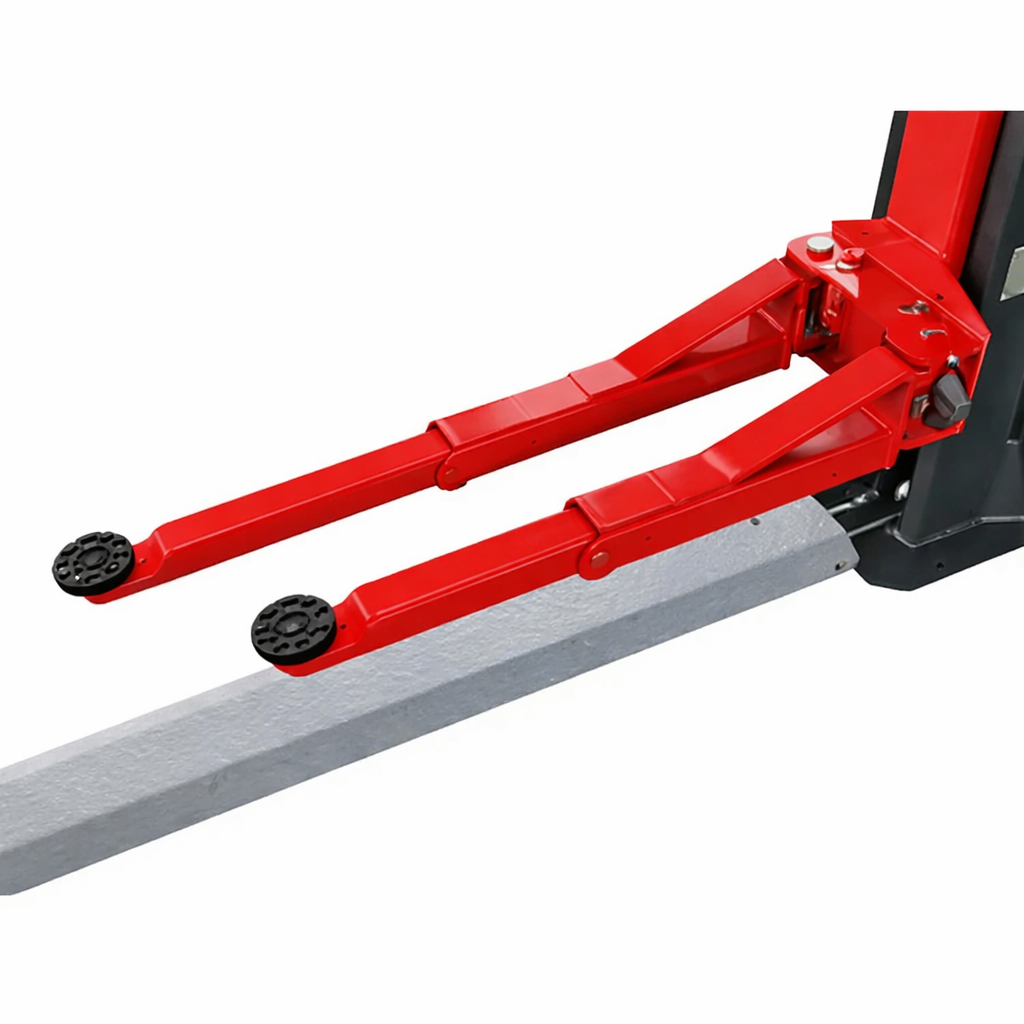

Front Arm Length: 26"–37" (660–945 mm)

Rear Arm Length: 31"–48" (795–1,210 mm)

Lift / Lower Time: Approx. 50 seconds

Noise Level: ≤ 75 dB(A)

Motor: 220V, 1 Phase, 60Hz

Optional Motor: 110V CSA Certified

Finish: Industrial-grade grey powder coat

Reliable 2-Post Performance with Compact Efficiency

The CAEL HP7 is designed for businesses that need reliable lifting performance without requiring excessive ceiling height or large floor space. Its compact footprint and heavy-duty construction make it a practical alternative to larger commercial hoists while still delivering full-service lifting capability.

Perfect for professional shops, fleet maintenance facilities, and premium home garages.

Request a Quote

Contact us today for pricing, stock availability, shipping options, and installation guidance tailored to your facility.
