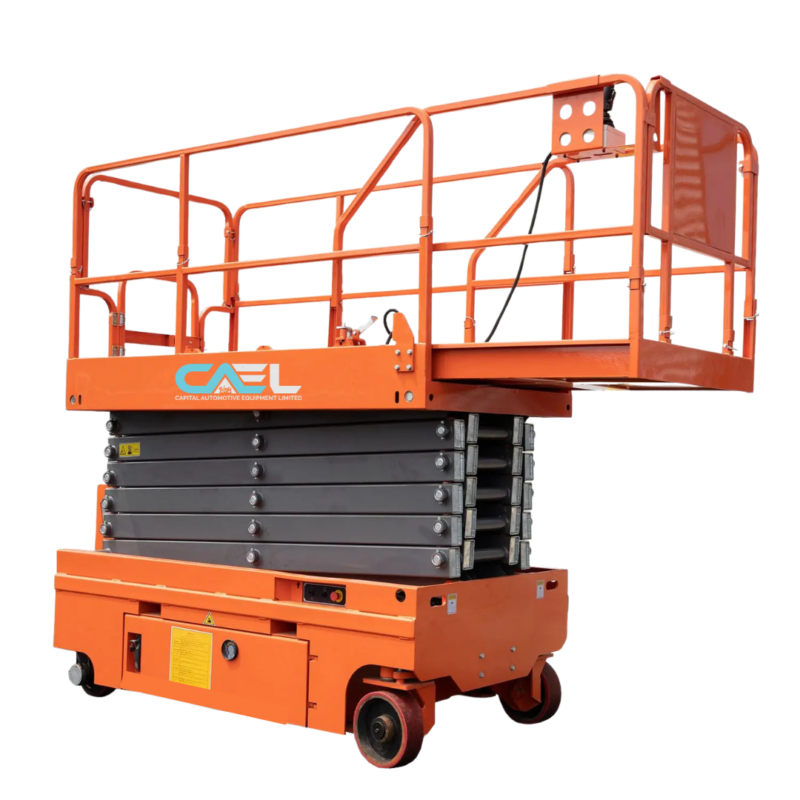

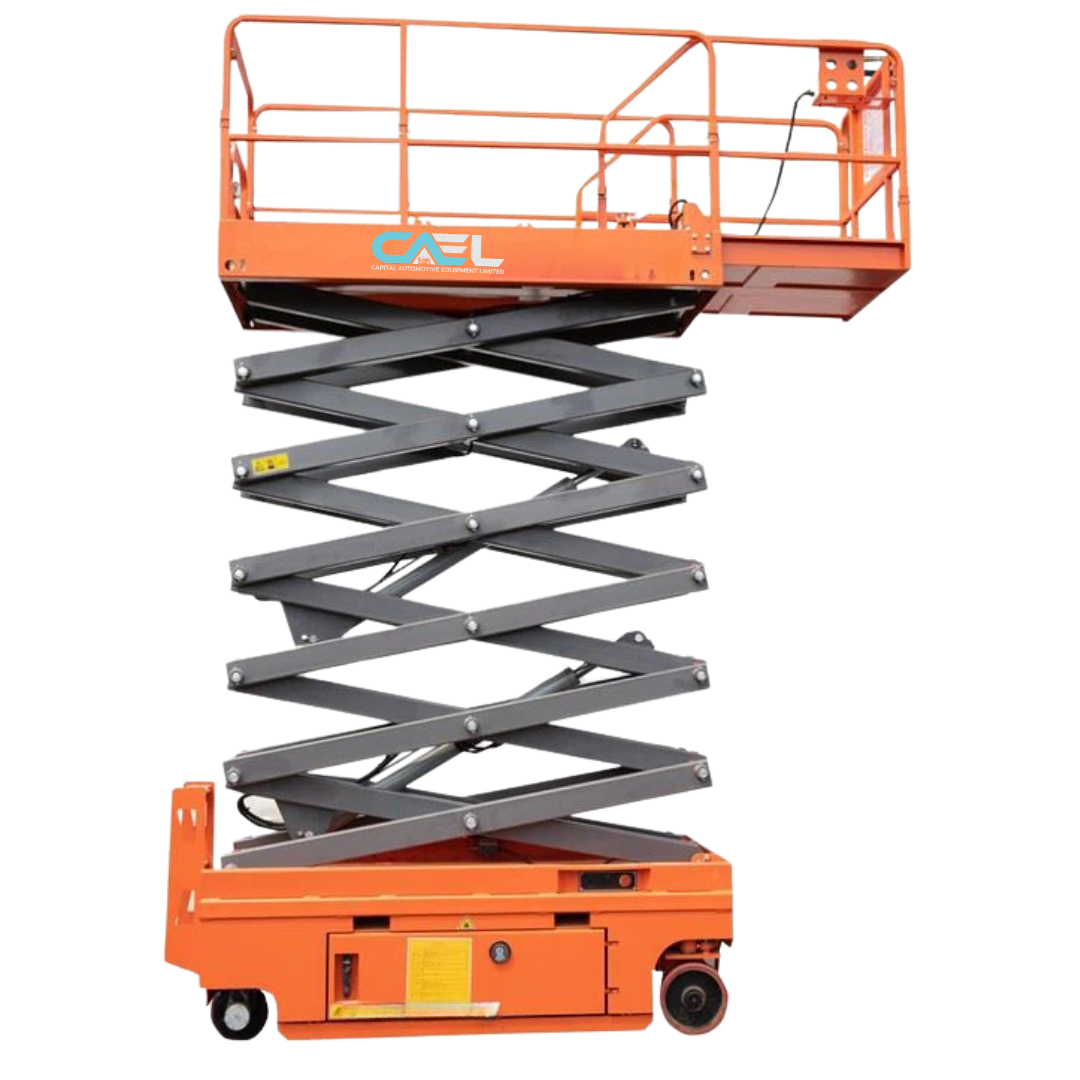

CAEL Self Propelled Scissor Lift- hydraulic electric elevated 8M (26 FT)

CAEL scissor lift is a flexible and portable aerial work platform, ideal for providing efficient access to elevated areas for various tasks. It is widely utilized in construction, maintenance, and other industries requiring work at height. Key features of this scissor lift include easy vehicle towing, quick setup and operation, and the capability to navigate confined spaces and hard-to-reach locations.

Whether you require a scissor lift for occasional tasks or heavy-duty daily operations, our self propelled scissor lift will deliver consistent performance, providing you with 100% satisfaction.

Brand : CAEL

Model: SL8M

Rated loading capacity : 320kg/ 705LBS

Platform height : 10meter/ 32.8FT

Working height : 12meter / 39.3 FT

Extension platform : 113kg/ 249LBS

Platform size : 2.4*1.17*1.1m / 0.09*0.04*0.04 in

Overall dimension: 2.47*1.185*2.64mm / 0.090.04*0.10 in

Extension platform : 0.7m / 2.2FT

Minimum Ground Cle 0.1/0.02m – 0.3/0.06FT

Wheelbase : 1.89m / 6.2FT

Turning Radius (outer2.2m) (outer7.2FT)

Driven motor : 2* 24v/1.1kw

Lifting motor : 24v/3.0kw

Lifting speed : 3-5m/min

Driven speed : 3.5km/h (no rising)

battery : 6V/200Ah

Charger : 24v/25A

Max. Slope up to 25%

wheel size 381*127

Machine weight 2500kg/ 5511LBS
