Description
Materials:
Body:250” structural Q235 roll formed steel durability
Gearbox:Nodular Iron , oil bath gearbox
Blades : Alloy structural steel
Fastener :316 stainess steel
Coating : Backed-on powder coat finish
Key Features:
1-Designed for 25-50HP Tractors ,
2-heavy duty and high impact resistance
3-Adjustable cutting height frpm 1~15mm by both rear roller and skids .
4-Balanced cast iron pulleys
5-comes with reversible hammer blades , Y type blades as option
6-Balanced rotor and shaft to reduce vibration and reduce bearing wear
7-Baked on powder coat finish , anti-corrosion , anti-arrust , anti-static

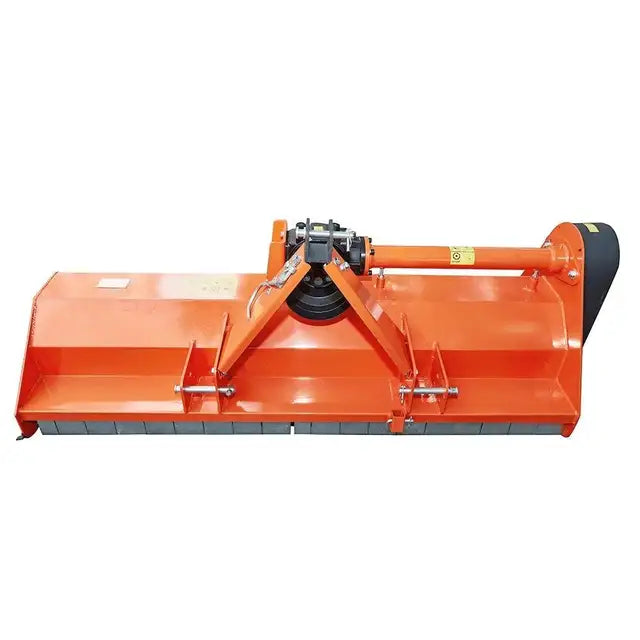

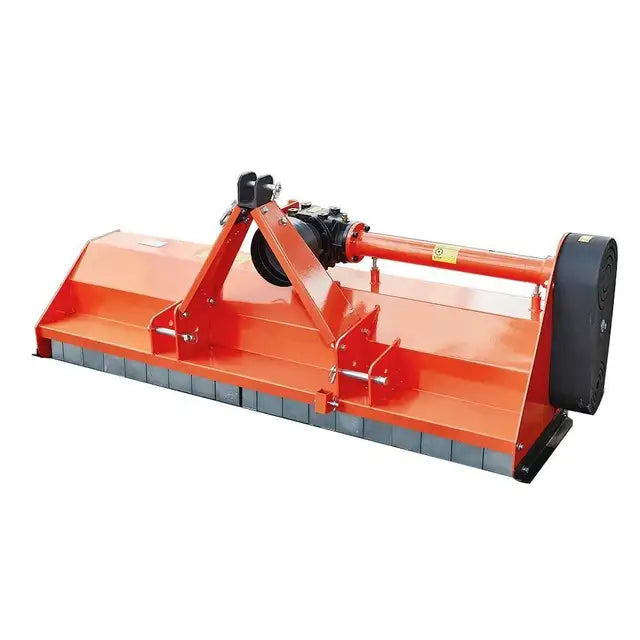

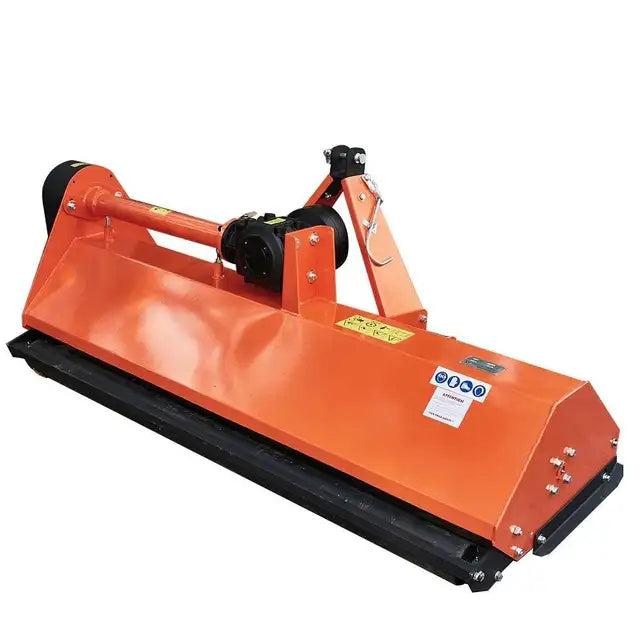

Model : EFG165
Tractor HP:30-40HP
Cutting width:1650 mm / 64.9 inch / 5’41” FT
Tilling Depth:80-120 mm / 3.14 inch-4.72 inch
Hammer Blade Qty : 32 pcs
Y-Type Blades Qty : 64 pcs
PTO Input Speed : 540 r/min
Weight:310 kg /683lbs
Dimension :71”x31”x32”
Package size :72”x35”x27”
